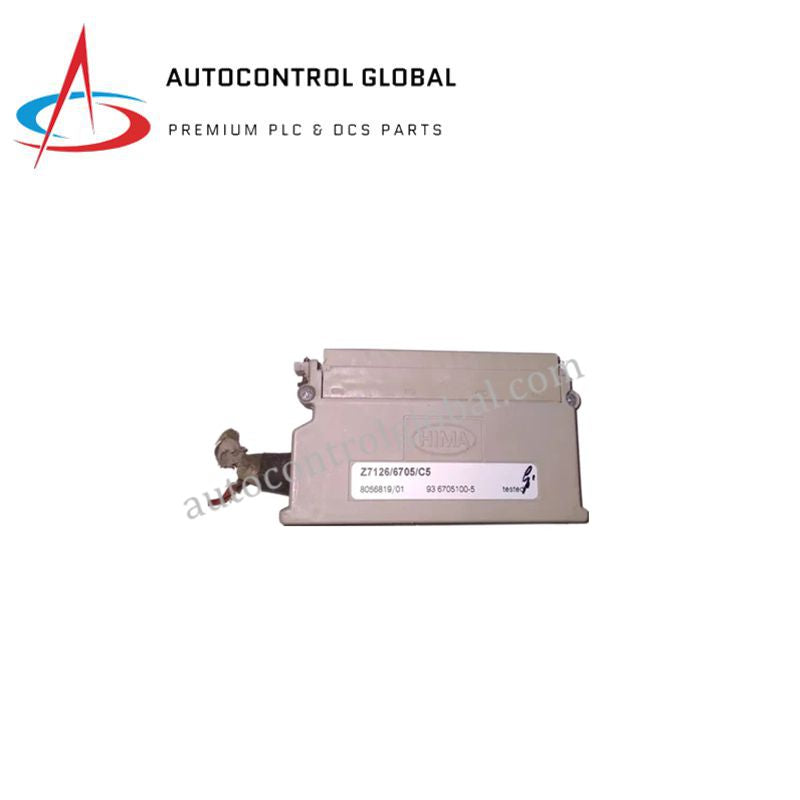

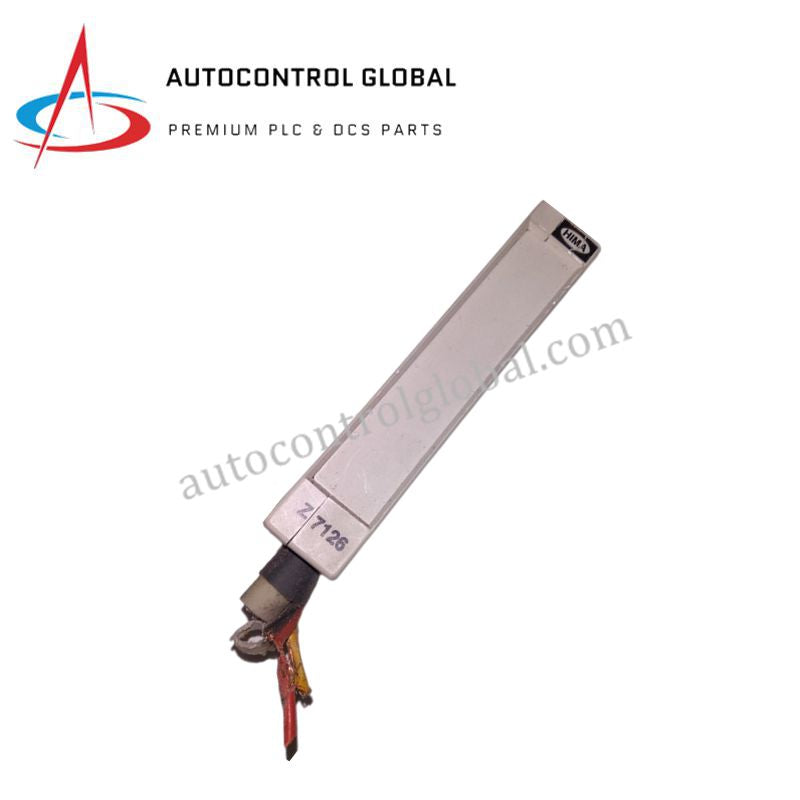

Z7126 Z-7126| HIMA | High-Reliability Automation Module
Manufacturer: HIMA
-
Part Number: Z7126
Condition：New with Original Package
Product Type: High-Reliability Automation Module
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview
The HIMA Z7126 is a high-reliability input/output module designed for HIMA H51q and H41q safety platforms. It provides both digital input and output capabilities, ensuring precise control and monitoring of industrial processes.
Certified to SIL 3, this module is suitable for critical applications in metallurgy, power generation, chemical processing, and environmental monitoring. Its robust design ensures system integrity, reliability, and safety.
Technical Specifications
| Feature | Description |
|---|---|
| Model Number | Z7126 |
| Type | Input/Output Module |
| Functionality | Supports digital inputs and outputs for control and monitoring |
| Input Channels | 16 digital inputs (fail-safe, monitored) |
| Output Channels | 16 digital outputs (configurable, relay or transistor type) |
| Signal Types Supported | Voltage-based digital signals (24 VDC typical) |
| Response Time | Fast switching and detection (<10 ms typical) |
| Communication Interface | HIMA system bus, SafeEthernet |
| Diagnostics | Built-in fault detection, LED indicators, error reporting |
| Power Supply | 24 VDC nominal |
| Operating Temperature | –20°C to +60°C |
| Humidity Range | 5–95% RH, non-condensing |
| Mounting Format | DIN rail or panel mount |
| Dimensions | 100 mm × 100 mm × 50 mm |
| Weight | 0.5 kg |
| Safety Certification | SIL 3 (IEC 61508), TÜV certified |
| Environmental Protection | Resistant to vibration, dust, and industrial contaminants |
| System Compatibility | HIMA H51q/H41q safety systems |
| Condition | Brand-new, original packaging |
| Manufacturer | HIMA |
