Product Description

Overview

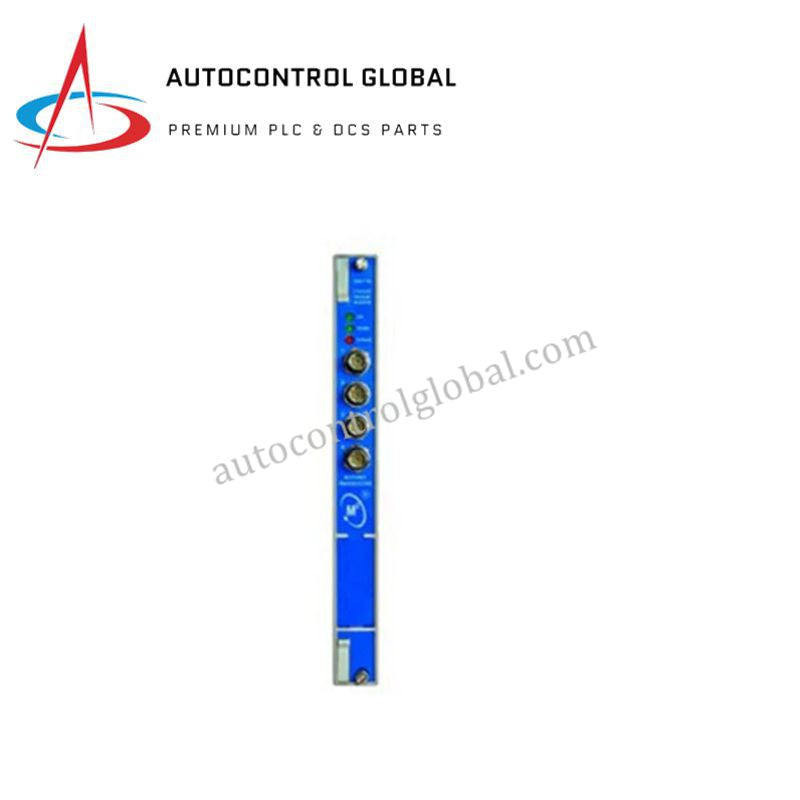

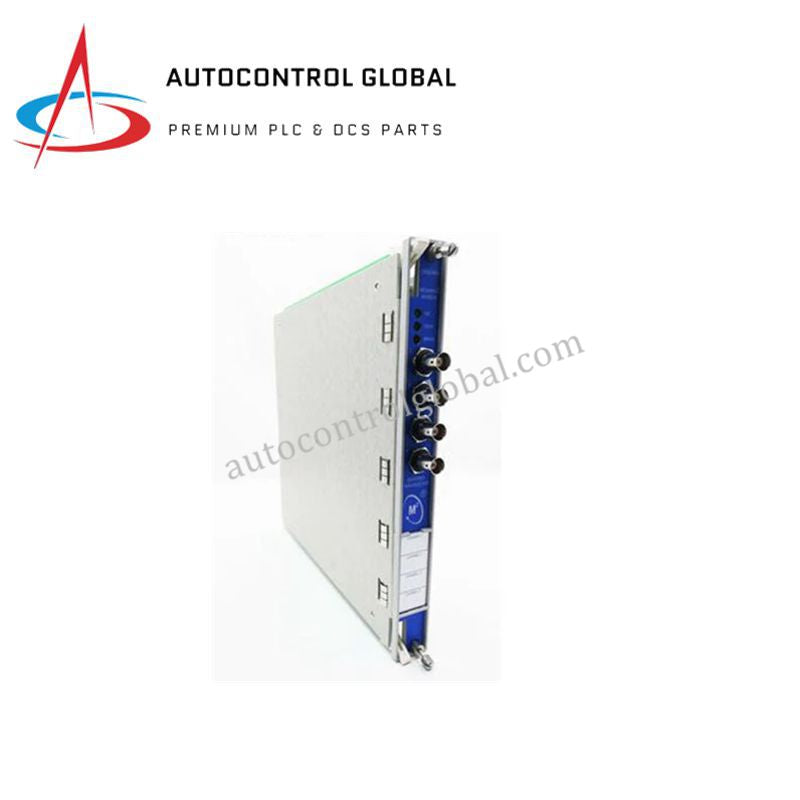

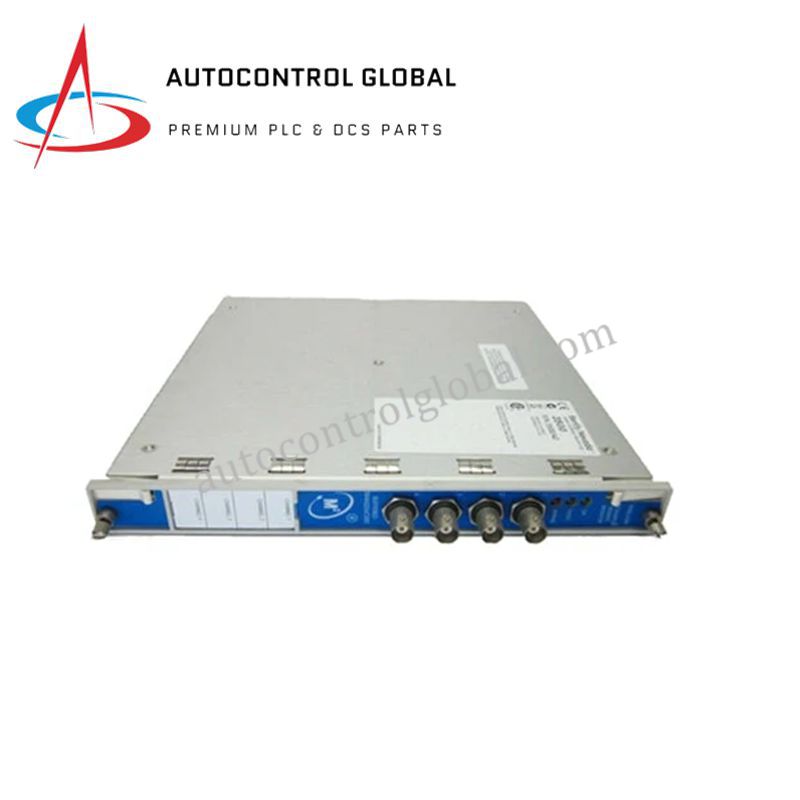

The Bently Nevada 146358‑01 Proximitor Sensor Interface Module is engineered for precision signal conditioning and transmission of proximity probe signals. Moreover, it provides accurate, repeatable vibration and shaft displacement measurements for industrial machinery protection. The module is compact, rack-mounted, and designed for continuous operation in demanding environments.

This interface module converts raw proximity probe signals into scaled, conditioned voltage outputs compatible with the 3500 monitoring rack. In addition, it ensures reliable vibration and position monitoring, allowing predictive maintenance programs to detect early machinery faults. Its robust construction supports long-term performance in turbines, compressors, motors, and pumps.

Technical Specifications

Attribute — Specification
Model Number — 146358‑01
Type — Proximitor Sensor Interface Module
System Compatibility — Bently Nevada 3500 Series Machinery Protection System
Functions — Signal conditioning, scaling, and transmission of proximity probe signals
Input Signal — Compatible with Bently Nevada proximity probes (e.g., 3300 XL series)
Output Signal — Conditioned voltage signal for monitoring rack
Power Supply — Provided via 3500 rack backplane
Mounting — Rack-mounted module
Weight — 820g
Operating Environment — Industrial machinery monitoring systems
Country of Origin — USA
Application Areas — Turbines, compressors, motors, pumps, and other rotating machinery

FAQ

Q1: Which sensors are compatible with this module?
A1: It is compatible with Bently Nevada proximity probes, including the 3300 XL series.

Q2: How is power supplied to the module?
A2: Power is provided through the 3500 rack backplane.

Q3: Can this module operate in harsh industrial environments?
A3: Yes, it is designed for continuous operation in industrial machinery monitoring systems.

Q4: Is it suitable for turbines and compressors?
A4: Yes, it is ideal for vibration and shaft displacement monitoring in turbines, compressors, motors, and pumps.

Q5: Is the installation compatible with existing 3500 racks?
A5: Yes, the module is fully rack-mounted and integrates seamlessly with the 3500 monitoring system.
