Product Description

Overview

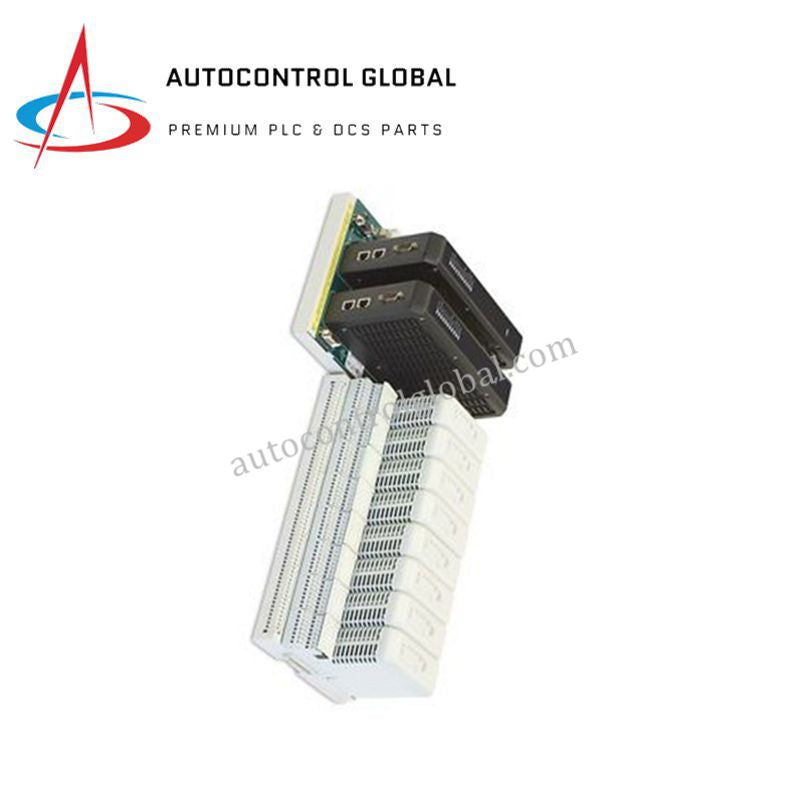

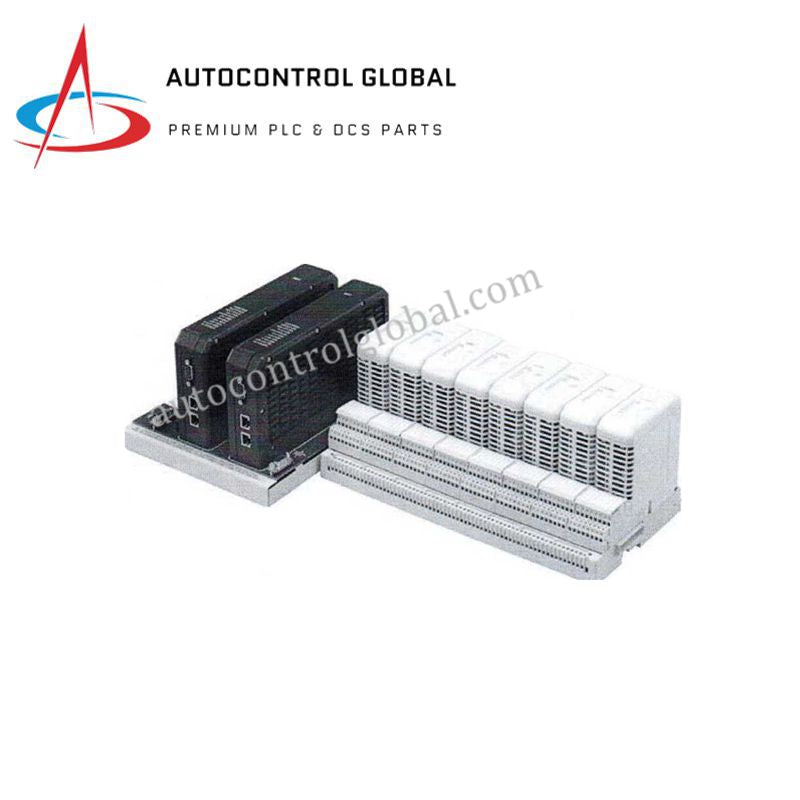

The GE 8710-CA-04 is a compact 4-slot I/O carrier designed for PAC8000 distributed control systems. It provides a stable mechanical and electrical platform for mounting PAC8000 modules in harsh industrial environments. Moreover, its rugged construction and reliable field-power distribution help maintain consistent system performance in demanding process applications. The carrier also supports 64-slot addressing, enabling large automation nodes without complex wiring changes.

Technical Specifications

Module Capacity
• Supports up to 4 PAC8000 I/O modules
• Snap-in design for quick installation and removal

Addressing
• 64-slot addressing for large PAC8000 nodes
• Must not be mixed with 32-slot carriers

Power Distribution
• Bussed Field Power (BFP) connections
• Each BFP point supplies two adjacent modules

Field Wiring & Termination
• Snap-on field terminals for simplified wiring
• Terminals support cable screens and shields

Mechanical Design
• DIN-rail (T-section or G-section) or flat-surface mounting
• Carriers can be linked end-to-end for extended layouts
• Mechanical keying system prevents incorrect module installation

Environmental Ratings
• Suitable for general-purpose and hazardous-area installations
• Rugged housing for industrial applications

Physical Specifications
• Compact carrier footprint for optimized cabinet space
• Weight: 3 kg

FAQ

Q1: How many modules can the 8710-CA-04 support?
A: It supports up to four PAC8000 I/O modules per carrier.

Q2: Can this carrier be mixed with 32-slot carriers?
A: No, it must be used exclusively when 64-slot addressing is required.

Q3: What mounting options are available?
A: It supports DIN-rail or flat-surface mounting for flexible installation.

Q4: Does the carrier simplify wiring?
A: Yes, snap-on field terminals allow quick wiring without additional terminal blocks.

Q5: Is it suitable for hazardous areas?
A: Yes, the design supports applications in hazardous industrial environments.
