900G32-0001 Honeywell | High-Density Digital Output Module
Manufacturer: Honeywell
-
Part Number: 900G32-0001
Condition：New with Original Package
Product Type: High-Density Digital Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

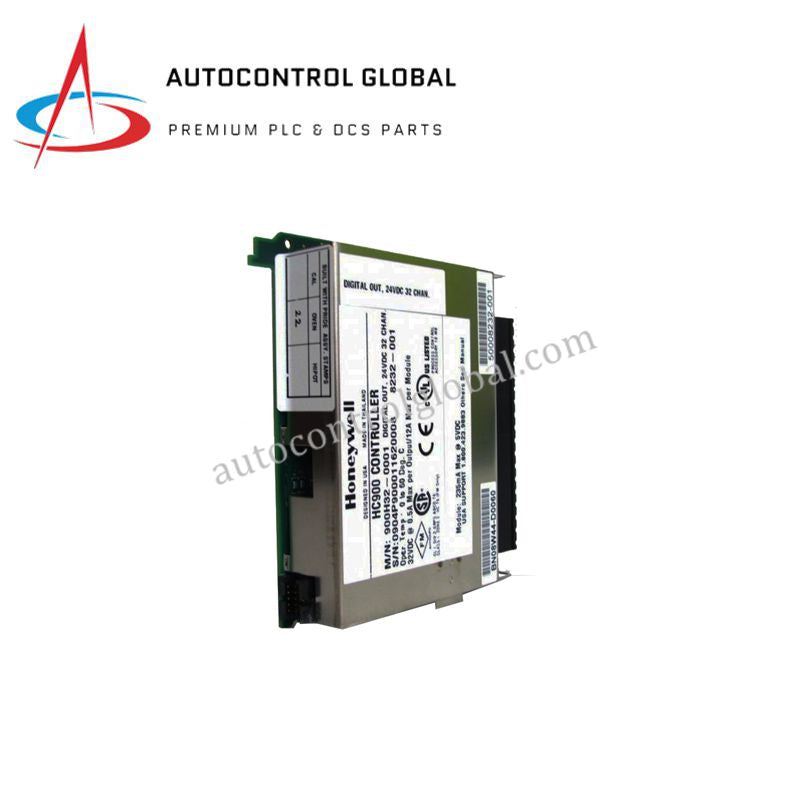

Honeywell 900G32-0001 – Digital Output Module
The Honeywell 900G32-0001 is a 32-channel Digital Output Module engineered for the ControlEdge HC900 hybrid control system. It enables precise real-time actuation of field devices such as solenoids, relays, and motor starters.
With a compact rack-mount design and built-in LED indicators, the 900G32-0001 supports quick diagnostics and reliable integration into automation networks. Each channel delivers up to 0.5 A resistive load at 24 VDC, while built-in overload and surge protection ensure long-term operational stability.
This module combines high channel density, failsafe features, and robust isolation, making it suitable for applications in power generation, chemical processing, pharmaceuticals, and manufacturing automation.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Honeywell |
| Model Number | 900G32-0001 |
| Type | Digital Output Module |
| System Compatibility | Honeywell ControlEdge HC900 |
| Number of Channels | 32 discrete outputs |
| Output Type | Sourcing outputs (24 VDC nominal) |
| Output Voltage Range | 18–30 VDC |
| Max Output Current | 0.5 A per channel (resistive load) |
| Isolation | Channel-to-channel and channel-to-ground |
| Protection Features | Overload protection, surge suppression |
| Status Indicators | LED indicators per channel |
| Failsafe Behavior | Configurable output state on comms loss |
| Mounting Type | Plug-in HC900 rack module |
| Dimensions | 270 × 201 × 150 mm (10.6 × 7.9 × 5.9 in) |
| Weight | 0.90 lbs |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 5 g (20–2000 Hz) |
| Shock Resistance | 30 g, 11 ms pulse |
| Altitude | Up to 24,000 ft (7,315 m) |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: How many output channels does the Honeywell 900G32-0001 provide?
A1: The module supports 32 discrete output channels, ideal for large-scale automation tasks.
Q2: What is the maximum current rating per channel?
A2: Each output channel supports up to 0.5 A for resistive loads.
Q3: Does the 900G32-0001 include protection features?
A3: Yes, it includes overload protection and surge suppression for stable operation.
Q4: What diagnostics are available on the module?
A4: The 900G32-0001 features LED indicators for each channel, allowing quick ON/OFF status checks.
Q5: What is the warranty and delivery time?
A5: The module is brand new and original with a 12-month warranty. We ship within 1–3 working days, with delivery time depending on order size and logistics.
