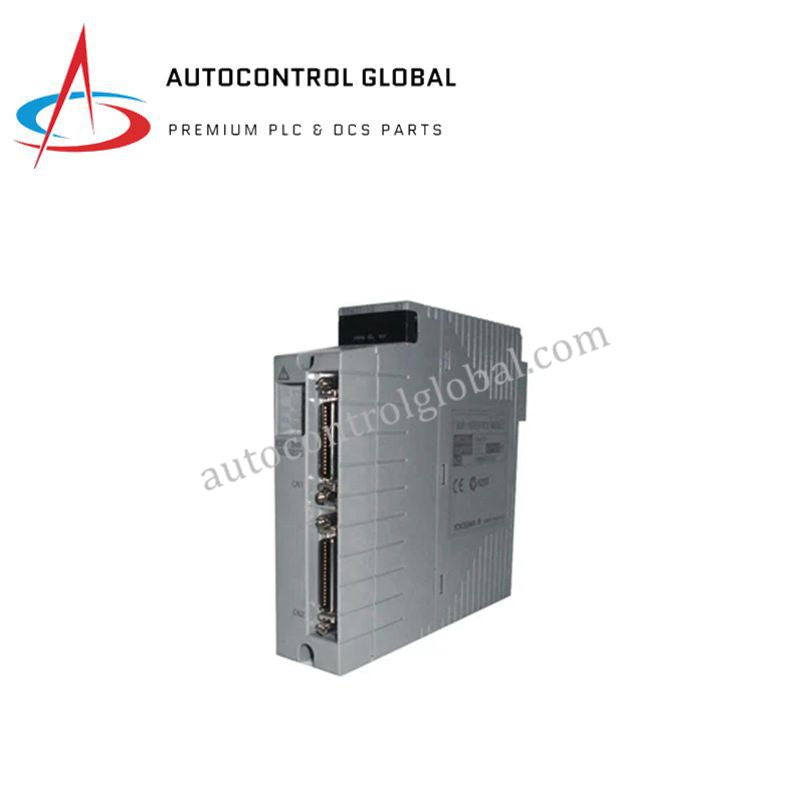

ADV551-P10/ATD5A-00 S2 | Yokogawa Industrial Output Module
Manufacturer: Yokogawa
-
Part Number: ADV551-P10/ATD5A-00 S2
Condition：New with Original Package
Product Type: Digital Output Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Yokogawa ADV551-P10/ATD5A-00 S2 is a high-performance digital output module designed for integration into CENTUM VP distributed control systems. It provides 32 isolated transistor outputs configured as current sink drivers, enabling precise control of solenoids, relays, and other discrete devices.
Engineered for industrial environments, this module supports pulse width modulation and time-proportional output, making it suitable for high-speed digital control applications. Moreover, its dual-redundant configuration enhances system reliability, which is critical in safety-sensitive processes such as chemical manufacturing, power generation, and oil & gas operations.
The module features compact dimensions and robust construction to withstand harsh industrial conditions. Additionally, channel-to-channel isolation ensures reliable operation while minimizing interference between outputs. Its integration with Yokogawa systems guarantees seamless communication and process control.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ADV551-P10/ATD5A-00 S2 |
| Product Type | Digital Output Module |
| Output Channels | 32 isolated channels |
| Output Type | Transistor (current sink) |
| Rated Voltage | 24 V DC |
| Voltage Range | 20.4–26.4 V DC |
| Max On-State Voltage | 2 V DC |
| Max Off-State Leakage | 0.1 mA |
| Max Load Current | 100 mA per channel @ 26.4 V DC |
| Response Time | ≤3 milliseconds |
| Functions Supported | Pulse width output, time-proportional output |
| Isolation | Channel-to-channel and system isolation |
| Dimensions | 107.5 mm × 130 mm × 32.8 mm |
| Weight | 0.26 kg |
| Condition | New and original |
| Country of Origin | Japan |
| Certifications | COO (Certificate of Origin), Test Report |
| Shipping Partners | DHL, UPS, TNT, FedEx, EMS |
| Lead Time | Typically 1–3 business days |
FAQ
Q1: How many output channels does the ADV551-P10/ATD5A-00 S2 support?
A1: It provides 32 isolated transistor output channels for digital control.
Q2: What output functions are supported?
A2: The module supports pulse width modulation and time-proportional output.
Q3: Is it compatible with CENTUM VP systems?
A3: Yes, it integrates seamlessly into CENTUM VP distributed control systems.
Q4: What is the response time for outputs?
A4: The response time is ≤3 milliseconds for all channels.
Q5: Does the module support dual-redundant configuration?
A5: Yes, dual-redundant configurations are supported for enhanced reliability.
