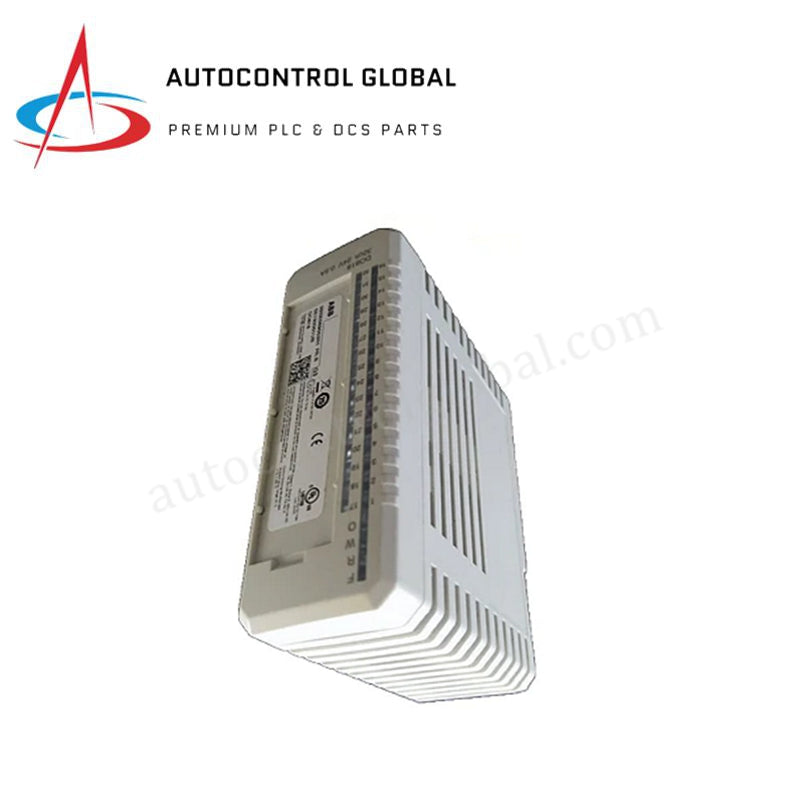

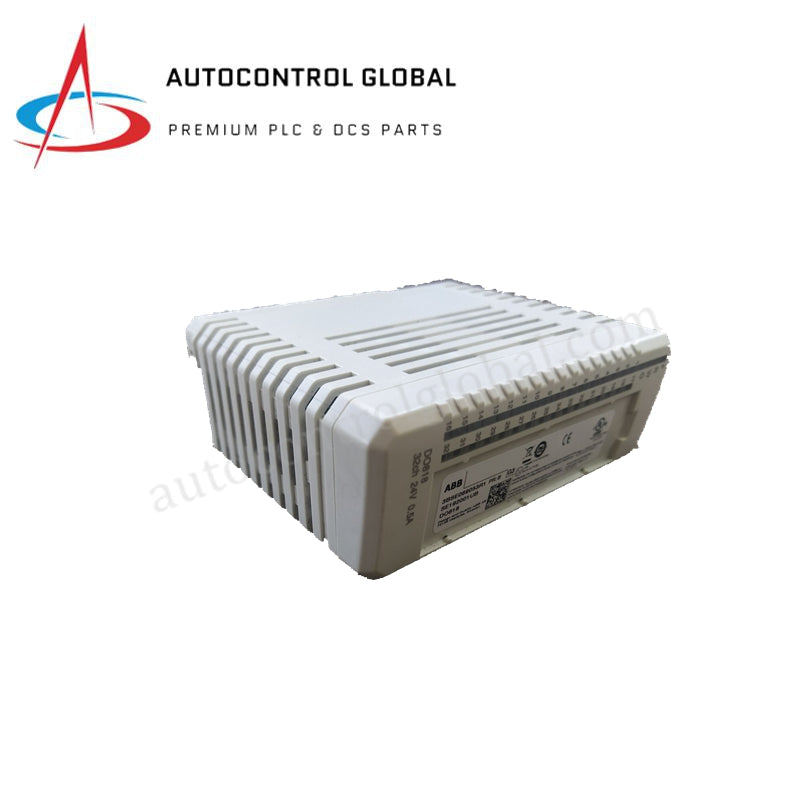

AI830A S800 I/O 8-Channel RTD Unit | ABB AI830A 3BSE040662R1

Product Description

The AI830A (Part Number: 3BSE040662R1) is a high-precision analog input module designed for the ABB S800 I/O system, specifically engineered for Resistance Temperature Detector (RTD) measurements. Unlike standard voltage/current modules, the AI830A provides direct interfacing for 3-wire RTD sensors, offering onboard linearization and high-resolution A/D conversion for accurate temperature monitoring in critical industrial processes.

This module features 8 differential input channels, each capable of supporting various RTD types such as Pt100, Cu10, and Ni120. The AI830A 3BSE040662R1 is designed for robustness, providing a rated isolation voltage of 50V and a compact form factor that integrates seamlessly into ABB AC 800M controllers via Module Termination Units (MTUs). Its high-speed processing and 14-bit resolution ensure deterministic data acquisition, making it a standard choice for thermal monitoring in power generation, oil and gas, and chemical processing facilities.

Detailed Technical Specifications

The AI830A delivers technical precision through integrated signal conditioning and interference rejection.

• Manufacturer: ABB

• Model Designation: AI830A

• Part Number: 3BSE040662R1

• Product Type: Analog Input Module (RTD)

• Number of Channels: 8 Differential Channels

• Supported Sensors: Pt100, Pt1000, Ni100, Ni120, Cu10 (3-wire connection)

• A/D Resolution: 14 bits

• Rated Isolation Voltage: 50 V

• Power Dissipation: 1.6 W (Maximum)

• Input Impedance: > 10 MΩ

• Accuracy: ±0.1% of span (Typical for Pt100)

• Mains Frequency Rejection: 50 Hz or 60 Hz (Software configurable)

• Temperature Range: Operating -20°C to +60°C; Storage -40°C to +85°C

• Dimensions: 11.9 cm x 4.5 cm x 10.2 cm

• Weight: 0.2 kg (Module net); 2.0 kg (Shipping weight)

• Compatible MTUs: TU810, TU812, TU814, TU830, TU833

• Certifications: CE, UL, RoHS, G3 Conformal Coating compliant
