Product Description

Overview

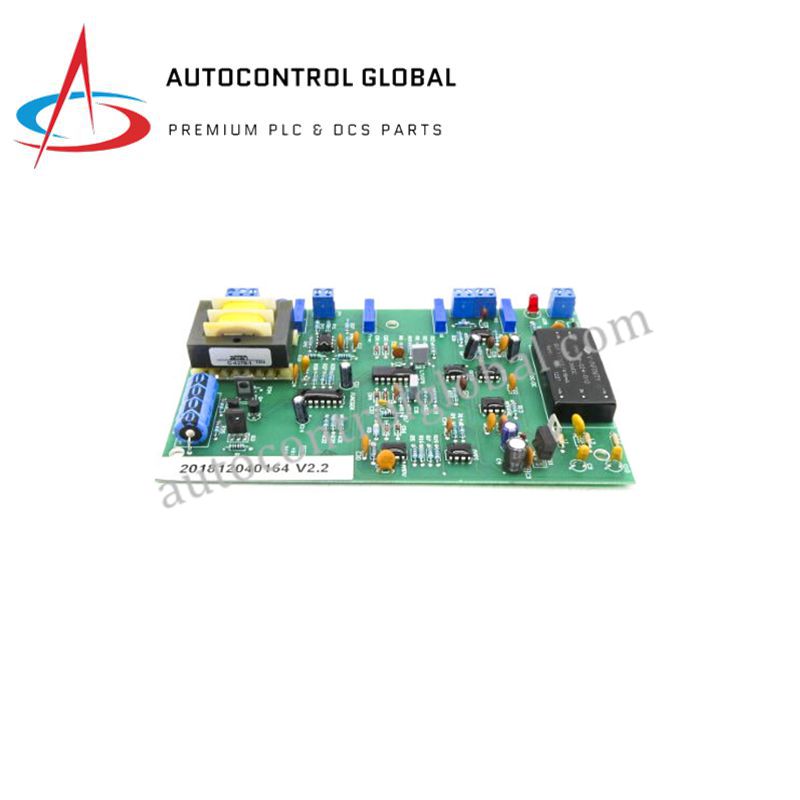

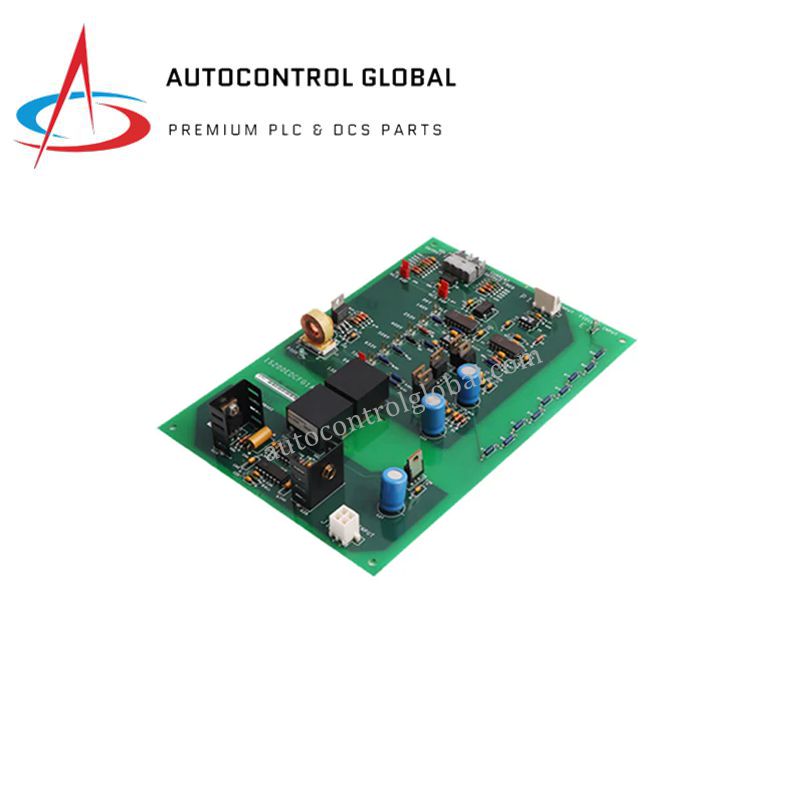

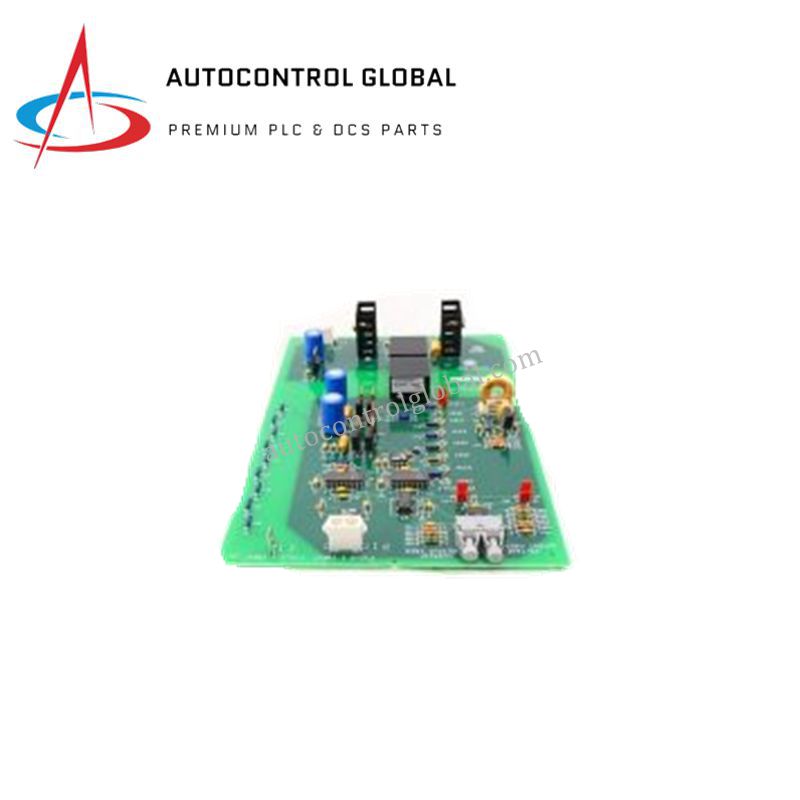

The GE DSC200SHVIG1BHD is a high-voltage interface board designed for the Mark V Turbine Control System. It provides precise control, robust communication, and safe high-voltage interfacing for industrial automation. Moreover, its rugged and compact design ensures reliable performance in harsh turbine and substation environments.

Technical Specifications

Electrical & Communication
• Input voltage: 24 VDC
• Communication protocols: Modbus TCP/IP and compatible industrial standards
• I/O ports: Multiple channels for high-voltage interfacing

Physical Specifications
• Dimensions: 100 × 80 × 20 mm
• Weight: 0.5–2.0 kg
• Compact, rugged housing for extreme environments

Environmental Ratings
• Operating temperature: –40 °C to +70 °C
• Humidity: 5–95% non-condensing
• Designed for harsh industrial conditions

Diagnostics & Maintenance
• Built-in fault detection and self-diagnostic functions
• Real-time monitoring of equipment status
• Hot-swappable module design for easy replacement and maintenance

FAQ

Q1: What is the main function of the DSC200SHVIG1BHD?
A: It provides safe high-voltage interfacing and control for turbine automation systems.

Q2: Which communication protocols are supported?
A: Modbus TCP/IP and other industrial standards are fully supported.

Q3: Can this module operate in harsh environments?
A: Yes, it operates from –40 °C to +70 °C with rugged housing for extreme conditions.

Q4: Is maintenance difficult for this board?
A: No, its hot-swappable design simplifies replacement and system servicing.

Q5: Which turbine systems is this compatible with?
A: It is designed for GE Mark V gas, steam, and wind turbine control systems.
