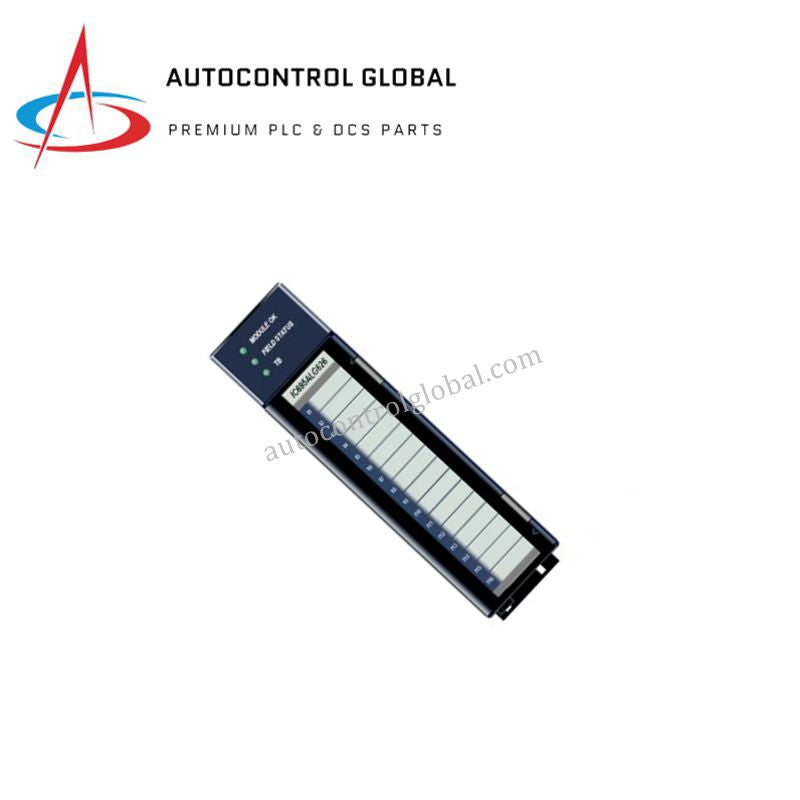

IC694ALG390 | GE Fanuc Analog Output Module with -10V to +10V Range

Product Description

The GE Fanuc IC694ALG390 is an Analog Output Module designed for industrial automation systems, particularly for the PACSystems RX3i platform. This module provides precise voltage outputs for controlling actuators, drives, valves, and other analog devices. With two isolated output channels, it offers a voltage range from -10 V to +10 V, ensuring versatile integration in a wide range of control systems.

Built with 13-bit resolution and an impressive update speed of 5 ms per channel, the IC694ALG390 delivers high-precision control. The module is equipped with advanced diagnostics and monitoring features, including alarms and fault detection, making it suitable for critical applications requiring high reliability and minimal downtime.

Its hot-swappable design ensures quick and easy installation and replacement in RX3i racks, making it an ideal solution for automation systems in industrial settings. Certified for hazardous and marine environments, the module can withstand tough conditions, ensuring reliability and safety in sectors such as manufacturing, energy, and process industries.

Technical Specifications

Electrical Specifications:

• Output Channels: 2 isolated analog voltage outputs

• Output Range: -10 V to +10 V

• Resolution: 13-bit

• Update Speed: 5 ms per channel

Power Requirements:

• 5 VDC: 32 mA

• 24 VDC: 120 mA

Isolation:

• Channel-to-channel isolation for enhanced reliability and noise immunity

Diagnostics & Monitoring:

• High/low alarms

• Ramp rate control

• Clamping

• Overrange/underrange detection

• LED indicators for module and channel status

Physical Specifications:

• Weight: 1.06 lbs (0.48 kg)

• Mounting: Compatible with RX3i rack-based systems

• Design: Hot-swappable

Environmental Ratings:

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5–95% non-condensing

Certifications & Approvals:

• UL, UL HAZLOC, CE, ATEX C1D2

• Marine approvals: ABS, BV, DNV, GL, KRS, LR

FAQ

1. What is the GE Fanuc IC694ALG390 used for?

The IC694ALG390 is an analog output module used to generate precise voltage signals for controlling actuators, drives, and valves in industrial automation systems.

2. What is the voltage range of the IC694ALG390?

This module provides a voltage output range of -10 V to +10 V across two isolated channels.

3. How fast is the update speed for the IC694ALG390?

The IC694ALG390 has an update speed of 5 ms per channel, making it ideal for real-time control and monitoring applications.

4. Is the IC694ALG390 suitable for hazardous environments?

Yes, the IC694ALG390 is certified for hazardous environments with UL HAZLOC, ATEX C1D2, and marine approvals (ABS, BV, DNV, GL, KRS, LR), ensuring its reliability and safety.

5. Can the IC694ALG390 be easily replaced?

Yes, the IC694ALG390 features a hot-swappable design, allowing for easy installation and maintenance without disrupting system operations.
