MC-TAMR03 Honeywell | Analog Multiplexer for Experion PKS
Manufacturer: Honeywell
-
Part Number: 51304481-100
Condition：New with Original Package
Product Type: Analog Multiplexer for Experion PKS
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

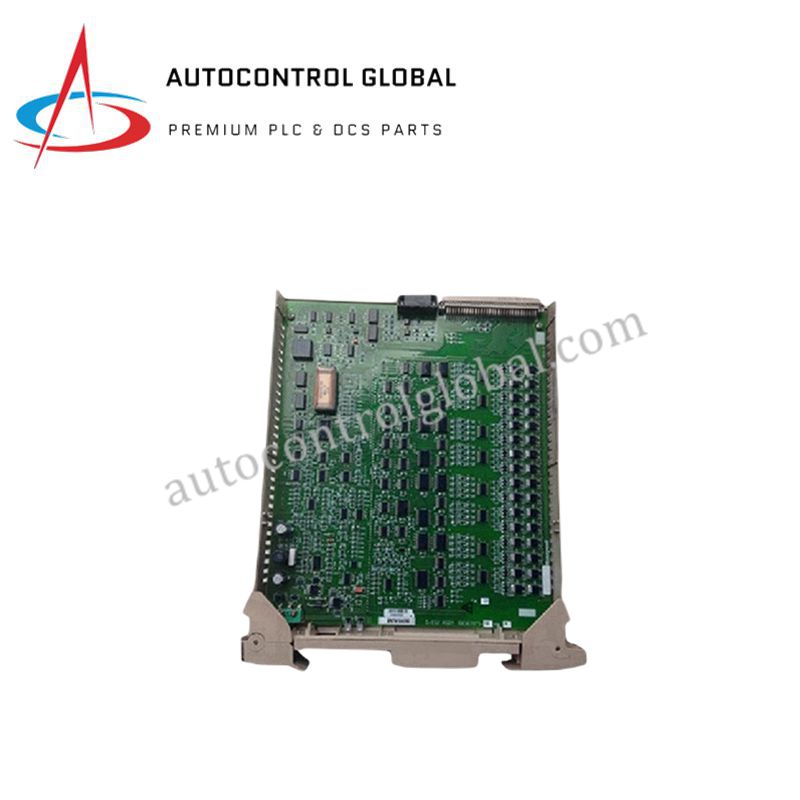

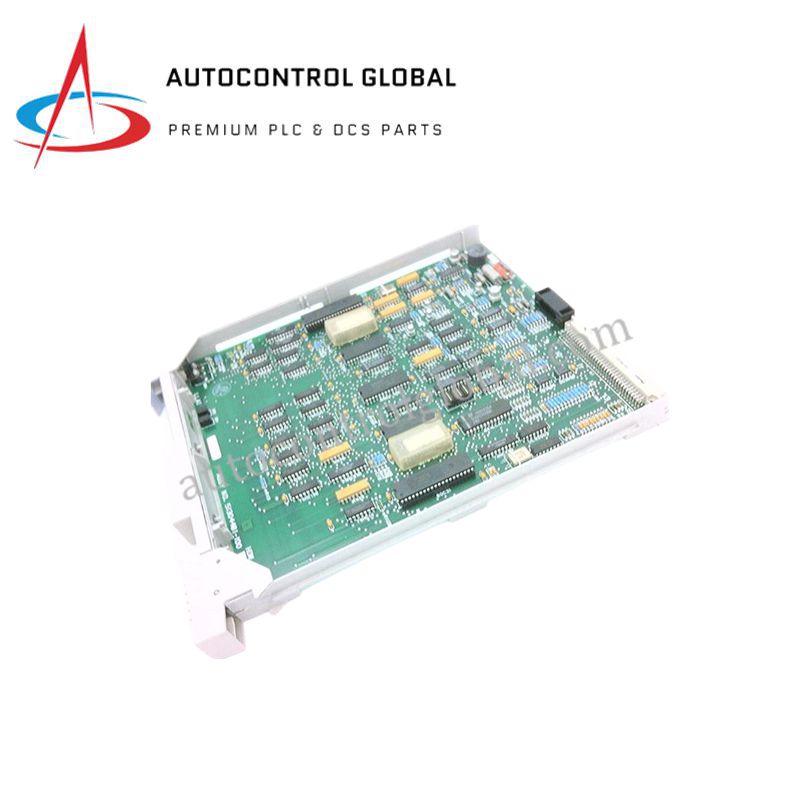

The HONEYWELL 51304481-100, also identified as MC-TAMR03, is an Analog Multiplexer Module for Honeywell’s TDC 3000 and Experion PKS distributed control systems. It consolidates multiple analog input signals into a single channel, ensuring efficient I/O utilization and reducing hardware footprint. With high input impedance, robust isolation, and precise multiplexing, the 51304481-100 delivers excellent signal fidelity for large-scale industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304481-100 |
| Alternate Part Number | MC-TAMR03 |
| Function | Analog signal multiplexing |
| Channel Capacity | 8–16 analog input channels (configurable) |
| Signal Type | 4–20 mA, 0–10 V |
| Input Impedance | High input impedance, minimizes signal loading |
| Multiplexing | Time-division multiplexing with fast switching |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-system |
| Power Supply | 24 VDC via system backplane |
| Mounting | Plug-in module for Honeywell chassis |
| Operating Temp. | −20°C to +70°C |
| Storage Temp. | −40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Compliance | CE certified, industrial EMC and safety standards |
| Diagnostics | Built-in status indicators and fault reporting |
| Weight | 1.0 lbs (0.45 kg) |
| Applications | Process plants, multi-sensor acquisition, I/O optimization |
FAQ
Q1: What is the function of the 51304481-100 (MC-TAMR03) module?
A1: It multiplexes several analog input signals into a single processing channel.
Q2: How many channels can the module handle?
A2: It supports 8 to 16 analog input channels, depending on system configuration.
Q3: What type of analog signals are supported?
A3: The module processes 4–20 mA current loops and 0–10 V voltage signals.
Q4: Does the module provide signal isolation?
A4: Yes, it offers channel-to-channel and channel-to-system isolation for noise immunity.
Q5: How is the power supplied to the module?
A5: It receives 24 VDC power directly from the Honeywell system backplane.
Q6: What is the availability and warranty policy?
A6: All units are new and original. Stock ships in 3–14 days via DHL, with a 30-day return guarantee for quality issues.
