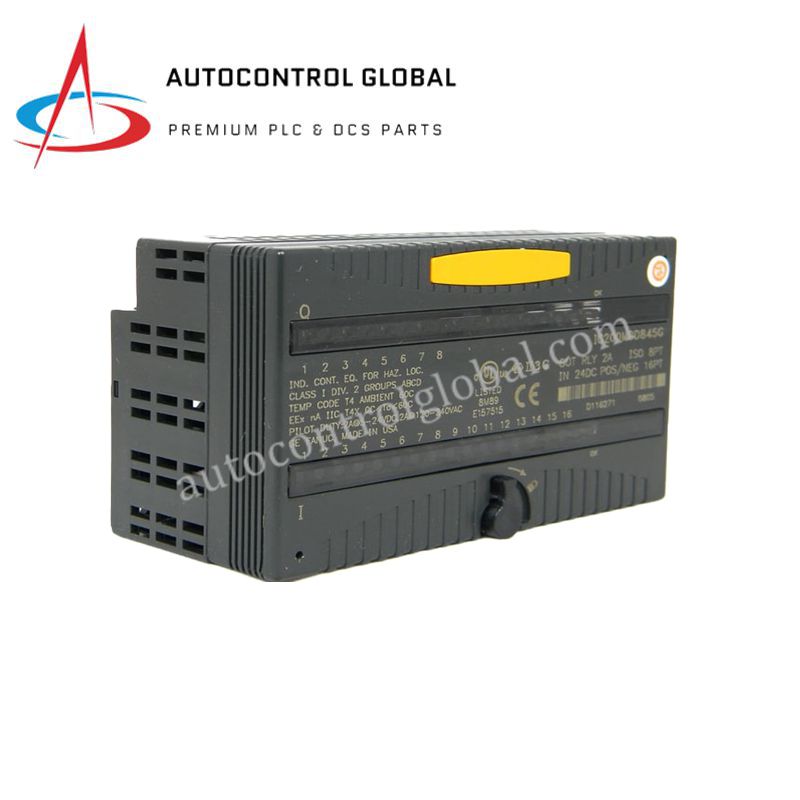

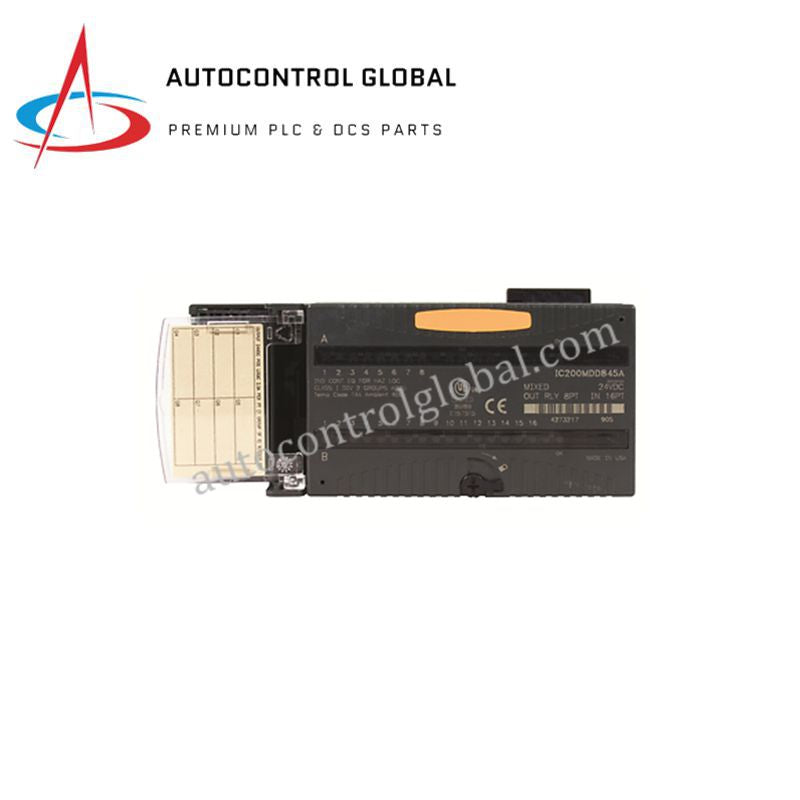

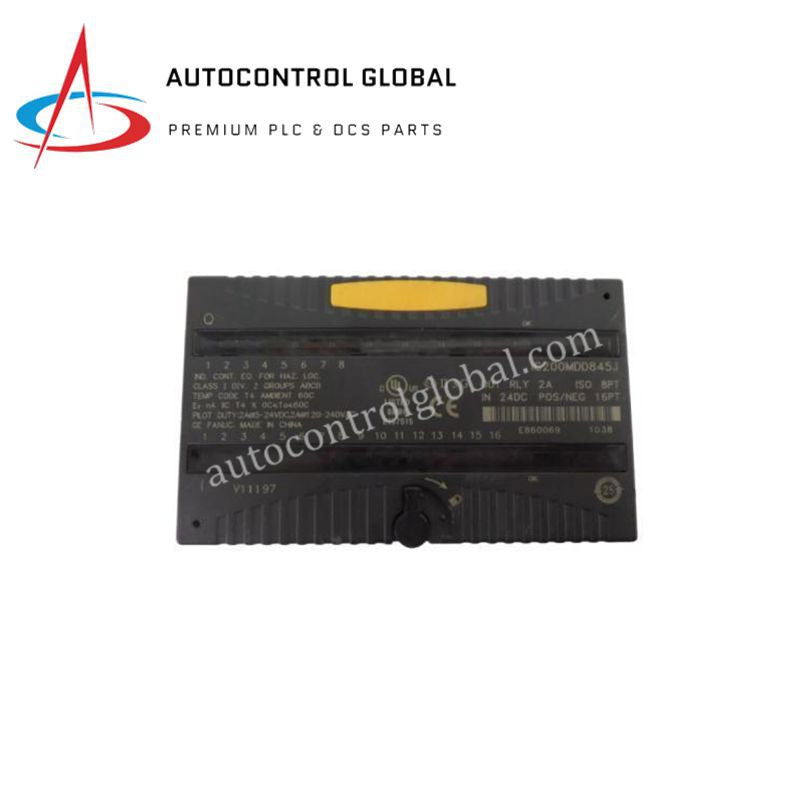

GE Fanuc IC200MDD845 Mixed Input/Output Relay Module

Product Summary

The GE Fanuc IC200MDD845 module provides a practical combination of 16 digital inputs and 8 relay outputs for VersaMax PLC systems. Its mixed-signal design helps engineers reduce panel space while simplifying overall wiring. Moreover, the module supports a wide range of AC and DC loads, making it suitable for diverse industrial environments. Its durable construction and reliable isolation ensure long-term stability in demanding automation applications.

Technical Specifications

General
• Manufacturer: GE Fanuc (Emerson Automation)
• Model Number: IC200MDD845
• Product Type: Mixed Discrete I/O Module
• Series: VersaMax I/O
• Status: Discontinued (new units still available)

Input Channels
• 16 digital inputs
• Voltage: 24 VDC nominal
• Logic: positive logic
• Input current: 2.0–5.5 mA ON, 0–0.5 mA OFF

Output Channels
• 8 relay outputs, Form A
• Rated current: 2.0 A per point
• Voltage ranges:
– 5–30 VDC (2.0 A resistive)
– 31–125 VDC (0.2 A resistive)
– 5–265 VAC (2.0 A resistive)

Isolation
• 1500 V isolation between field circuits and logic circuits
• Outputs individually isolated

Indicators
• LED indicators for each input and output
• OK LED for module health

Power & Physical
• Backplane consumption: 270 mA @ 5 VDC
• Dimensions: 133.4 × 85.9 × 69.1 mm
• Weight: 0.159 kg
• Mounting: DIN rail or panel

Environmental
• Operating: 0 °C to +60 °C
• Storage: –40 °C to +85 °C
• Humidity: 5–95% non-condensing

Additional Sales Information
• Category: PLCs / Machine Control
• Subcategory: PLC Module / Rack
• Shipping Weight: 0.60 lbs

FAQ

1. What PLC platform is the IC200MDD845 designed for?
It is designed for GE Fanuc VersaMax PLC systems.

2. Can the relay outputs handle AC and DC loads?
Yes, the outputs support a wide voltage range across both AC and DC circuits.

3. Are the relay outputs individually isolated?
Yes, each relay channel offers individual isolation to improve safety.

4. Is this module still in production?
No, it is discontinued, but new-in-box units remain available for maintenance needs.

5. Does the module include LED indicators?
Yes, each input and output channel includes its own LED indicator.
