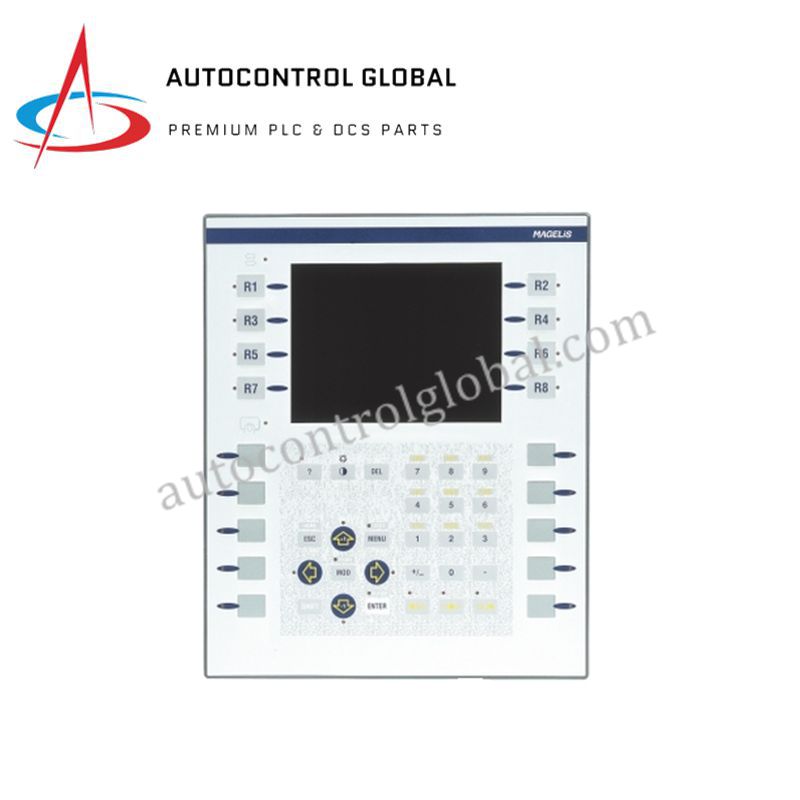

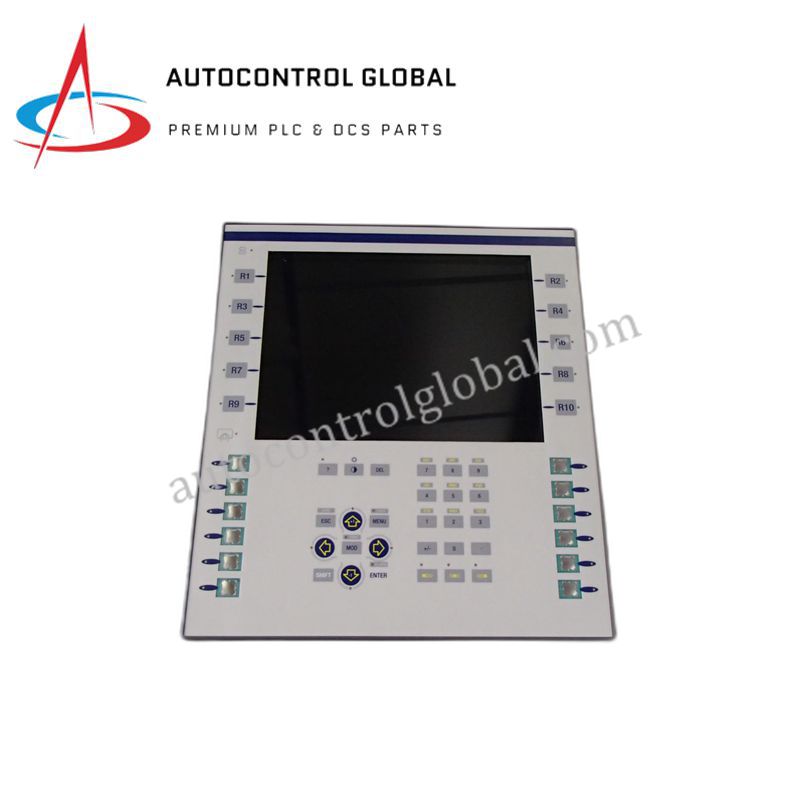

Schneider XBTF024610 | Touchscreen Operator Interface Panel

Product Overview

The Schneider Electric XBTF024610 is a 10-inch graphical operator terminal designed for seamless integration into industrial automation systems. Part of the Magelis XBTF series, this HMI (Human-Machine Interface) terminal provides intuitive, high-resolution visualization and control of industrial processes. Although it has been discontinued as of September 5, 2022, the XBTF024610 remains a valuable option for operators in existing systems, offering essential features like Modbus, Uni-Telway, and Modbus TCP/IP protocols.

Technical Specifications

• Model: XBTF024610

• Manufacturer: Schneider Electric

• Product Type: Touchscreen HMI Terminal

• Display Size: 10-inch color LCD

• Resolution: 640 × 480 pixels (VGA)

• Colors: 256 or 65,536 colors (depending on configuration)

• Touchscreen Type: Analog resistive

• Processor: Embedded RISC processor

• Memory: Internal flash memory (expandable with CompactFlash)

• Interfaces:

• RS232/RS485 serial ports

• Ethernet (depending on version)

• Communication Protocols:

• Modbus, Modbus TCP/IP, Uni-Telway, Schneider PLC protocols

• Power Supply: 24 V DC

• Power Consumption: 20–25 W

• Dimensions: 298 × 228 × 60 mm

• Weight: 2.8–3.0 kg

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Humidity Range: 10–90% RH (non-condensing)

• Mounting: Panel mounting

• Certifications: CE, UL, CSA

FAQ

What is the display size of the Schneider XBTF024610?
The XBTF024610 features a 10-inch color LCD display with a resolution of 640 × 480 pixels (VGA).

What communication protocols does the Schneider XBTF024610 support?
The XBTF024610 supports Modbus, Modbus TCP/IP, Uni-Telway, and other Schneider PLC protocols for seamless integration with various systems.

What is the protection rating for the XBTF024610?
The XBTF024610 has an IP20 protection rating, which provides protection against dust and vibration in industrial environments.

Is the Schneider XBTF024610 still available?
The XBTF024610 has been discontinued as of September 5, 2022, and is no longer available as a new unit.

What is the operating temperature range for the Schneider XBTF024610?
The XBTF024610 operates within a temperature range of 0°C to +50°C.
