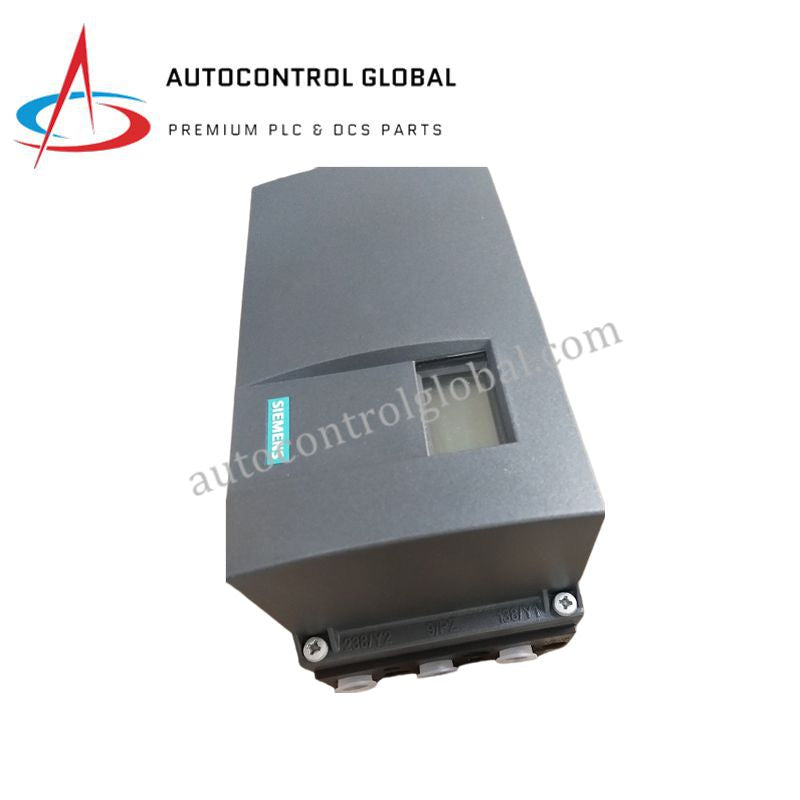

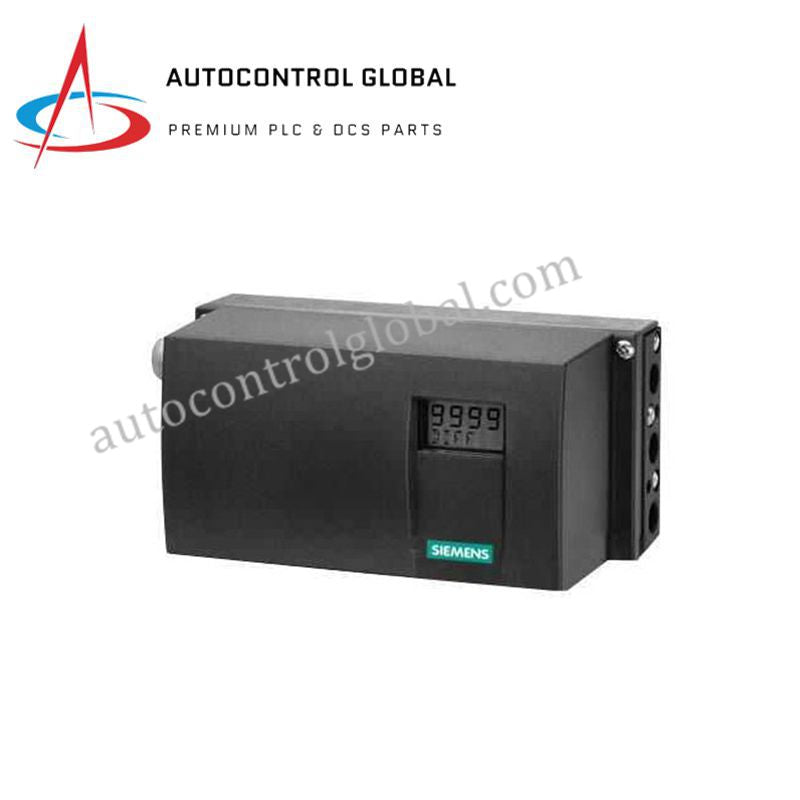

Siemens 6DR5120-0NG00-0AA0 PS2 Smart Positioner for Process Automation

Product Description

The Siemens 6DR5120-0NG00-0AA0 SIPART PS2 is a smart electropneumatic positioner designed for precise control of pneumatic linear and rotary actuators.
It operates on a 2-wire, 4…20 mA control signal and supports single-action actuators for standard industrial environments.
The polycarbonate enclosure provides durability while maintaining a lightweight profile, allowing easy installation in compact spaces.
Moreover, the SIPART PS2 series incorporates self-calibration and diagnostic functions, ensuring accurate valve positioning with minimal maintenance.
Fail-safe depressurization protects the actuator in case of auxiliary power failure, enhancing operational safety in process automation applications.
Its intelligent design makes it a cost-effective solution for industries requiring reliable control of flow, pressure, temperature, or level.

Technical Specifications

• Manufacturer: Siemens

• Model Number: 6DR5120-0NG00-0AA0

• Product Type: SIPART PS2 Smart Electropneumatic Positioner

• Actuator Types: Pneumatic linear and rotary (part-turn)

• Signal Type: 2-wire, 4…20 mA

• Control Mode: Single action

• Enclosure Material: Polycarbonate

• Explosion Protection: None

• Electrical Connection Thread: M20 × 1.5

• Pneumatic Connection Thread: G 1/4

• Fail-Safe Function: Depressurizes actuator if auxiliary power fails

• Mounting: Direct on actuator or via lever set

• Operating Temperature: -20 … +80 °C

• Air Supply Pressure: 1.4 … 6 bar

• Air Consumption: 0.03–0.06 Nm³/h

• Weight: 1.9 kg

• Compliance: IEC automation standards, CE approvals

FAQ

What type of actuators does the 6DR5120-0NG00-0AA0 support?
It supports pneumatic linear and rotary (part-turn) actuators.

Is it explosion-proof?
No, this model is intended for standard industrial environments.

What input signal is required for operation?
The positioner operates on a 2-wire, 4…20 mA signal.

Does it provide fail-safe operation?
Yes, it depressurizes the actuator if auxiliary power fails.

Can it be installed on existing valves?
Yes, it mounts directly or via a lever set compatible with SIPART PS2.
