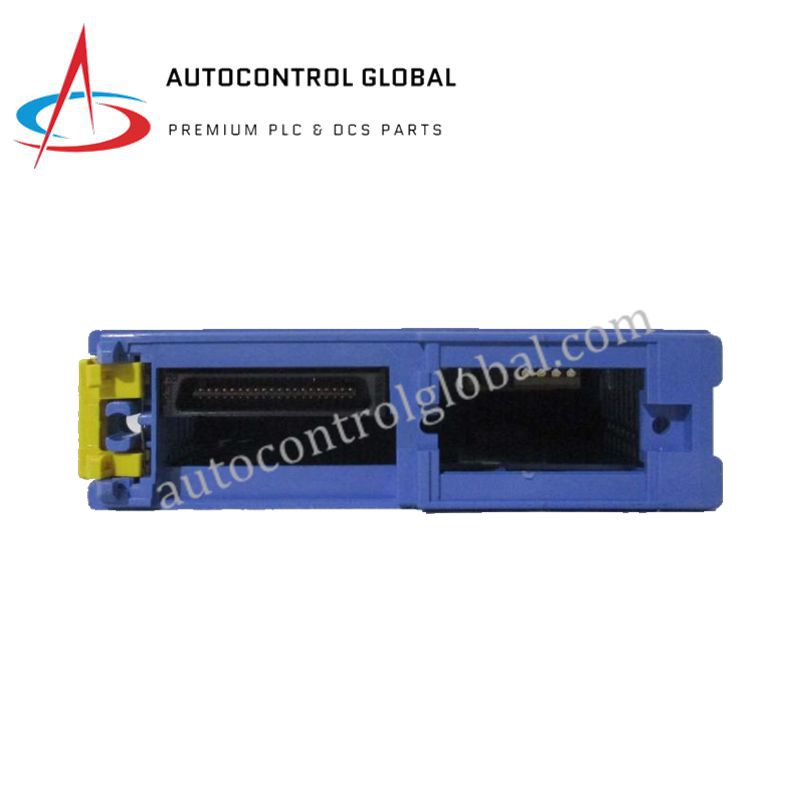

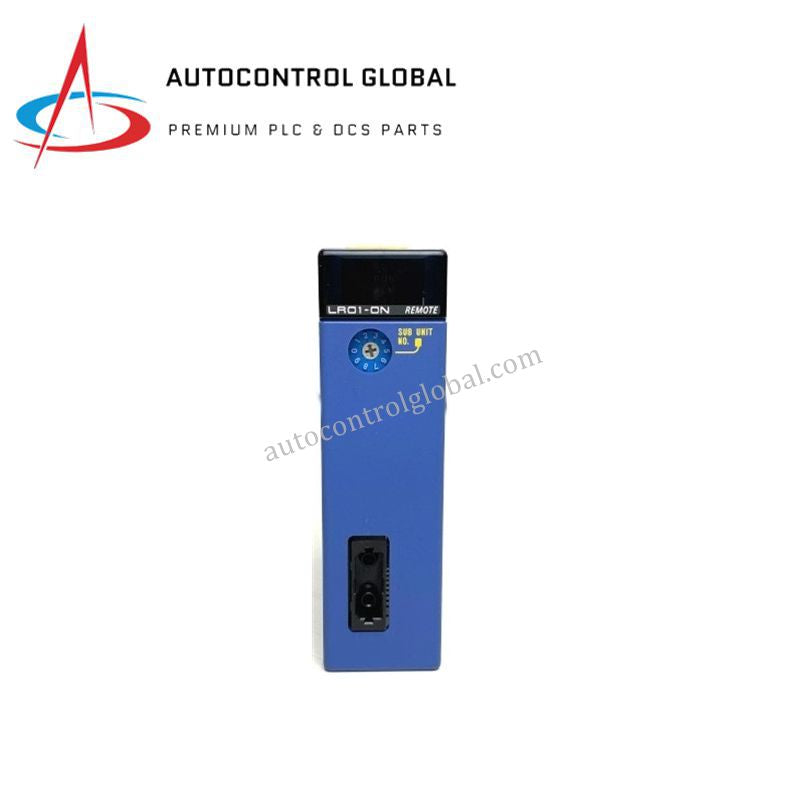

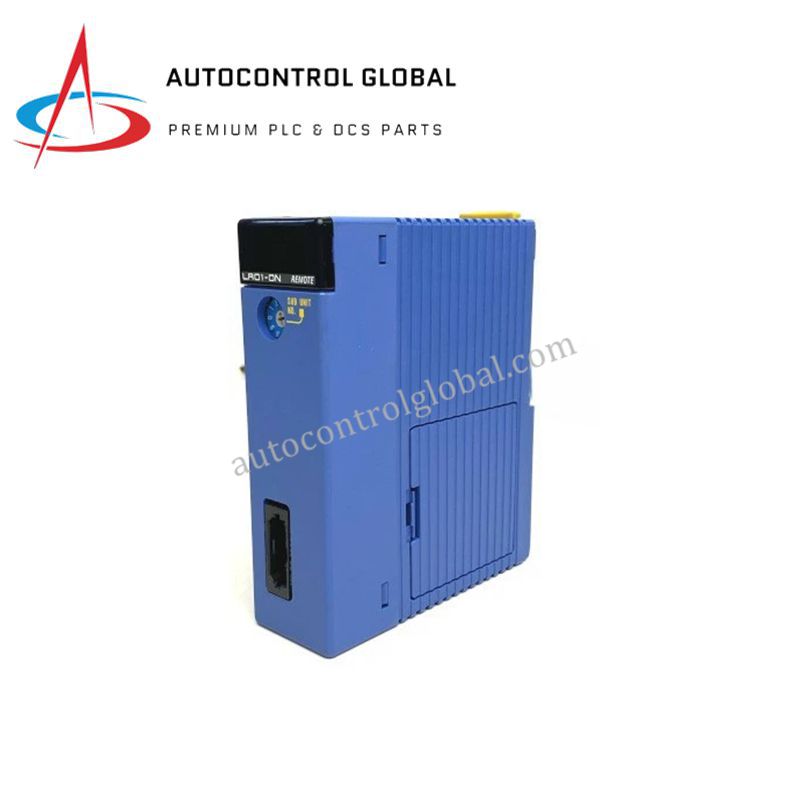

Yokogawa F3LR01-0N FA-bus Interface for FA-M3 Controllers

Product Description

The Yokogawa F3LR01-0N is a high-speed Fiber-optic FA-bus Interface Module designed for Yokogawa FA-M3 series programmable controllers. It provides a reliable communication interface for distributed control systems, enabling robust data exchange across long distances while resisting electromagnetic interference.

This module supports multi-drop network topology, allowing up to seven remote stations to be connected on a single fiber-optic FA-bus. Moreover, it uses a 2-core optical fiber for fast 10 Mbps data transmission, ensuring real-time control and monitoring of remote I/O units in complex industrial automation environments.

Designed for durability, the F3LR01-0N is suitable for harsh factory conditions and integrates easily into DIN rail or panel-mounted racks. Furthermore, its compact design and high compatibility make it ideal for scalable distributed control architectures in chemical, manufacturing, and utility industries.

 Technical Specifications

• Model Number: F3LR01-0N

• Product Type: Fiber-optic FA-bus Interface Module

• Communication Type: FA-bus Type 2, fiber-optic

• Transmission Speed: 10 Mbps

• Transmission Distance: Up to 200 meters per segment (total distance depends on network configuration)

• Maximum Stations: 7 remote units per bus

• Topology Supported: Multi-drop (daisy chain)

• Compatible Systems: Yokogawa FA-M3 series controllers

• Mounting Type: DIN rail or panel mount

• Operating Temperature: 0°C to +55°C

• Storage Temperature: –25°C to +75°C

• Humidity Range: 10% to 90% RH (non-condensing)

• Dimensions: 28.9 mm × 100 mm × 83.2 mm

• Weight:0.22 kg

• Certifications: CE, RoHS

• Country of Origin: Japan

FAQ

Q1: What is the maximum number of stations supported on the FA-bus?
It supports up to 7 remote stations per single fiber-optic FA-bus.

Q2: What type of communication does this module use?
It uses Type 2 fiber-optic FA-bus communication at 10 Mbps.

Q3: Can it be mounted on a DIN rail?
Yes, the module is compatible with both DIN rail and panel-mounted installations.

Q4: Which controllers are compatible with the F3LR01-0N?
It is compatible with Yokogawa FA-M3 series controllers.

Q5: What environments is it suitable for?
It is ideal for harsh industrial environments requiring EMI-resistant, long-distance communication.
