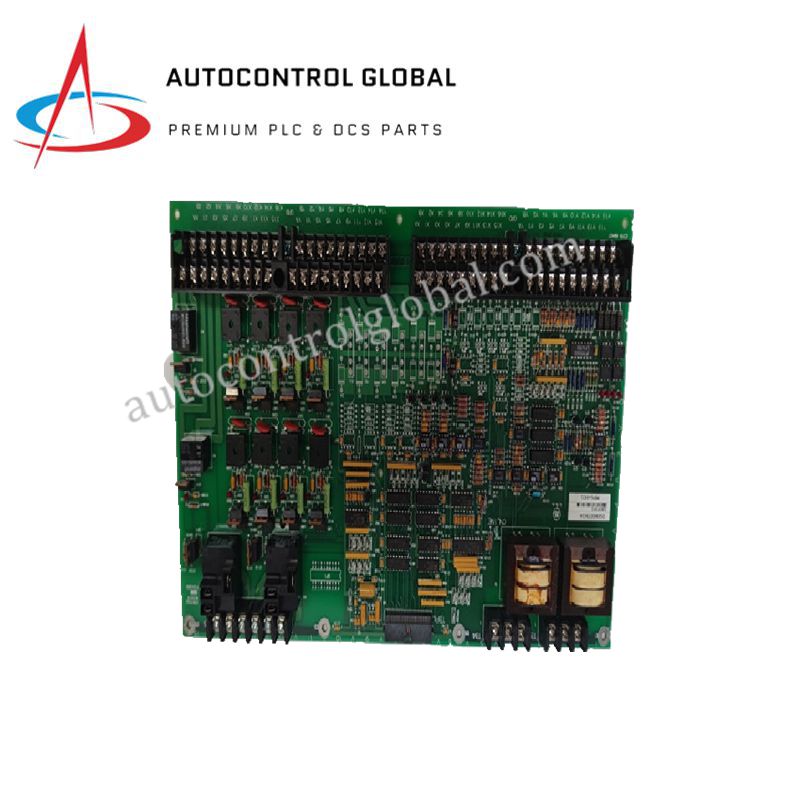

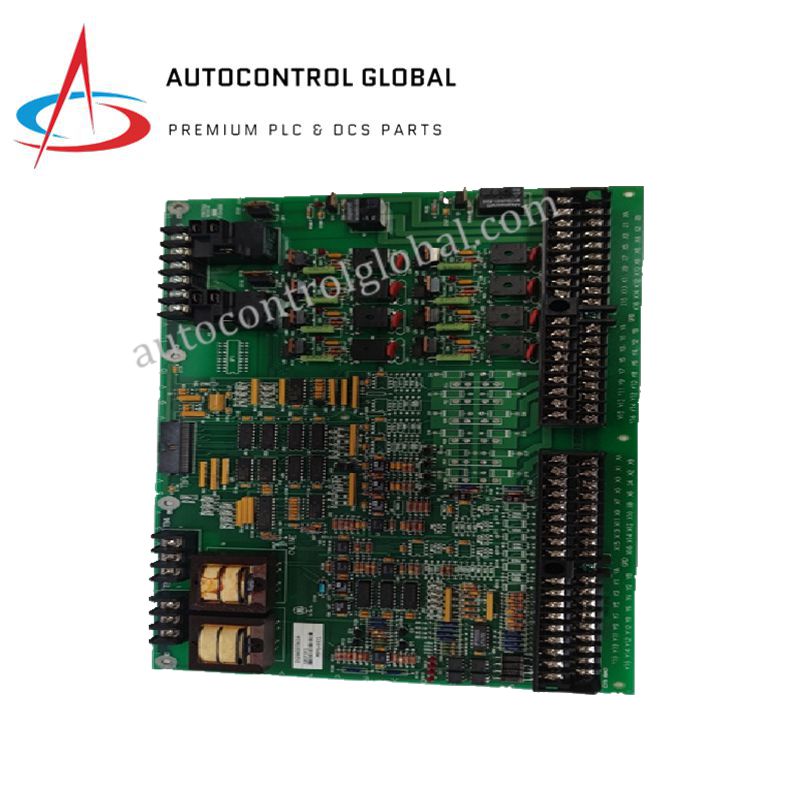

DS200VPBLG2A GE | VME Expansion Module for Turbine Starters
Manufacturer: GE Fanuc
-
Part Number: DS200VPBLG2A
Condition：New with Original Package
Product Type: VME Expansion Module for Turbine Starters
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The GE DS200VPBLG2A VME Backplane Board is designed for LS2100 static starter control systems, providing modular expansion, signal conditioning, and secure power delivery. It features multiple VME connectors for flexible system configurations and isolated digital and analog grounds to reduce electrical noise. Moreover, a dedicated 34-pin exciter connector ensures signal integrity for critical turbine exciter circuits. Therefore, the board supports reliable operation in industrial turbine starter environments. In addition, detailed GE documentation simplifies installation, troubleshooting, and system integration. With robust construction and standard DS200 board dimensions, it offers durable performance in demanding conditions.
Technical Specifications
Manufacturer: General Electric (GE)
Part Number: DS200VPBLG2A
Series: LS2100 Static Starter Control
Functional Acronym: VPBL
Product Type: VME Backplane Board
-
Expansion Capability: Six double-wide and two single-wide VME connectors for scalable configurations
-
Power Connection: 12-pin Mate-N-Lock connector with isolated digital (DCOMI) and analog (COMI) grounds
-
Signal Integrity: 34-pin exciter connector (EX JV) minimizes interference in external exciter signals
-
Compatibility: Native support for GE LS2100 series static starter systems
-
Documentation: GE manuals GEI-100227 and GEH-6373 provide pinouts, schematics, and troubleshooting
-
Dimensions: 8.2 cm × 12.2 cm × 6 cm
-
Weight: 0.5 kg (1.1 lbs)
-
Environmental Protection: Normal PCB coating for industrial environments
FAQ
Q: What is the primary function of the DS200VPBLG2A?
It provides modular expansion, signal conditioning, and power delivery for LS2100 turbine starter systems.
Q: How many VME connectors does the board include?
It features six double-wide and two single-wide VME connectors for scalable configurations.
Q: Does the board support signal isolation?
Yes, it includes isolated digital (DCOMI) and analog (COMI) grounds for noise reduction.
Q: Which turbine systems are compatible with this board?
It is designed specifically for GE LS2100 static starter control systems.
Q: Are installation and troubleshooting instructions available?
Yes, GE manuals GEI-100227 and GEH-6373 provide comprehensive support.
