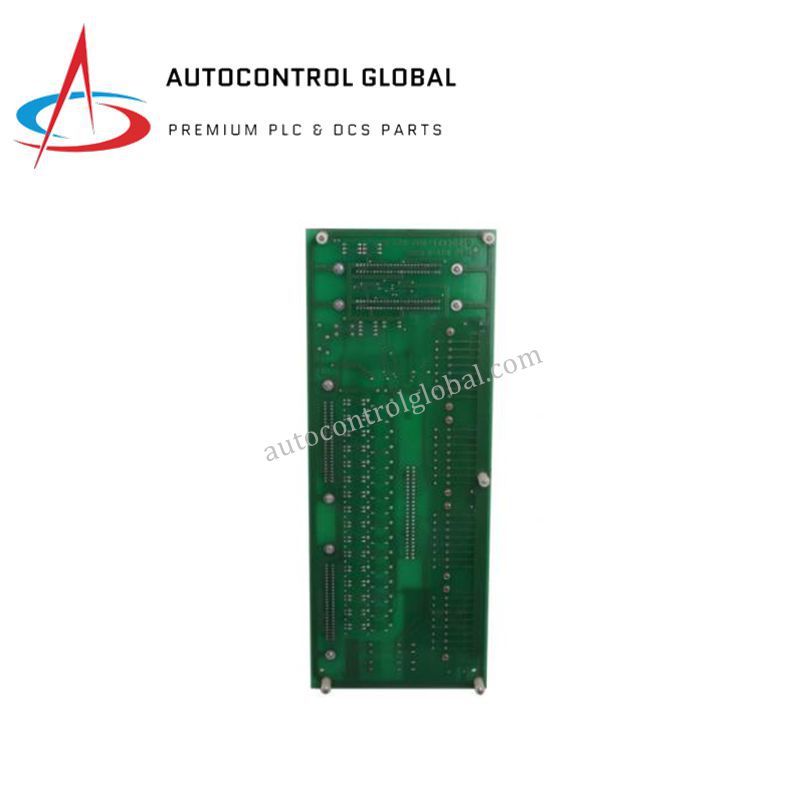

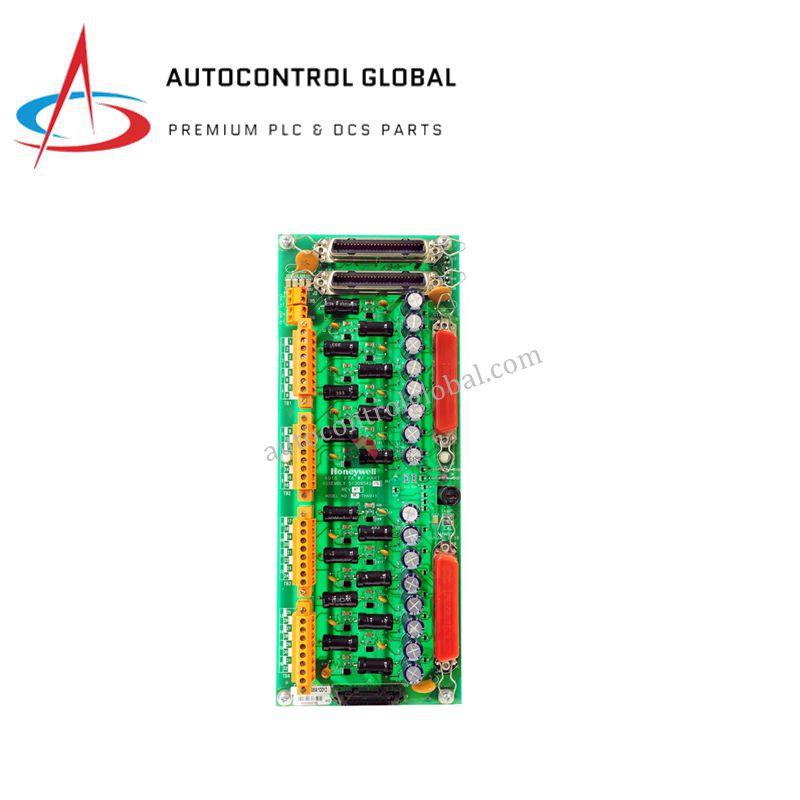

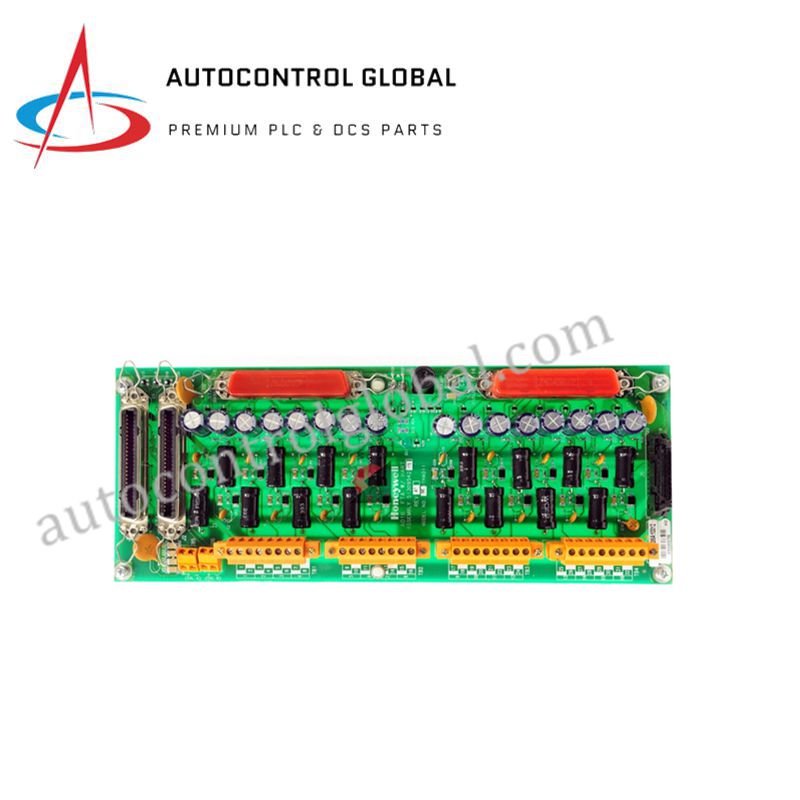

FTA-T-16 | Honeywell Safety Manager Compatible Digital Input FTA
Manufacturer: Honeywell
-
Part Number: FTA-T-16
Condition：New with Original Package
Product Type: Safety Manager Compatible Digital Input FTA
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Honeywell FTA-T-16 is a Fail-Safe Active Digital Input Field Termination Assembly (FTA) designed for industrial automation and safety systems. It provides 16 discrete input channels, ensuring reliable digital signal acquisition from field devices such as switches and sensors.
This module guarantees high integrity and fault tolerance, making it suitable for Honeywell Safety Manager and FSC platforms. Its robust design ensures dependable performance in safety-critical environments, maintaining operational continuity even during system faults.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | FTA-T-16 |
| Product Type | Fail-Safe Active Digital Input FTA Module |
| Number of Channels | 16 digital input channels |
| Input Voltage | 24 VDC or 120 VAC |
| Input Current | 10 mA |
| Input Resistance | 10 kΩ |
| Power Requirements | 30 VDC external, 150 mA (all inputs closed) |
| Max Current per Channel | < 12 mA at 30 VDC |
| Output Voltage to Transmitters | Typically 24 VDC |
| Output Voltage to Module | 0–3.5 VDC |
| Dimensions (L × W × H) | 110 × 70 × 60 mm |
| Weight | 0.8–1.0 kg |
| Operating Temperature | –20°C to +65°C |
| Storage Temperature | –40°C to +105°C |
| Mounting | DIN rail |
| Country of Origin | USA |
| Applications | Safety-critical digital input acquisition |
FAQs
Q1: Is the FTA-T-16 brand new?
A1: Yes, the FTA-T-16 comes brand new with original packaging.
Q2: How many channels does this module support?
A2: The FTA-T-16 provides 16 discrete digital input channels.
Q3: What voltages can it handle?
A3: The module accepts 24 VDC or 120 VAC input signals.
Q4: How is it mounted?
A4: It is designed for DIN rail mounting in industrial cabinets.
Q5: Is it suitable for Honeywell Safety Manager systems?
A5: Yes, the FTA-T-16 is fully compatible with Honeywell Safety Manager and FSC platforms.
