TC809B1008 Mini Module | Honeywell Intelligent Detector Interface
Manufacturer: Honeywell
-
Part Number: TC809B1008
Condition：New with Original Package
Product Type: Intelligent Detector Interface
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description

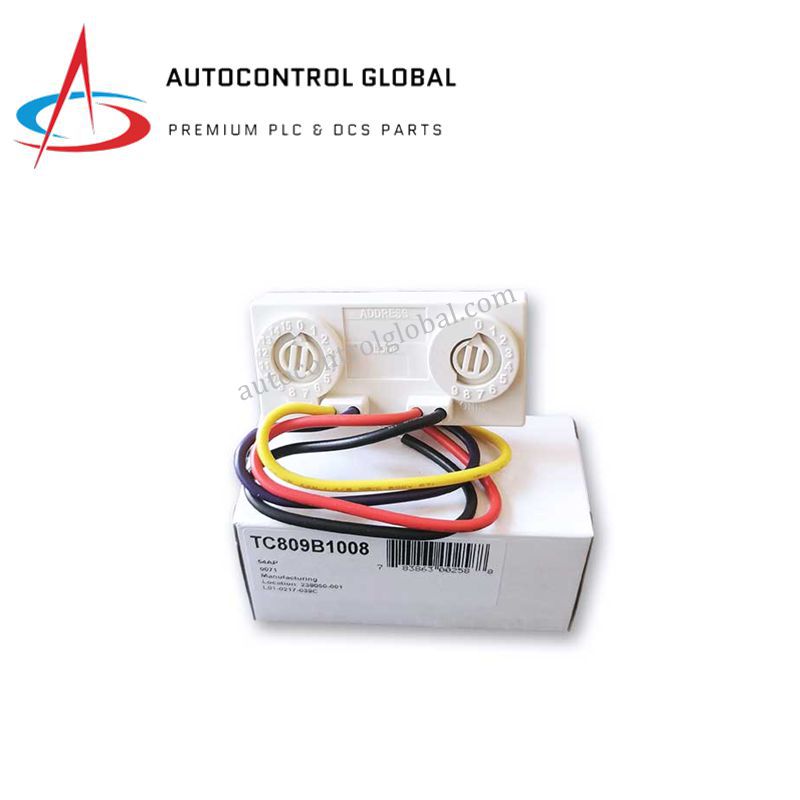

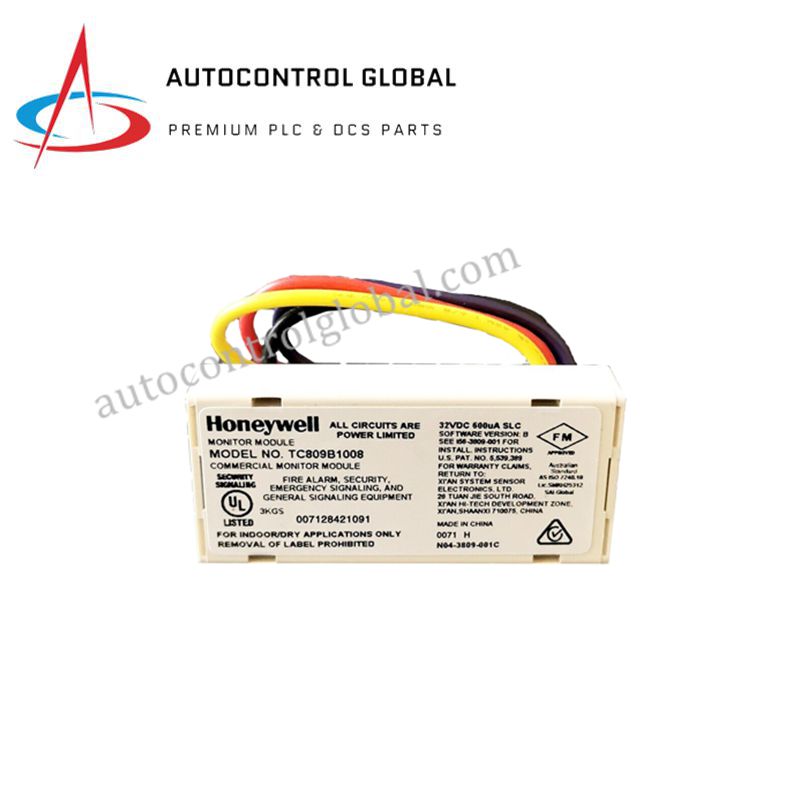

The Honeywell TC809B1008 Mini Monitor Module is a compact, addressable module designed for intelligent two-wire fire alarm systems. It monitors normally open contact devices such as manual pull stations, sprinkler waterflow switches, and security sensors. With its miniature form factor, the TC809B1008 can be installed directly behind the monitored device in a single-gang junction box, reducing wiring complexity and installation time.

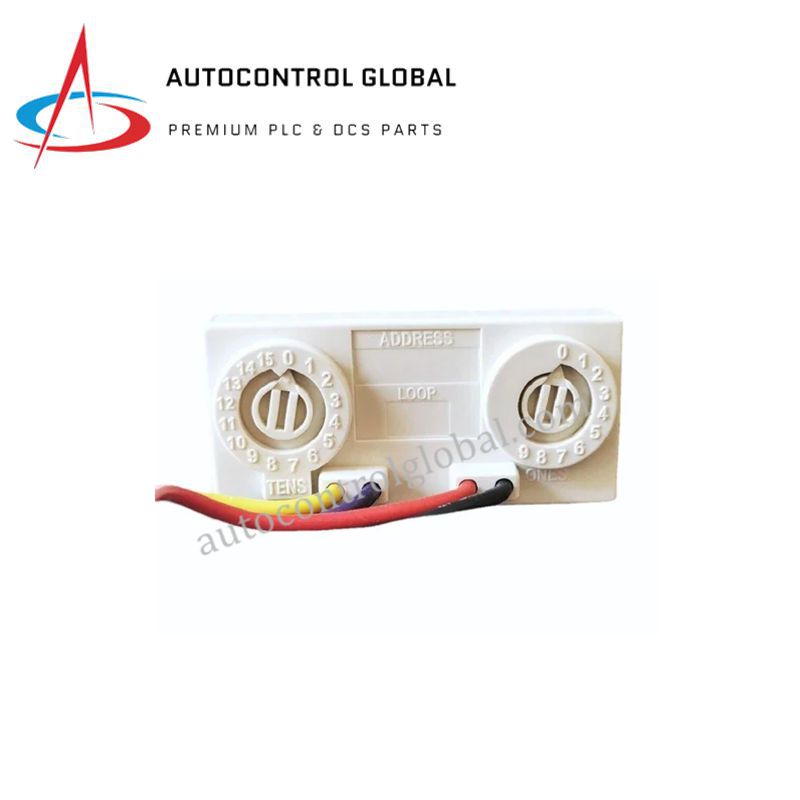

This module uses rotary switches for address configuration, allowing precise and easy identification within the fire alarm loop. It communicates continuously with the control panel to ensure real-time status reporting and fault supervision. Moreover, its low current consumption and robust design make it ideal for large-scale or retrofit installations.
The TC809B1008 combines high reliability, compact design, and fast response to provide dependable monitoring in both fire alarm and security systems. It complies with Honeywell’s strict quality standards, ensuring long-term operational stability in demanding environments.
Key Features & Benefits
-
Compact Installation: Fits easily in a single-gang junction box behind the monitored device.
-
Addressable Design: Each module can be uniquely identified using rotary switches.
-
Reliable Communication: Reports device status and faults to the control panel every few seconds.
-
Low Power Consumption: Consumes only 350 μA during normal operation, improving energy efficiency.
-
Flexible Integration: Supports normally open contacts for both fire and security sensors.
-
Durable and Tested: Built to Honeywell’s industrial-grade quality standards for long-term performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TC809B1008 |
| Manufacturer | Honeywell |
| Product Type | Miniature Monitor Module |
| System Type | Intelligent two-wire fire alarm systems |
| Input Type | Normally open contact devices |
| Addressing Method | Rotary switches |
| Operating Voltage | 15–32 VDC |
| Average Current | 350 μA (one communication every 5 seconds) |
| Maximum IDC Resistance | 1,500 ohms |
| End-of-Line Resistance | 47K ohms (included) |
| Operating Temperature | 0°C to 49°C (32°F to 120°F) |
| Humidity Range | 10%–93% RH (non-condensing) |
| Dimensions (H) | 1.3 in (3.3 cm) |
| Mounting Type | Single-gang junction box |
| Condition | New (discontinued in some regions) |
| Shipping Weight | 1 kg |
FAQ
Q1: What devices can the TC809B1008 monitor?
It monitors any normally open contact devices, such as pull stations or waterflow switches.
Q2: How do I assign an address to the module?
You can use the rotary switches on the module to set a unique address in the fire alarm system.
Q3: Can this module be used for both fire and security devices?
Yes, the TC809B1008 supports both fire alarm and security monitoring applications.
Q4: Is it compatible with all Honeywell fire alarm panels?
It works with Honeywell intelligent two-wire systems, but always confirm compatibility with your control panel model.
Q5: What are the power requirements?
The module operates between 15–32 VDC with a low average current of 350 μA.
