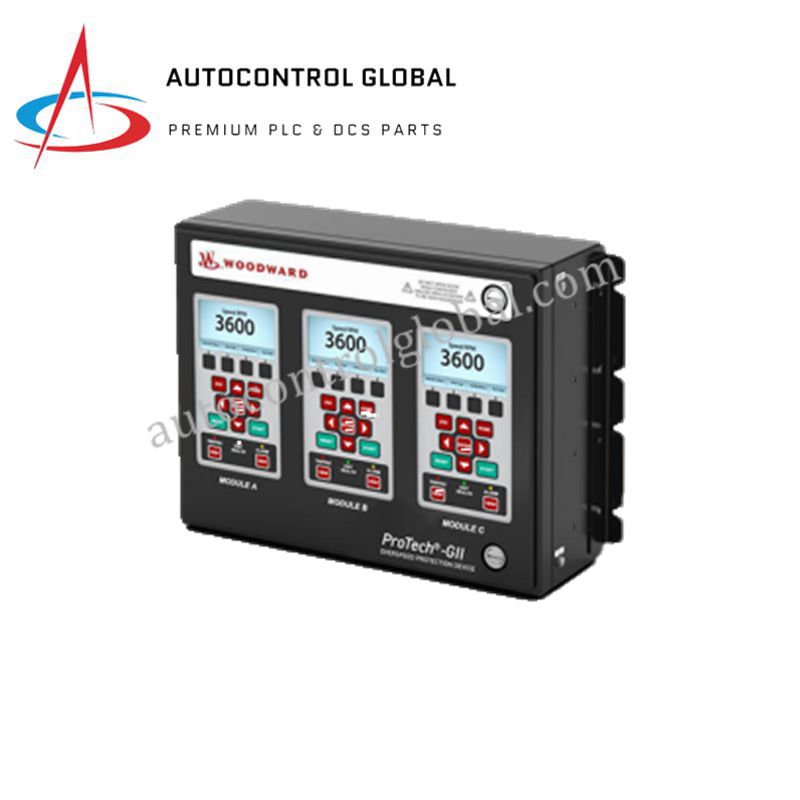

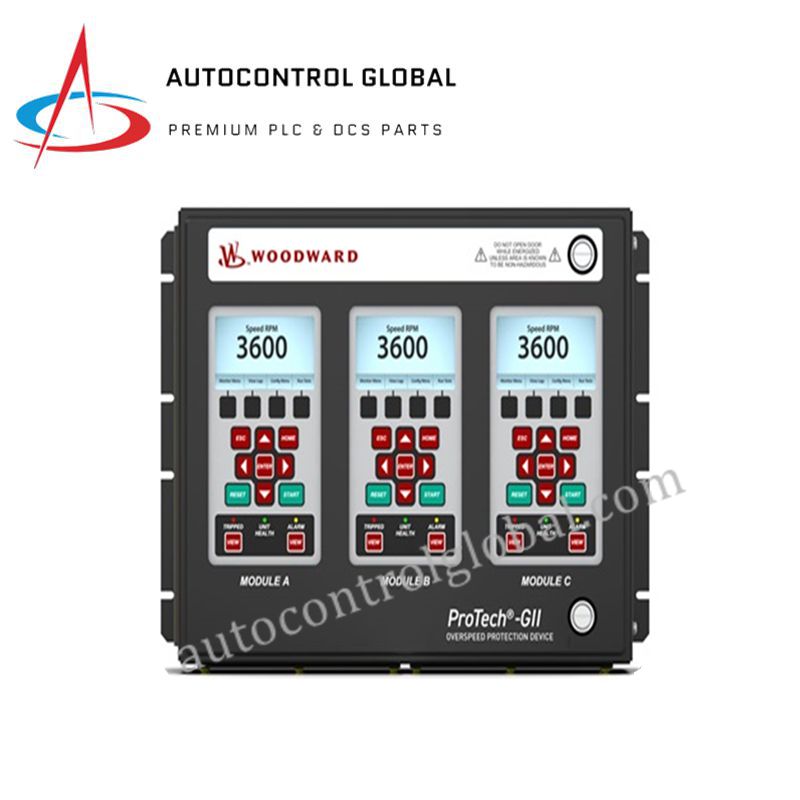

8237‑1597 | Woodward Independent Turbine Overspeed Protection
Manufacturer: Woodward
-
Part Number: 8237-1597
Condition：New with Original Package
Product Type: Independent Turbine Overspeed Protection
-
Country of Origin: GERMANY
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Woodward 8237‑1597 is a ProTech‑GII overspeed protection unit engineered to provide independent, high-reliability speed monitoring for steam, gas, hydro turbines, reciprocating engines, and industrial process equipment. It continuously monitors rotor speed via magnetic pickups and triggers a fast, independent trip output when overspeed or over-acceleration events are detected.
Designed for harsh industrial environments, the bulkhead-mounted device features an IP56-rated enclosure, making it resistant to dust and water spray. Moreover, the 8237‑1597 integrates three separate internal modules that provide independent sensing and voting, ensuring modular fault tolerance and reliable overspeed detection.
Its high-voltage input (100–150 V, model-dependent) and front-panel access make it suitable for HV power systems, enabling straightforward integration into turbine safety systems. Therefore, this unit is ideal as a secondary, independent overspeed protection layer, complementing main turbine controls.
Technical Specifications
| Feature | Specification |
|---|---|
| Product type | ProTech‑GII overspeed protection device |
| Manufacturer | Woodward |
| Model number | 8237‑1597 |
| Function | Monitors turbine speed and triggers trips on overspeed or over-acceleration |
| Sensor inputs | Magnetic pickup (MPU) speed sensors |
| Internal architecture | 3 independent internal modules with voting logic |
| Trip outputs | Dual redundant or three independent, non-voting relays |
| Additional outputs | Alarm relays, 4–20 mA speed readout, Modbus® communications |
| Enclosure | IP56 dust- and water-resistant |
| Mounting | Bulkhead mount |
| Dimensions | H 13 × W 19.1 × D 6 inches |
| High-voltage input | 100–150 V (per model) |
| Operating environment | Steam, gas, hydro turbines; reciprocating engines; industrial processes |
FAQ
Q1: How does the 8237‑1597 detect overspeed events?
A1: It monitors turbine rotor speed using magnetic pickup (MPU) sensors and triggers a fast trip output.
Q2: Can it operate in harsh industrial environments?
A2: Yes, it features an IP56-rated enclosure for dust- and water-resistant bulkhead mounting.
Q3: What is the device’s modular architecture?
A3: It integrates three independent internal modules, providing voting logic for fault-tolerant operation.
Q4: What turbines is it suitable for?
A4: Designed for steam, gas, hydro turbines, reciprocating engines, and critical industrial machinery.
Q5: What integration options are available?
A5: Provides dual-redundant or independent trip relay outputs, 4–20 mA speed readout, and Modbus® communication.
