EGCP-3 Operator Panel 8406-113 | Woodward Generator Control

Product Overview

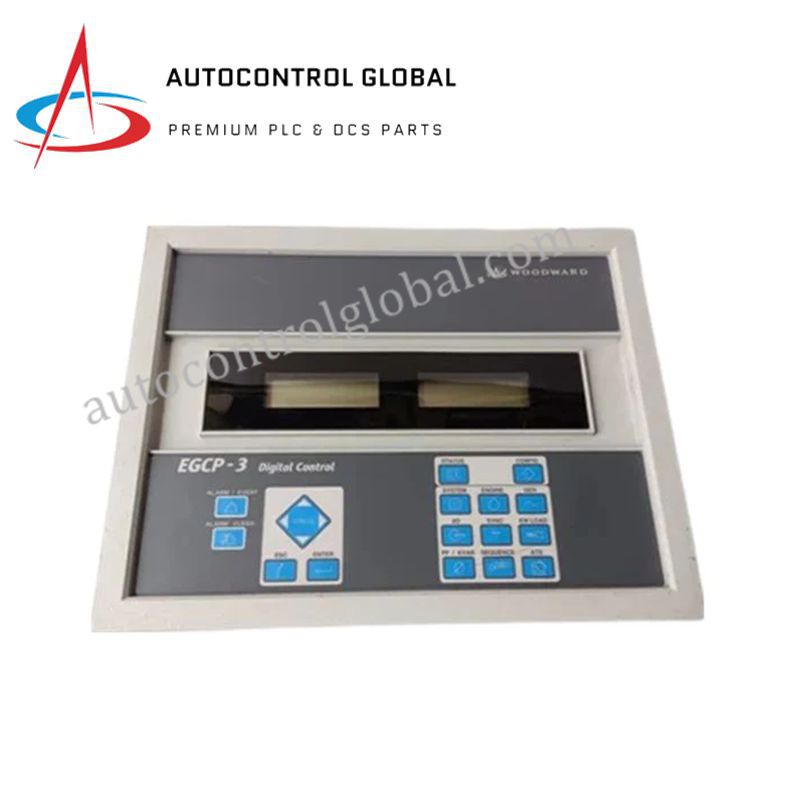

The Woodward 8406-113 EGCP-3 is a microprocessor-based engine generator control package designed for advanced generator management and load sharing operation. It integrates engine sequencing, synchronization, load control, and comprehensive protection within a single industrial control platform.

This EGCP-3 model is widely deployed in diesel and gas generator sets operating in parallel or islanded configurations. Therefore, it plays a critical role in facilities where uninterrupted power and stable load distribution are essential.

The controller provides a dual display operator interface with keypad control for local monitoring and configuration. Moreover, it supports multiple communication protocols for seamless integration with PLC, DCS, EMS, and supervisory control systems.

Technical Specifications

Manufacturer: Woodward
Model number: 8406-113
Product type: Engine Generator Control Package (EGCP-3)
Configuration: Load Sharing Model, 3-slot

Input voltage: 18–32 VDC
Control outputs: Speed bias signals (4–20 mA, 0–5 V, PWM, ±3 V)

Operator interface: Dual display with keypad
Communication protocols: Modbus, CAN, RS-485

Synchronization functions: Automatic sync check, phase alignment, load transfer
Protection functions:

• Overload

• Overspeed

• Under/over voltage

• Under/over frequency

• Short circuit

• Low oil pressure

Operating temperature: –20 °C to +70 °C
Dimensions: 282 mm (H) × 359 mm (W) × 135 mm (D)
Weight: 4.3 kg

Country of origin: USA
Condition: New

FAQ

Q1: What is the primary function of the Woodward 8406-113?
A1: It controls generator start/stop, synchronization, load sharing, and protection in parallel generator systems.

Q2: Does this EGCP-3 model support load sharing?
A2: Yes, it is specifically designed as a load sharing model for multi-generator applications.

Q3: Which communication protocols are supported?
A3: The controller supports Modbus, CAN, and RS-485 communication protocols.

Q4: Is the operator interface integrated into the unit?
A4: Yes, it includes a dual display and keypad for local operation and configuration.

Q5: What types of generators can use this controller?
A5: It is suitable for diesel and gas generator sets in industrial, marine, and commercial environments.
