Product Description

Overview

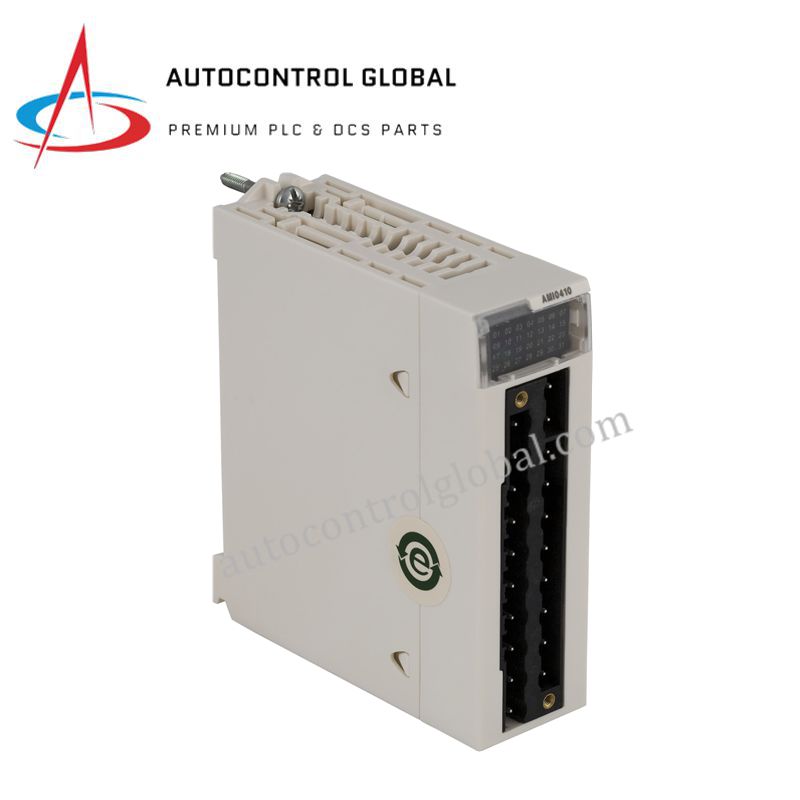

The Schneider BMXAMI0410H is a 4-channel isolated analog input module from the Modicon X80 range, designed for severe industrial environments. It supports multiple voltage and current input types, providing high-precision 16-bit resolution for accurate process monitoring. Moreover, its ruggedized design allows operation across an extended temperature range from –25°C to +70°C, ensuring reliable performance in demanding applications.

Technical Specifications

General

• Product Type: Isolated Analog Input Module

• Series: Modicon X80 (for M580/M340 PAC)

• Model: BMXAMI0410H

• Weight: 0.143 kg

• Protection Rating: IP20

• Application: Severe industrial environments

Electrical

• Number of Inputs: 4

• Input Types: Current 0–20 mA, 4–20 mA, ±20 mA

• Analog Resolution: 16-bit

• Analog/Digital Conversion: 24-bit

• Isolation: Channel-to-channel isolated

• Power Consumption: 1.3 W at 24 V DC

• Electrical Connection: 20-way connector

Environmental

• Operating Temperature: –25°C to +70°C

• Storage Temperature: –40°C to +85°C

Compliance & Certifications

• Standards: IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213, UL 508

• Certifications: EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE

FAQ

Q1: How many analog inputs does the BMXAMI0410H module have?
It provides 4 isolated analog inputs for high-precision monitoring.

Q2: What input types are supported by this module?
It supports 0–20 mA, 4–20 mA, ±20 mA, 0–10 V, ±10 V, 0–5 V, ±5 V, and 1–5 V signals.

Q3: Can it operate in harsh industrial conditions?
Yes, it is ruggedized for severe environments with operation from –25°C to +70°C.

Q4: Is the module compatible with Modicon X80 systems?
Yes, it integrates seamlessly with Modicon X80 racks and other X80 modules.

Q5: How is the module connected electrically?
It uses a 20-way connector for secure and reliable electrical connections.
