Product Description

Overview

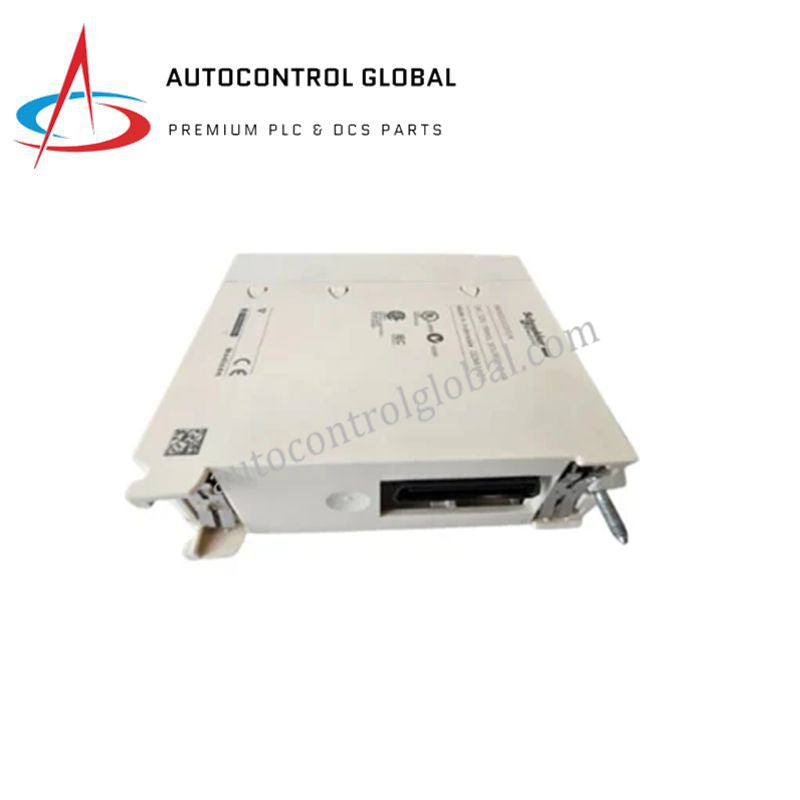

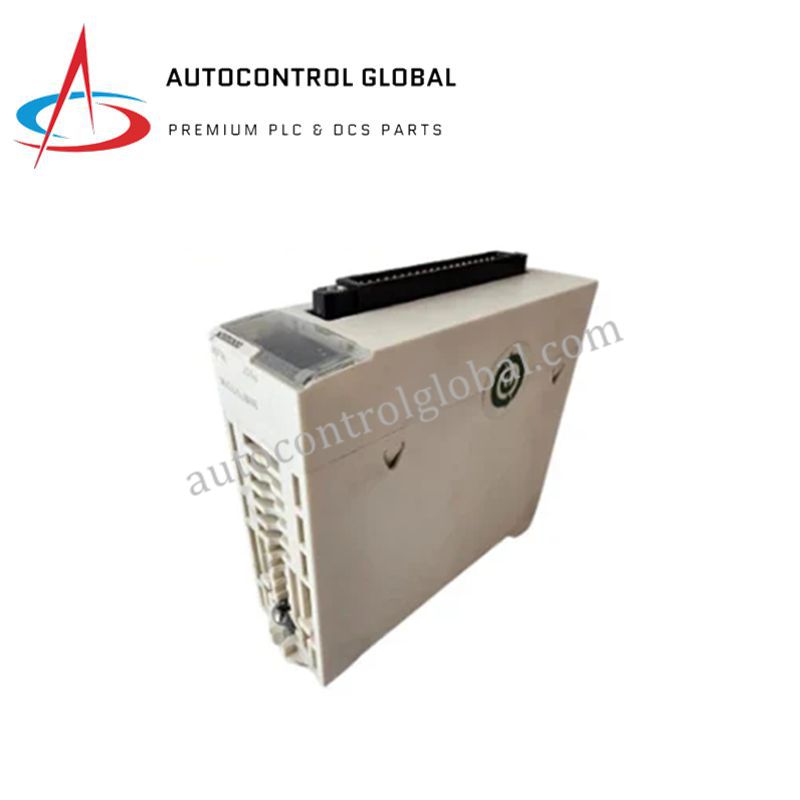

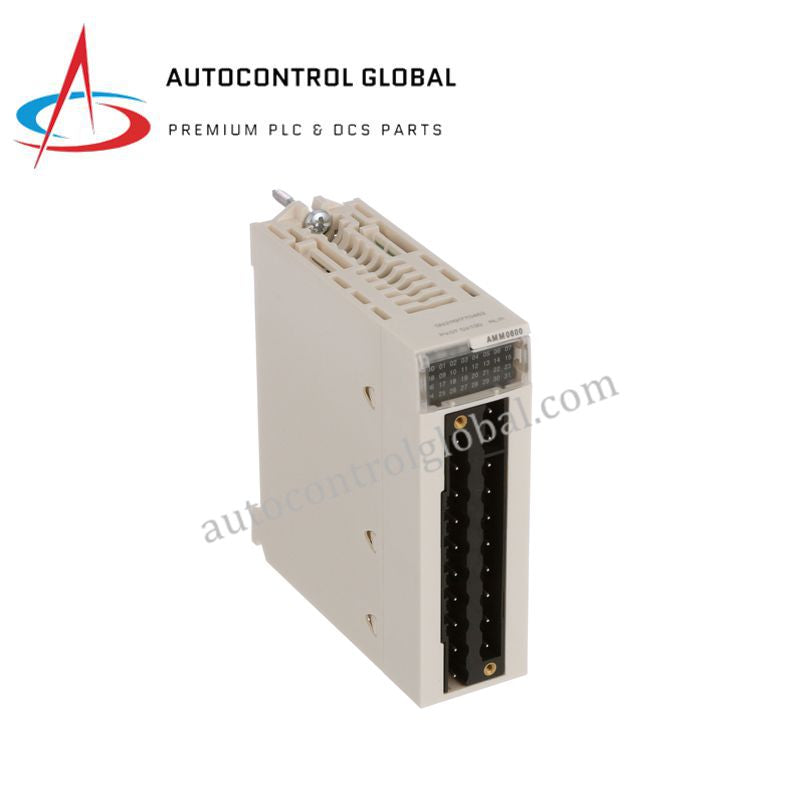

The Schneider BMXAMM0600 is a compact analog mixed I/O module from the Modicon X80 range, combining four inputs and two outputs in a single slot. It supports multiple voltage and current ranges for flexible signal acquisition and actuation. Moreover, its IP20-rated rugged design allows reliable operation in industrial environments from –25°C to +70°C. This module is ideal for applications requiring both analog measurement and analog control in one compact unit.

Technical Specifications

General

• Product Type: Analog Mixed I/O Module

• Series: Modicon X80 (for M340/M580 PAC systems)

• Model: BMXAMM0600

• Number of Channels: 4 analog inputs + 2 analog outputs

• Protection Rating: IP20

• Weight: 0.155 kg

Electrical

• Input Signal Range: 0–10 V, ±10 V, 0–20 mA, 4–20 mA

• Output Signal Range: 0–10 V, ±10 V, 0–20 mA, 4–20 mA

• Resolution: 12 bits

• Accuracy: ±0.1% FS at 25 °C

• Isolation: Channel-to-bus isolation

• Power Consumption: 3.9 W at 24 V DC; 211 mW at 3.3 V DC

Mechanical & Environmental

• Mounting: X80 backplane

• Operating Temperature: –25°C to +70°C

• Storage Temperature: –40°C to +85°C

• Altitude: Up to 2000 m (standard), 5000 m with derating

Compliance & Certifications

• Standards: IEC, UL, CSA, CE

FAQ

Q1: How many analog inputs and outputs does BMXAMM0600 have?
It provides 4 analog inputs and 2 analog outputs in a single module.

Q2: What input and output types are supported?
It supports 0–10 V, ±10 V voltage and 0–20 mA, 4–20 mA current signals.

Q3: Is the module suitable for industrial environments?
Yes, it operates reliably in severe environments from –25°C to +70°C.

Q4: What type of protection does it offer?
The module is IP20 rated and includes open-circuit detection and short-circuit protection.

Q5: Can it be used with Modicon M340 or M580 controllers?
Yes, it integrates seamlessly with both M340 and M580 PAC systems via X80 backplane.
