CON01 – EPRO High-Precision Eddy Current Converter Module
Manufacturer: Epro
-
Part Number: CON01
Condition：New with Original Package
Product Type: Precision Eddy Current Converter Module
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

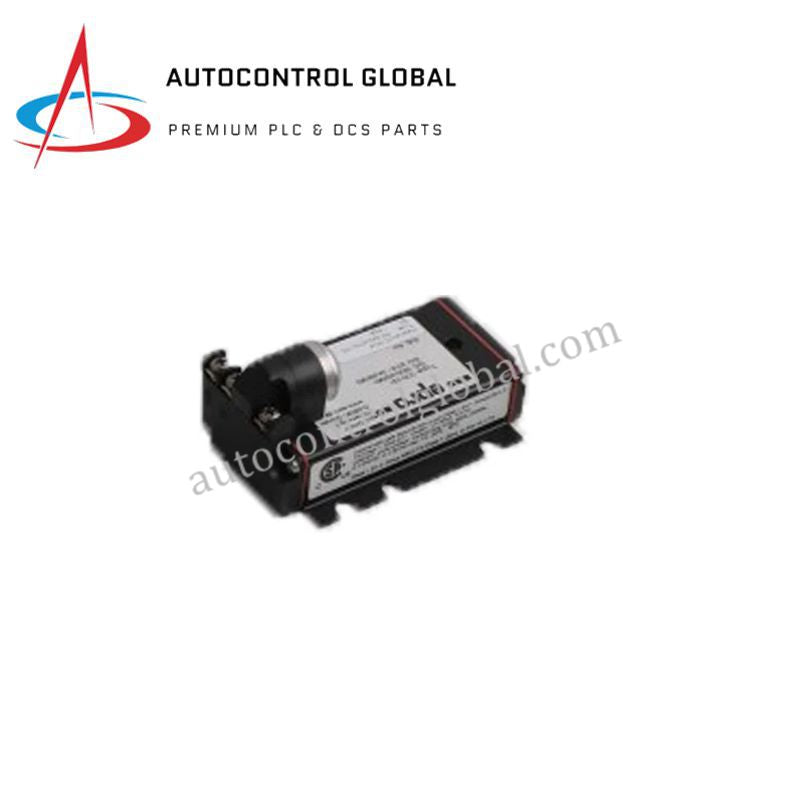

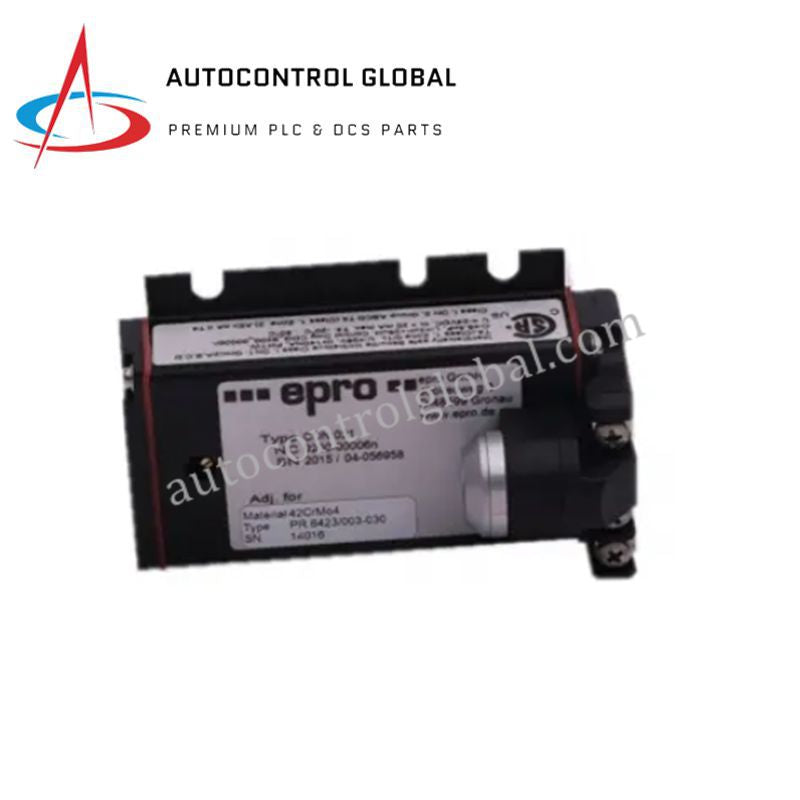

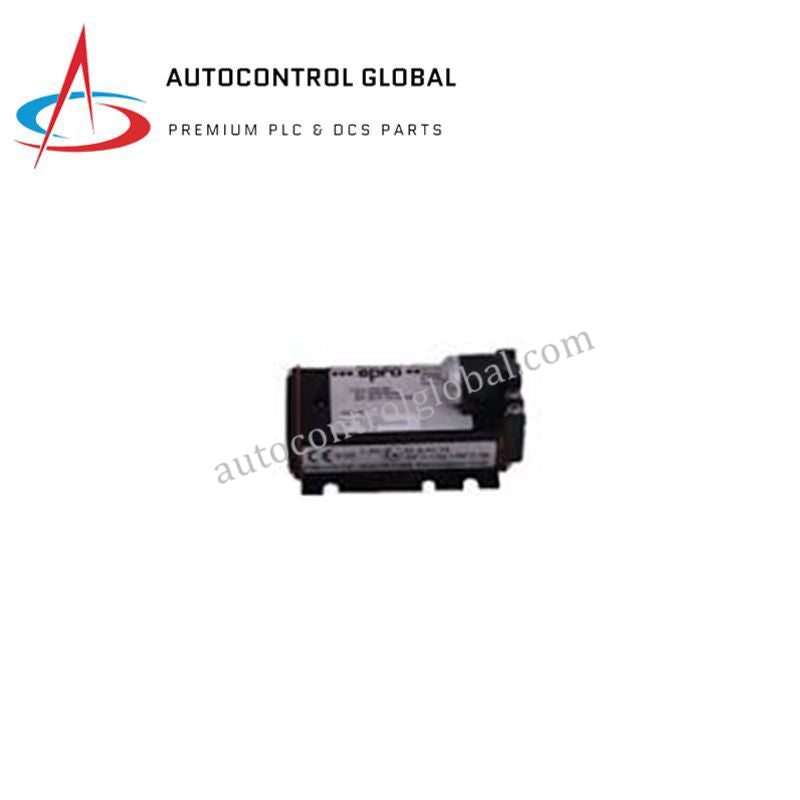

EPRO CON01 – Eddy Current Signal Converter
Product Overview
The EPRO CON01 is a high-precision eddy current signal converter designed for use with non-contact displacement sensors such as the PR6423 and PR6424 series. It converts raw sensor signals into standardized analog outputs, enabling precise monitoring of shaft vibration, axial displacement, and position in critical rotating machinery.
Widely used in turbines, compressors, pumps, and other industrial equipment, the CON01 ensures integration with Emerson AMS 6500 systems and other API 670-compliant platforms. Its compact, rugged design provides reliable operation in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | CON01 |
| Function | Eddy current signal converter |
| Sensor Compatibility | PR6423, PR6424, PR6426 series |
| Output Signal | –4 V to –20 V DC + AC vibration signal |
| Linearity Error | ≤ ±1% (with calibrated sensor) |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC |
| Mounting | DIN rail or panel mount |
| Operating Temperature | –10 °C to +60 °C |
| Dimensions | 150 mm × 100 mm × 50 mm |
| Weight | 500 g |
| Environmental Rating | IP65 |
| Certifications | CE, RoHS |
FAQ
1. Which sensors can I connect to the CON01?
It supports PR6423, PR6424, PR6426, and other EPRO proximity probes.
2. What is the output signal of the CON01?
It provides –4 V to –20 V DC with a superimposed AC signal for vibration analysis.
3. Can the module operate in harsh industrial environments?
Yes, the CON01 is IP65-rated and resistant to dust, oil, and moisture.
4. What is the mounting configuration?
It supports DIN-rail or panel mounting for flexible installation.
5. Is calibration required before use?
The CON01 comes factory-calibrated for standard materials, with custom calibration available if needed.
