EPRO 16 mm Eddy Current Sensor | PR6424/010-140 + CON011
Manufacturer: Epro
-
Part Number: CON011+PR6424/010-140
Condition：New with Original Package
Product Type: 16 mm Eddy Current Sensor
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

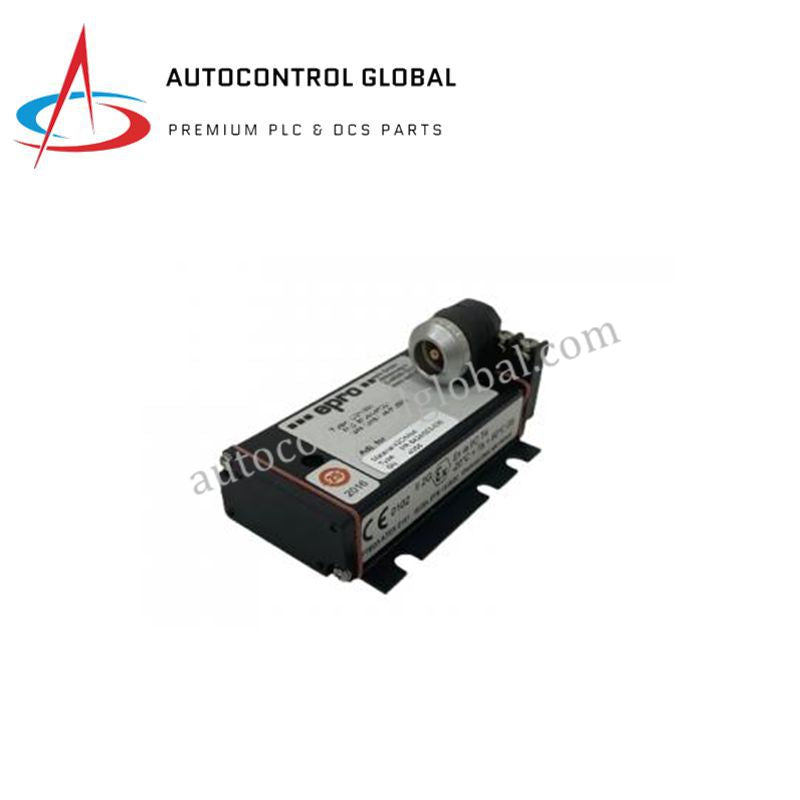

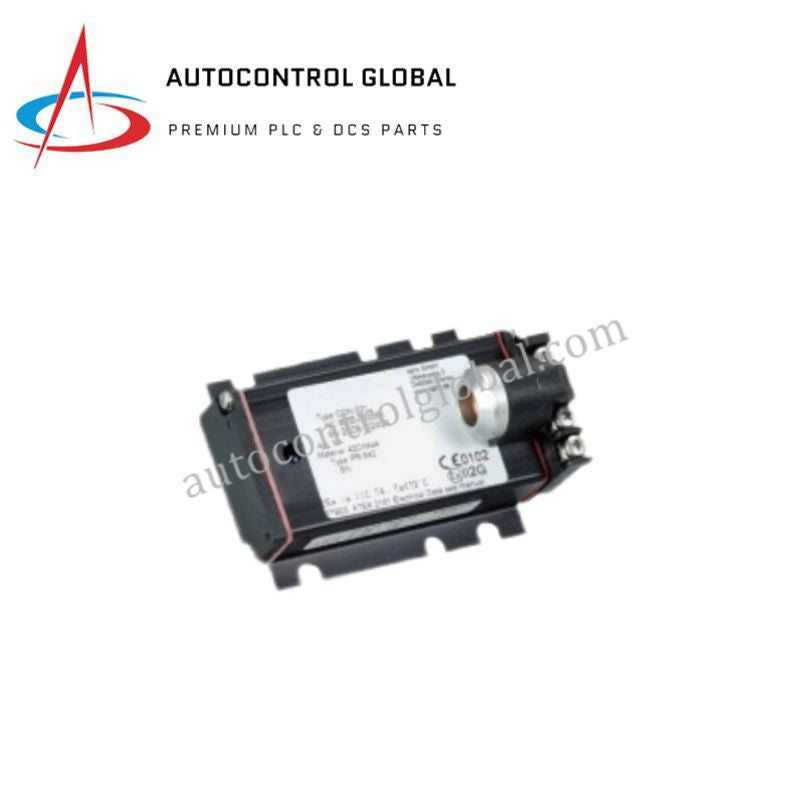

EPRO CON011 + PR6424/010-140 – 16 mm Eddy Current Displacement Sensor System
Product Overview
The EPRO PR6424/010-140 sensor paired with the CON011 converter delivers a high-precision eddy current displacement monitoring system. It measures shaft vibration, axial displacement, and rotational speed in turbomachinery with exceptional accuracy.
This system is widely applied in steam turbines, gas compressors, pumps, and fans, providing real-time data essential for machinery protection and predictive maintenance. The 16 mm sensor tip ensures high sensitivity, while the CON011 converter conditions and amplifies the raw signal for seamless integration into control and protection systems.
Technical Specifications
| Component | Specification |
|---|---|
| Sensor Model | PR6424/010-140 |
| Converter Model | CON011 |
| Measurement Range | Up to 14 mm axial or radial displacement |
| Sensor Tip Diameter | 16 mm |
| Output Signal | –4 V to –20 V DC + AC vibration |
| Frequency Range | Up to 10 kHz |
| Accuracy | ±0.1% of full scale |
| Shock Resistance | Up to 40g |
| Operating Temp | –35 °C to +160 °C |
| Mounting Distance | ≤5 meters between sensor and converter |
| Housing Material | Stainless steel |
| Sensor Tip Material | PEEK – resistant to oil, gas, and solvents |
| Cable Options | Armored or non-armored; LEMO or bare wire connectors |
| Mounting Configuration | Threaded or reverse mount |
| Compliance | API 670, ISO 10817-1, DIN 45670, ATEX, IECEx |
| Dimensions | 16 cm × 16 cm × 12 cm |
| Weight | 0.8 kg |
| Origin | Germany |
| HS Code | 85389091 |
FAQ
1. What is the maximum displacement this sensor can measure?
The PR6424/010-140 supports up to 14 mm radial or axial displacement.
2. Can the system operate in harsh environments?
Yes, it is IP-rated and resistant to dust, oil, and moisture.
3. What is the recommended distance between sensor and converter?
The CON011 converter supports mounting distances up to 5 meters.
4. Is the sensor suitable for high-shock applications?
Yes, it withstands shocks up to 40g.
5. Does this system meet hazardous area requirements?
Yes, it is ATEX, IECEx, and CSA compliant when used with certified barriers.
