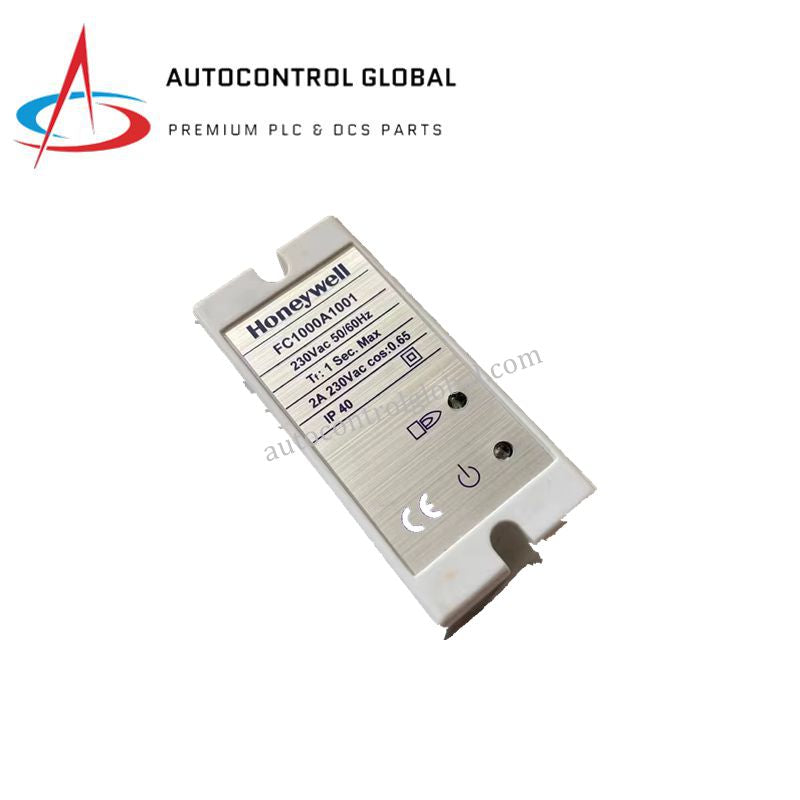

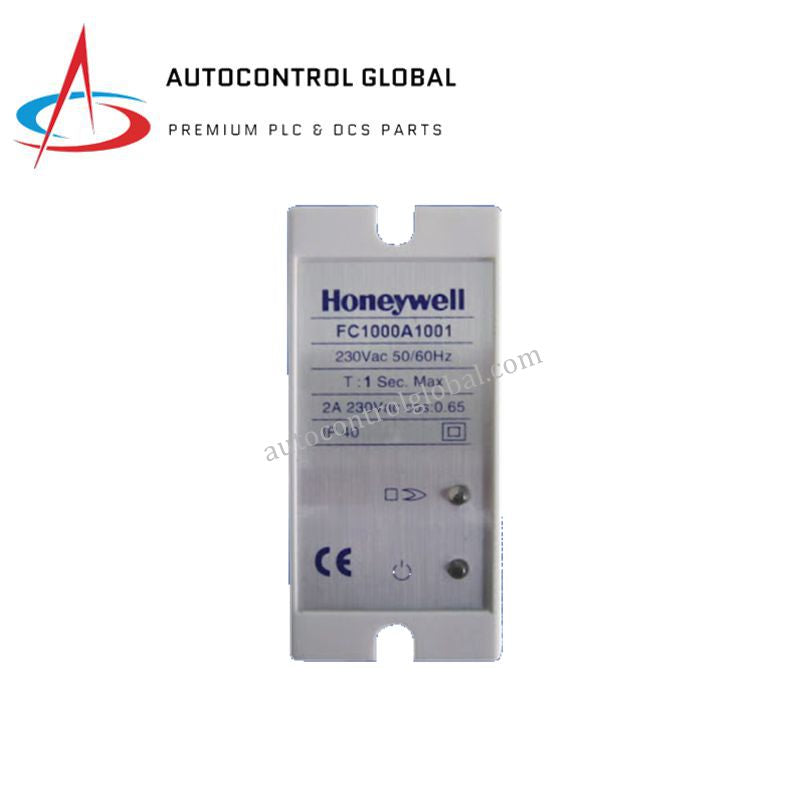

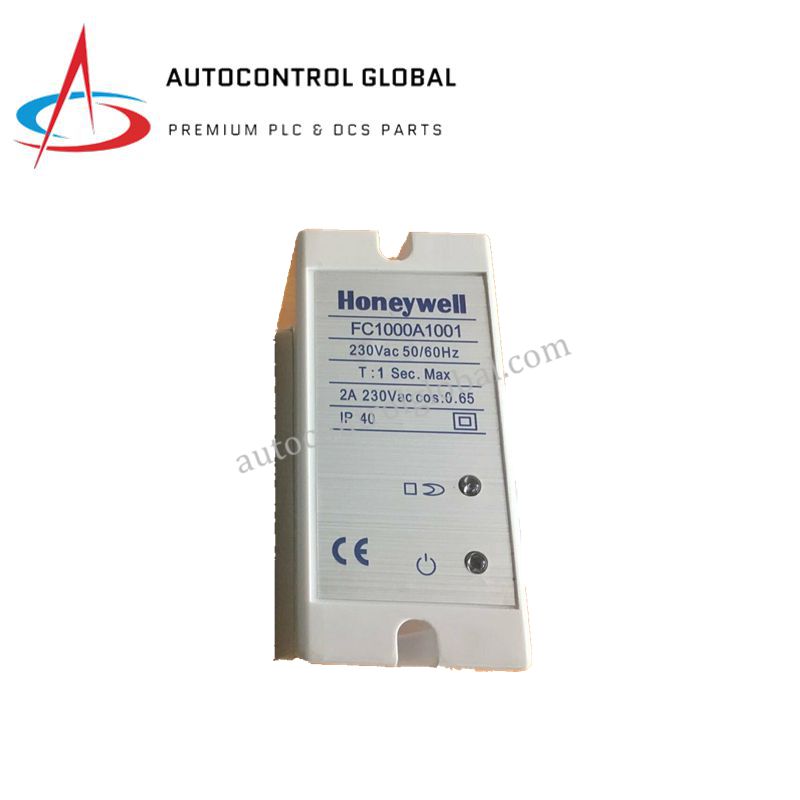

FC1000A1001 | Honeywell Flame Controller with UV/Ionization Detection
Manufacturer: Honeywell
-
Part Number: FC1000A1001
Condition：New with Original Package
Product Type: Flame Controller with UV/Ionization Detection
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The Honeywell FC1000A1001 is an advanced flame burning controller designed to monitor and control the combustion process in industrial kilns, furnaces, and heating systems. This controller provides real-time flame detection through either ultraviolet (UV) or ionization probes, ensuring safe and efficient operation. It is an integral part of Honeywell’s FC1000 Series, providing high-performance flame signal amplification and reliable combustion safety monitoring.
With its compact design and panel-mounted status indicators, the FC1000A1001 simplifies both installation and maintenance. The controller offers analog (0–5 VDC or 4–20 mA) and digital outputs, including two dry contact outputs to indicate flame status. The quick flame failure response time of less than 2 seconds ensures prompt action in case of a flame outage, making it ideal for chemical processing, metallurgy, and industrial heating environments where flame safety is critical.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | FC1000A1001 |
| Product Type | Flame Burning Controller |
| Detection Method | UV or ionization probe |
| Power Supply | 220 VAC ±10%, 50/60 Hz |
| Power Consumption | 5 W |
| Analog Output | Optional 0–5 VDC or 4–20 mA |
| Digital Output | 2 dry contact outputs for flame status |
| Flame Failure Response | < 2 seconds |
| Failure Threshold | < 1.5 VDC for >2 seconds |
| Contact Rating | 2 A resistive @ 220 VAC |
| Status Indicators | Green (power), Red (flame) |
| Operating Temperature | 0°C to +60°C |
| Humidity Tolerance | Up to 90% RH (non-condensing) |
| Protection Rating | IP40 |
| Dimensions (L × W × H) | 125 mm × 150 mm × 90 mm |
| Weight | 0.8 kg |
| Mounting Type | Plug-in base for panel installation |
| Country of Origin | USA |
FAQ
Q1: What flame detection methods does the FC1000A1001 support?
The FC1000A1001 supports UV and ionization probes for flame detection, ensuring flexibility in various applications.
Q2: How quickly does the controller respond to flame failure?
The FC1000A1001 has a fast flame failure response time of less than 2 seconds, ensuring prompt action in critical situations.
Q3: Is the FC1000A1001 suitable for use in industrial furnaces?
Yes, the FC1000A1001 is specifically designed for use in multi-burner kilns, furnaces, and industrial heating systems.
Q4: What outputs are available for flame status indication?
The FC1000A1001 provides analog outputs (0–5 VDC or 4–20 mA) and digital outputs (2 dry contact outputs) to indicate flame status.
Q5: What is the warranty for the FC1000A1001?
The FC1000A1001 comes with a 1-year warranty, ensuring reliability and performance in demanding applications.
