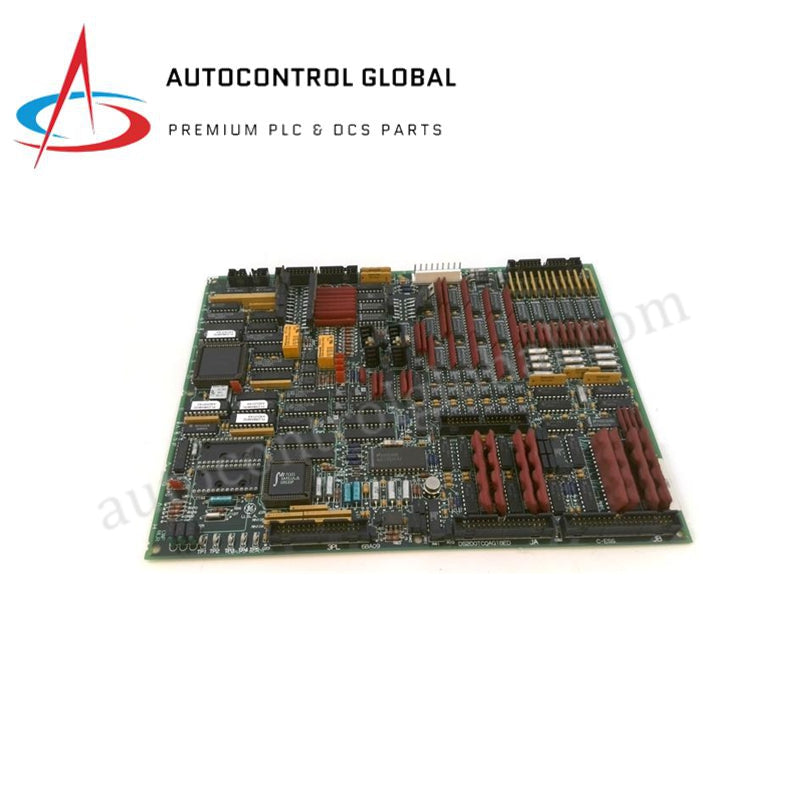

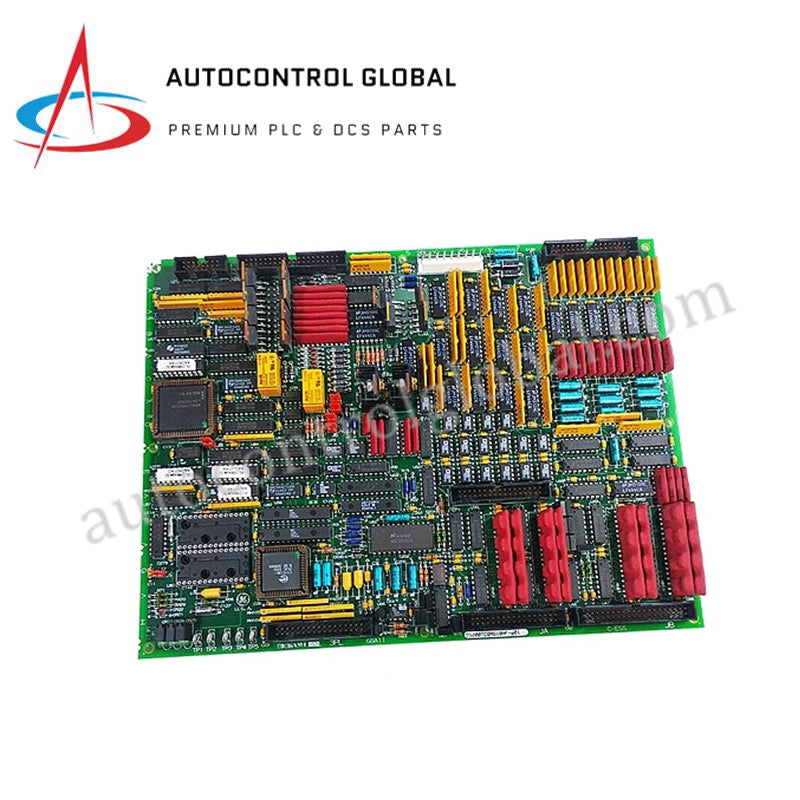

GE Mark V DS200TCQAG1BHF-W01 Analog I/O Sequence Board

Product Description

The DS200TCQAG1BHF-W01 is a high-performance Control Sequence Board (TCQA) developed by General Electric for the Speedtronic Mark V control system. As a primary logic processor, this board is responsible for executing critical turbine sequences, including automated start-up, controlled shutdown, and operational protection logic. By coordinating real-time inputs and outputs between the controller and various terminal boards, the DS200TCQAG1BHF-W01 ensures deterministic control over turbine auxiliaries and core systems.

This board features an onboard microprocessor designed for high-speed logic execution within a real-time environment. It interfaces directly with the Mark V backplane, allowing for seamless communication with neighboring digital and analog processing modules. The "W01" suffix indicates a specific hardware configuration or firmware revision optimized for precision sequencing in utility-scale power generation. To ensure system reliability, the DS200TCQAG1BHF-W01 includes integrated self-test diagnostics and a hardware watchdog timer to monitor the integrity of the logic execution path.

Technical Specifications

• Model Designation: DS200TCQAG1BHF-W01

• System Platform: GE Speedtronic Mark V

• Board Functional Class: TCQA (Control Sequence Board)

• Logic Processor: Embedded industrial-grade microprocessor

• Primary Functions: Turbine sequencing, logic execution, and I/O coordination

• Signal Support: Manages both discrete and analog process variables via backplane

• Redundancy Compatibility: Supports <R>, <S>, and <T> core configurations

• Hardware Diagnostics: Built-in self-test (BIST) and watchdog timer

• Communication Interface: Multi-pin backplane connectors for inter-board data bus

• Operating Temperature: -20 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Board Weight: 900g

• Country of Origin: United States (USA)

• Compliance: IEC 61326-1 (Industrial EMC Standards)

Application & System Strategy

The DS200TCQAG1BHF-W01 is central to the "brain" of the Mark V turbine control panel. It is primarily used to manage the complex timing and interlocks required for gas and steam turbine operations. In a Triple Modular Redundant (TMR) system, three of these boards operate in parallel to provide fault-tolerant sequencing. Because this board manages critical trip logic and start-up curves, it is essential that the hardware revision matches the existing system configuration to ensure software-to-hardware compatibility during replacement.

Frequently Asked Questions

Is the DS200TCQAG1BHF-W01 hot-swappable?No. Replacing or installing the DS200TCQAG1BHF-W01 requires the control rack to be powered down. As a main sequencing processor, removing this board while the system is live will result in an immediate loss of control logic and a potential turbine trip.

What does the "W01" revision signify?The "W01" revision typically refers to a specific factory-installed software/hardware bundle or a modification to the PCB layout designed for better thermal management or component longevity. It is fully backward compatible with standard TCQA boards provided the system's PROM chips are transferred or updated accordingly.
