High-Performance VFD PLC Module | ABB 3BHE009017R0101
Manufacturer: ABB
-
Part Number: 3BHE009017R0101
Condition：New with Original Package
Product Type: High-Performance VFD PLC Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

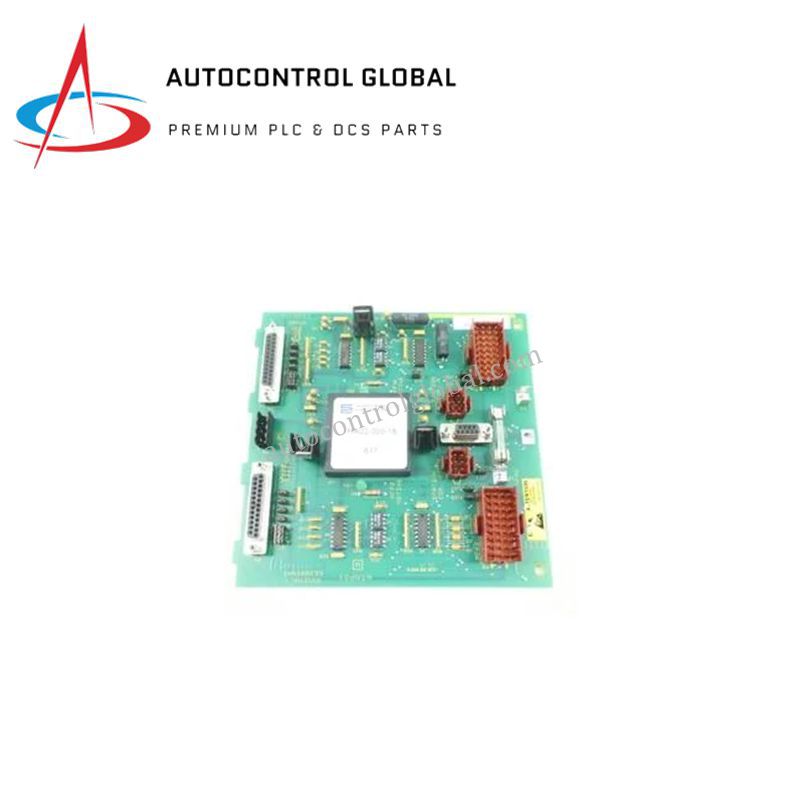

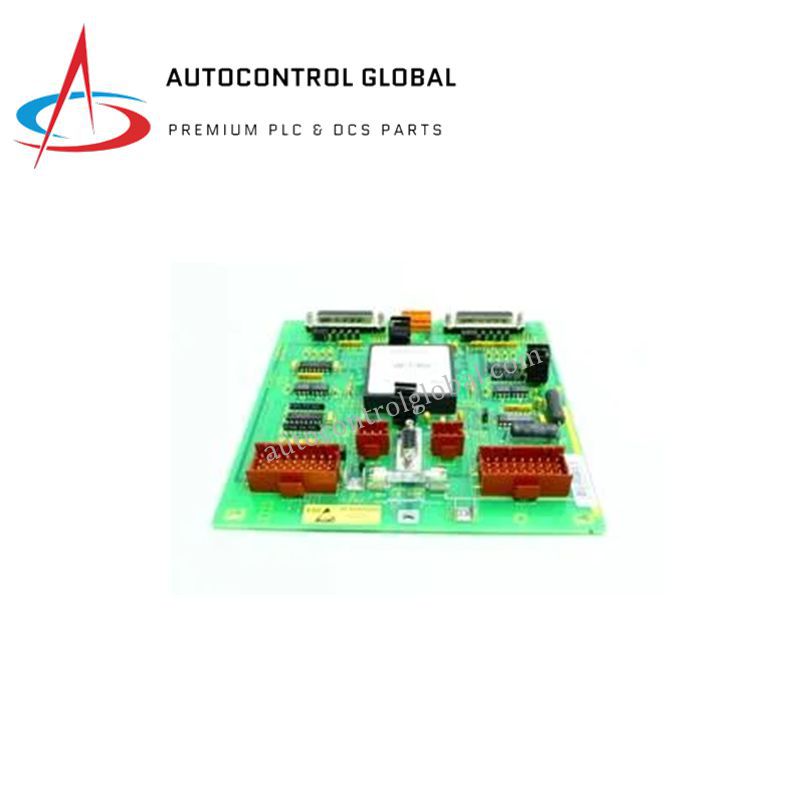

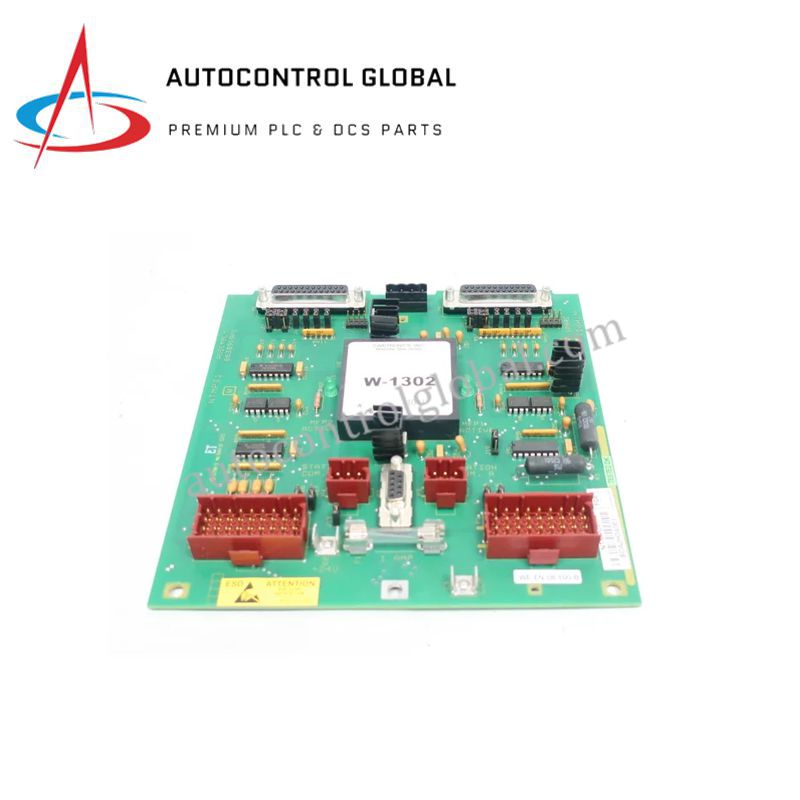

ABB XVC724BE101 | Drive Control Module
Product Description
The ABB XVC724BE101 is a high-performance drive control module designed for ABB high-voltage variable frequency drives (VFDs).
It manages motor operation, power regulation, and protection functions, ensuring precise control of motor speed, torque, and position in demanding industrial environments.
With advanced processing capabilities and robust communication interfaces, this module integrates seamlessly into power generation, petrochemical, and heavy manufacturing systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | XVC724BE101 |
| Part Number | 3BHE009017R0101 |
| Processor | 32-bit ARM Cortex-M3, 400 MHz |
| Memory | 2 GB DDR3 RAM + 128 MB Flash |
| Communication Interfaces | Ethernet, CAN, RS-485 |
| Input Voltage | 24 V AC/DC or 230 V AC (configuration dependent) |
| Output Current Range | 5 A to 40 A |
| Operating Frequency | 5 Hz to 50 Hz |
| Power Consumption | 5 W to 130 W (standby: 1 W to 2 W) |
| Operating Temperature | –40°C to +70°C |
| Installation Altitude | Up to 4000 meters |
| Protection Features | Overcurrent, overvoltage, undervoltage |
| Mounting Type | Panel or DIN rail mount |
| Ingress Protection | IP20 or IP65 |
| Weight | 4.0 kg |
| Country of Origin | Sweden |
| Status | Discontinued by ABB, Radwell 2-year warranty included |
FAQ
Q1: Is the ABB XVC724BE101 new or used?
A1: This unit is used but tested and in good condition; Radwell includes a 2-year warranty.
Q2: What voltage inputs does it support?
A2: The module supports 24 V AC/DC or 230 V AC, depending on configuration.
Q3: Can this module operate in harsh environments?
A3: Yes, it functions from –40°C to +70°C and can be installed at altitudes up to 4000 meters.
Q4: Which applications is this control module suitable for?
A4: Ideal for high-voltage VFDs, motor control, petrochemical, power generation, and heavy manufacturing systems.
Q5: What communication interfaces does it support?
A5: Ethernet, CAN, and RS-485 provide robust integration for industrial automation networks.
