Product Description

Overview

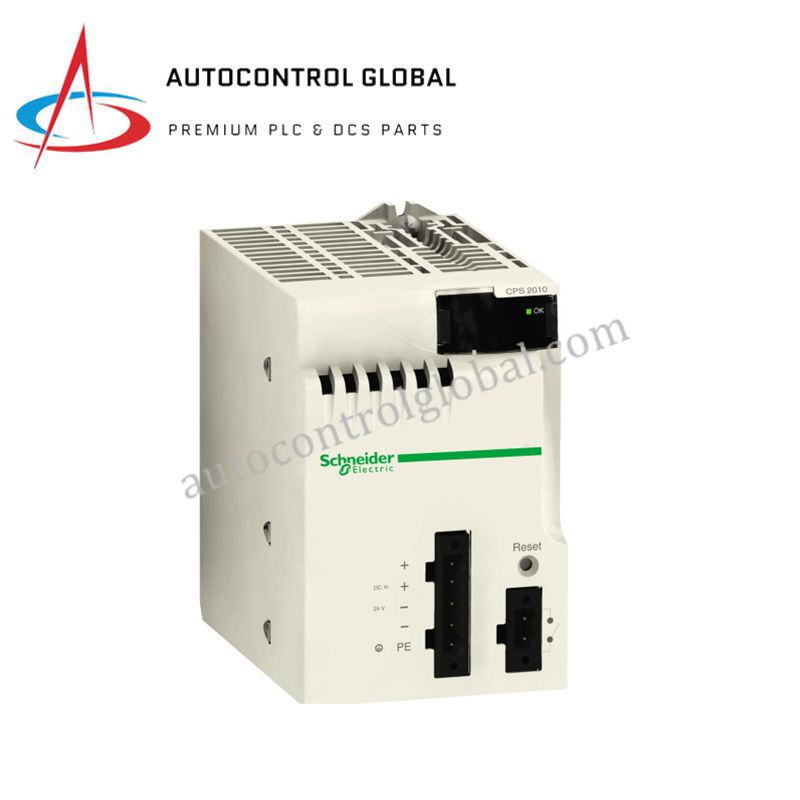

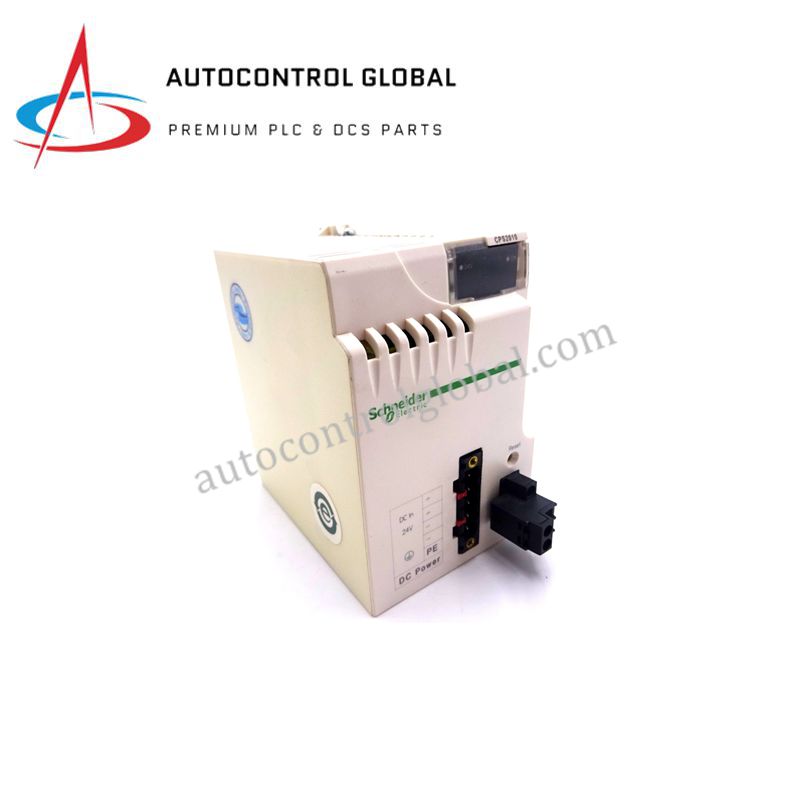

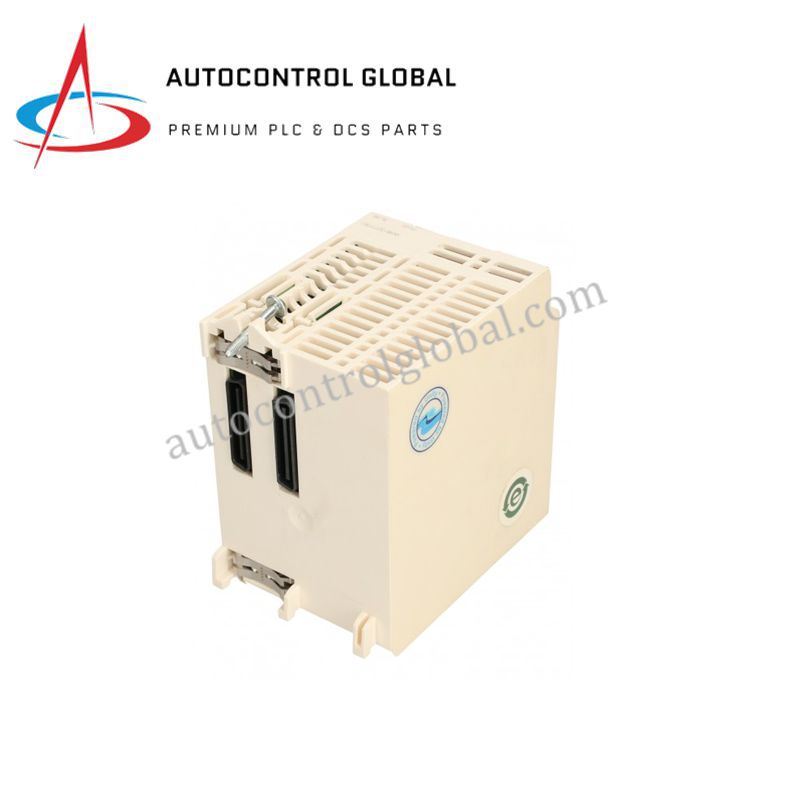

The Schneider BMXCPS2010 is a high-performance 24 V DC power supply module from the Modicon X80 range. Designed for industrial automation, it delivers reliable power to CPUs, communication adapters, and I/O modules. Moreover, its IP20-rated rugged construction ensures continuous operation in harsh environments. The module is fully compatible with both M340 and M580 PAC systems, supporting medium to large process automation applications efficiently.

Technical Specifications

General

• Product Type: Power Supply Module

• Series: Modicon X80

• Model: BMXCPS2010

• Mounting: Panel / Rack mounting

• Weight: 0.29 kg

• Protection Rating: IP20

Electrical

• Nominal Output Voltage: 24 V DC

• Secondary Power: 16.8 W at 24 V DC (I/O modules and CPU)

• Logic Power: 8.3 W at 3.3 V DC

• Output Current: 10 A

• Input Voltage Range: 18–31.2 V DC

• Input Current: 1 A at 24 V

• Maximum Power Dissipation: 8.5 W

• Inrush Current: 30 A at 24 V

• I²t on Activation: 0.6 A².s at 24 V

• Protection Functions: Overload, short-circuit, thermal

• Electrical Connections: 2-pin alarm relay, 5-pin line supply, protective earth, 24 V DC input sensor

Mechanical & Environmental

• Operating Temperature: –25°C to +70°C

• Storage Temperature: –40°C to +85°C

• Altitude: Up to 2000 m standard, 5000 m with derating

Compliance & Certifications

• Standards: IEC, UL, CSA, CE, RCM, EAC, Merchant Navy

FAQ (Text Format)

Q1: What is the output voltage of BMXCPS2010?
It delivers a regulated 24 V DC suitable for powering multiple rack modules.

Q2: Is this module compatible with Modicon M340 or M580 PAC systems?
Yes, it integrates fully with both M340 and M580 controllers.

Q3: What protection features does it provide?
Overload, short-circuit, and thermal protections safeguard connected equipment.

Q4: What is the maximum output current?
The module provides up to 10 A to support multiple modules simultaneously.

Q5: Can it operate in harsh industrial environments?
Yes, it functions reliably from –25°C to +70°C and is IP20 rated.
