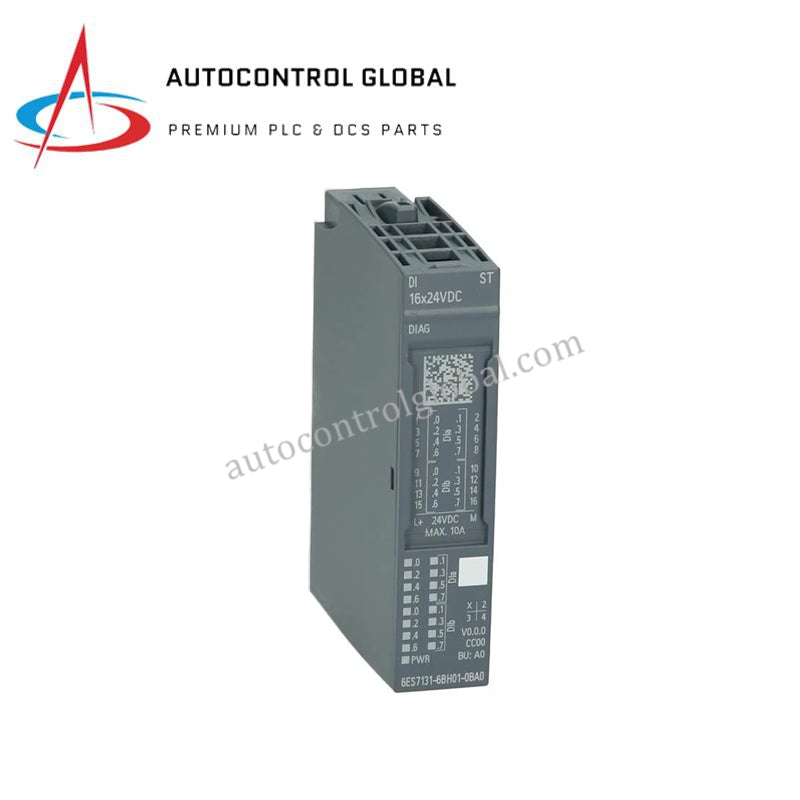

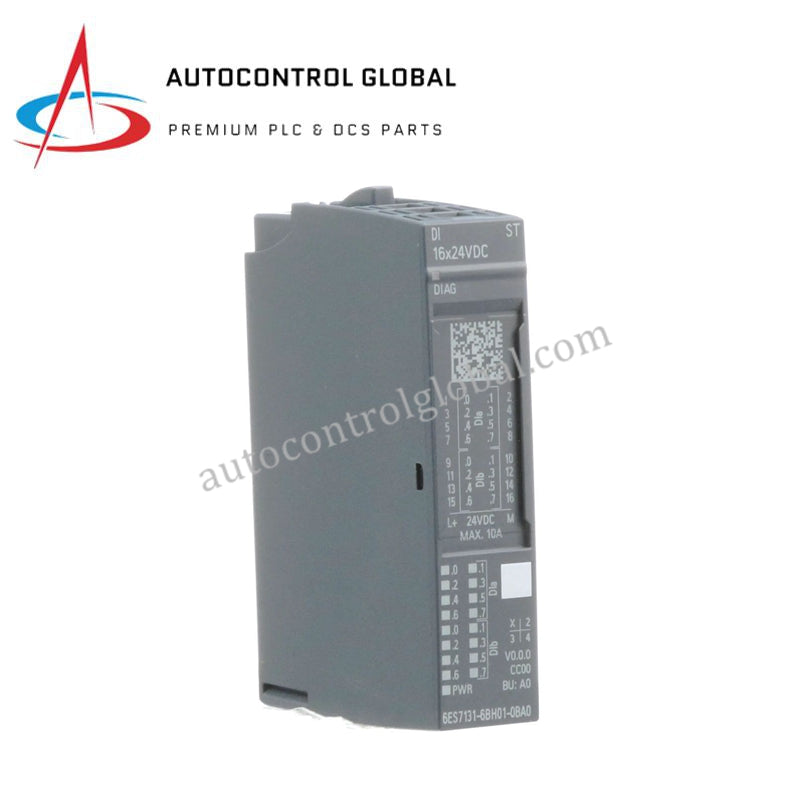

Siemens 6ES7131-6BH01-0BA0 | ET 200SP 16-Channel DI Module

Manufacturer: Siemens
Part Number: 6ES7131-6BH01-0BA0
Condition：New with Original Package
Product Type: 16-Channel DI Module
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Siemens SIMATIC ET 200SP 6ES7131-6BH01-0BA0 Digital Input Module

The 6ES7131-6BH01-0BA0 (Model: DI 16x24VDC ST) is a high-density digital input module designed for the Siemens SIMATIC ET 200SP distributed I/O system. This module features 16 digital input channels, optimized for 24V DC signals, and follows the Type 3 characteristics according to IEC 61131. Engineered for space-saving efficiency, it boasts a compact 15mm width, allowing for maximum I/O density within control cabinets.

As a standard (ST) class module, the 6ES7131-6BH01-0BA0 (Order Number: 6ES7131-6BH01-0BA0) provides essential diagnostic capabilities, including wire break detection and supply voltage monitoring. It utilizes sink input logic (PNP, P-reading) and is compatible with BaseUnit (BU) Type A0. This module is ideal for discrete automation tasks in manufacturing, material handling, and process industries where reliable signal acquisition and fast response times are critical.

Detailed Technical Specifications

The 6ES7131-6BH01-0BA0 (Model: 6ES7131-6BH01-0BA0) offers precise digital signal processing within a modular architecture.

Feature	Details
Manufacturer	Siemens
Product Series	SIMATIC ET 200SP
Model Number	6ES7131-6BH01-0BA0
Product Type	Digital Input Module (DI)
Number of Inputs	16 Channels
Input Voltage	24 V DC (Permissible range: 19.2V to 28.8V)
Input Characteristic	Type 3 (IEC 61131)
Input Logic	Sink Input (PNP, P-reading)
Input Delay Time	Adjustable: 0.05 ms to 20 ms
Diagnostics	Wire break, supply voltage monitoring
Compatible BaseUnit	BU type A0
Color Code	CC00
Current Consumption	90 mA (max.)
Power Loss	1.7 W (typical)
Dimensions (W x H x D)	15 mm x 73 mm x 58 mm
Net Weight	0.028 kg (28g)
