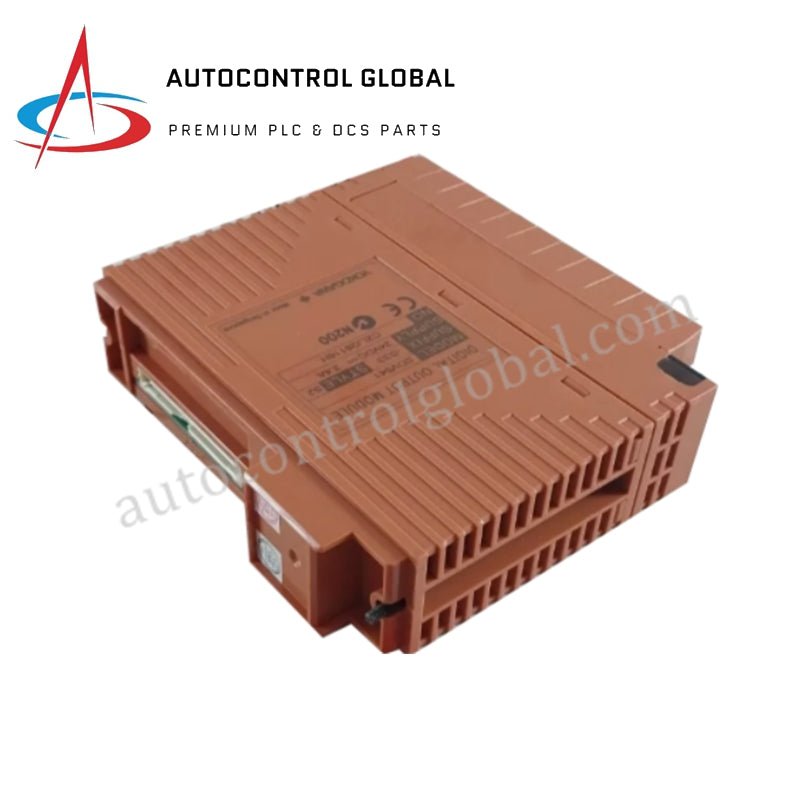

Yokogawa SDV541-S33 16-Channel Digital Output Module
Manufacturer: Yokogawa
-
Part Number: SDV541-S33
Condition：New with Original Package
Product Type: Digital Output Module
-
Country of Origin: Japan
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The SDV541-S33 from Yokogawa is a 16-channel digital output module with isolated outputs.
Output Specifications
-
Number of outputs: 16, isolated
-
Output voltage: 24 V DC
-
Output voltage drop: 1 V max
-
External power supply: 24 V DC ±20 %, 3.4 A min
-
Current capacity: 3.4 A
-
Maximum leakage current (OFF): 1.6 mA
-
Output format: Current source
-
Maximum load current: 0.2 A per output (3.2 A total)
-
Minimum load current: 35 mA
-
Load resistance range: 120–685 Ω
-
Output response time: 30 ms max
Electrical Protection
-
Withstand voltage: 2 kV AC between output lines and system for 1 minute
-
Current consumption: 300 mA max (5 V DC), 150 mA max (24 V DC)
