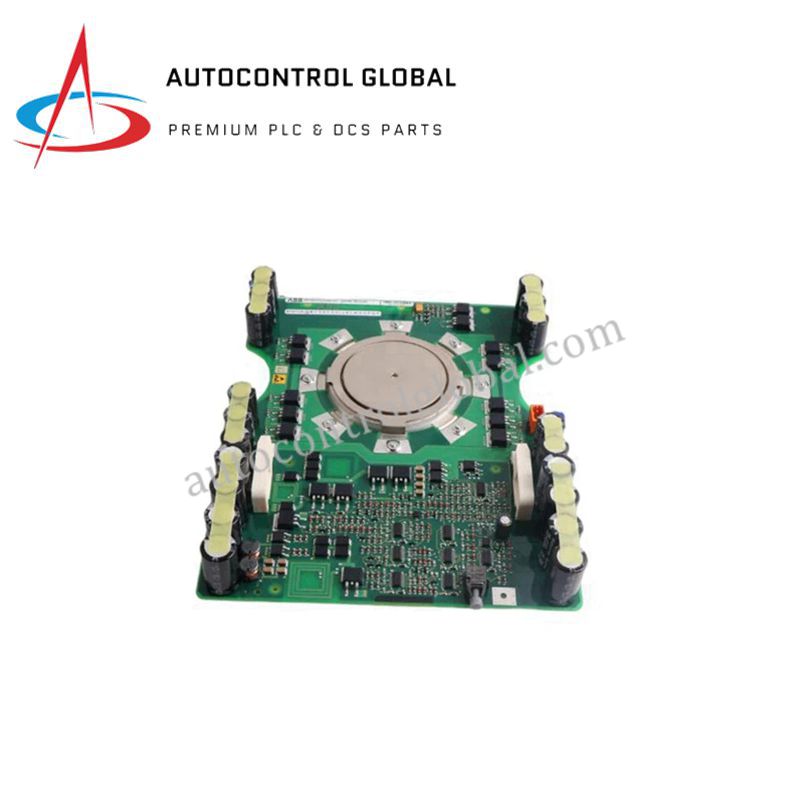

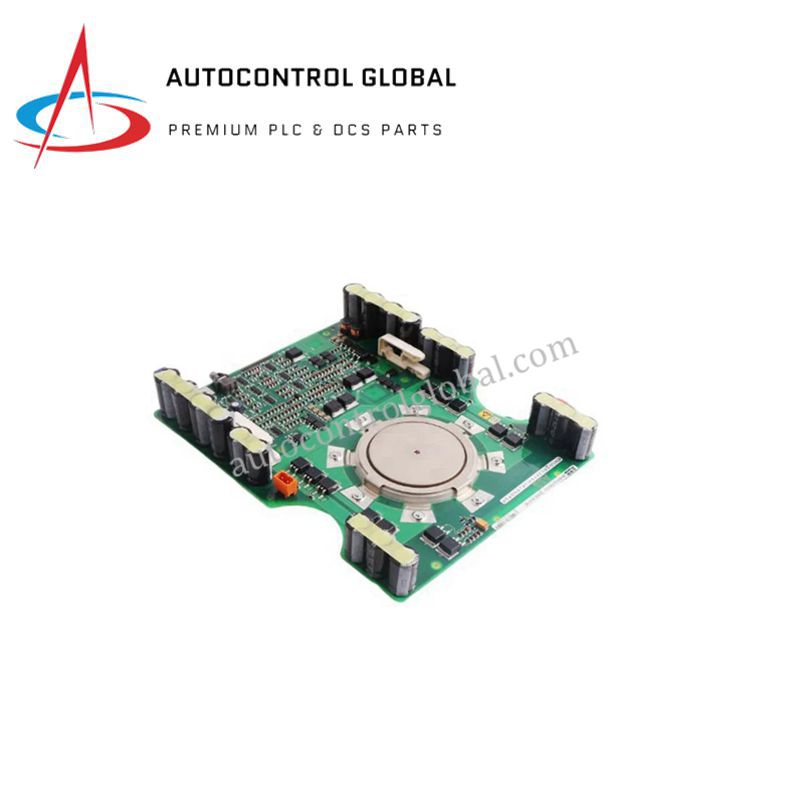

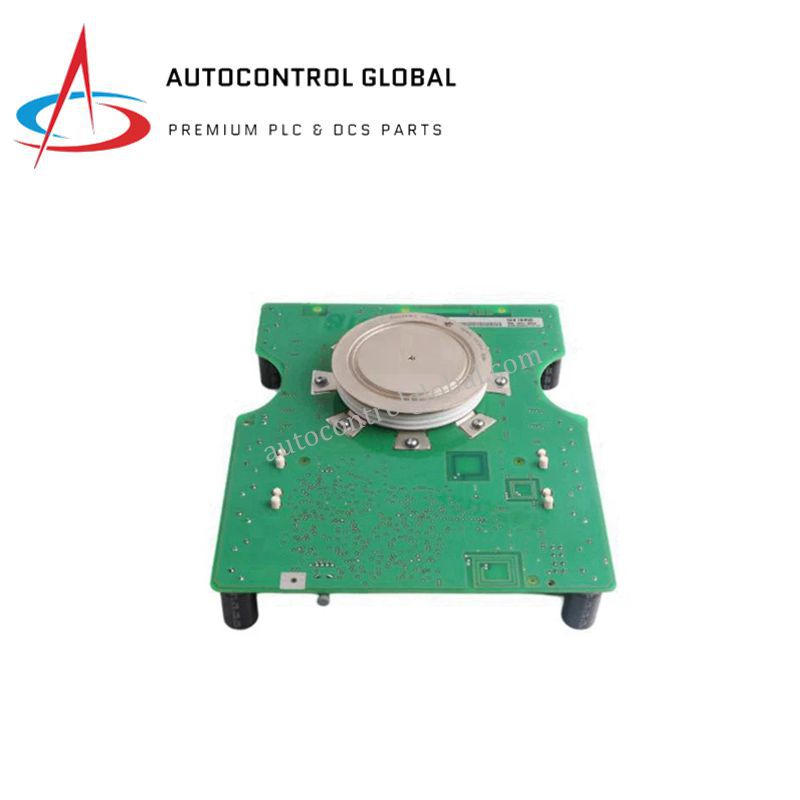

3BHB013085R0001 ABB IGCT Module | Industrial Power Control Unit
Manufacturer: ABB
-
Part Number: 3BHE009681R0101
Condition：New with Original Package
Product Type: Industrial Power Control Unit
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The ABB 3BHE009681R0101 GVC750BE101, together with 3BHB013085R0001 and 5SHY3545L0009, represents ABB’s high-performance IGCT/IGBT power module lineup for advanced industrial power conversion. Designed for motor drives, HVDC systems, and power converters, these modules combine high efficiency, rapid switching, and superior thermal stability for reliable long-term operation.
Each module integrates IGCT (Integrated Gate-Commutated Thyristor) or IGBT (Insulated Gate Bipolar Transistor) technology to deliver high current capacity and low switching losses. These models are optimized for use in oil & gas, heavy machinery, and power generation environments, offering unmatched durability and energy efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model Numbers | 3BHE009681R0101, 3BHB013085R0001, 5SHY3545L0009 |
| Manufacturer | ABB |
| Series | GVC750BE101 |
| Product Type | IGCT / IGBT Power Module |
| Technology | Integrated Gate-Commutated Thyristor (IGCT) / Insulated Gate Bipolar Transistor (IGBT) |
| Control Voltage | 24 V DC nominal |
| Switching Frequency | Up to 2 kHz (application dependent) |
| Conduction Loss | Low-loss semiconductor design |
| Thermal Resistance | Optimized for efficient heat dissipation |
| Cooling Type | Air or liquid-cooled (depending on system) |
| Mounting Type | Panel or rack-mounted |
| Dimensions | 250 mm × 120 mm × 65 mm (approx.) |
| Weight | 1.8 kg |
| Operating Temperature | –40 °C to +85 °C |
| Insulation Voltage | 2500 V RMS |
| Country of Origin | Sweden / Germany |
| Condition | Brand New & Factory Sealed |
FAQs
Q1: Are these ABB modules original and unused?
A1: Yes, all modules — 3BHE009681R0101, 3BHB013085R0001, and 5SHY3545L0009 — are brand new and factory-sealed original ABB parts.
Q2: What type of applications use these power modules?
A2: They are ideal for HVDC systems, motor drives, industrial converters, and renewable power control.
Q3: Do these modules support both air and liquid cooling?
A3: Yes, ABB designs these modules for flexible cooling configurations based on the system environment.
Q4: What is the delivery time and shipping method?
A4: We have in-stock units ready to ship via DHL, FedEx, or UPS within 3–14 days, depending on order volume.
Q5: What is your warranty and return policy?
A5: All ABB modules include a 12-month warranty, and returns for quality issues are accepted within 30 days of delivery.
