CC-IP0101 Honeywell | Fieldbus Gateway for DCS Networks

Product Description

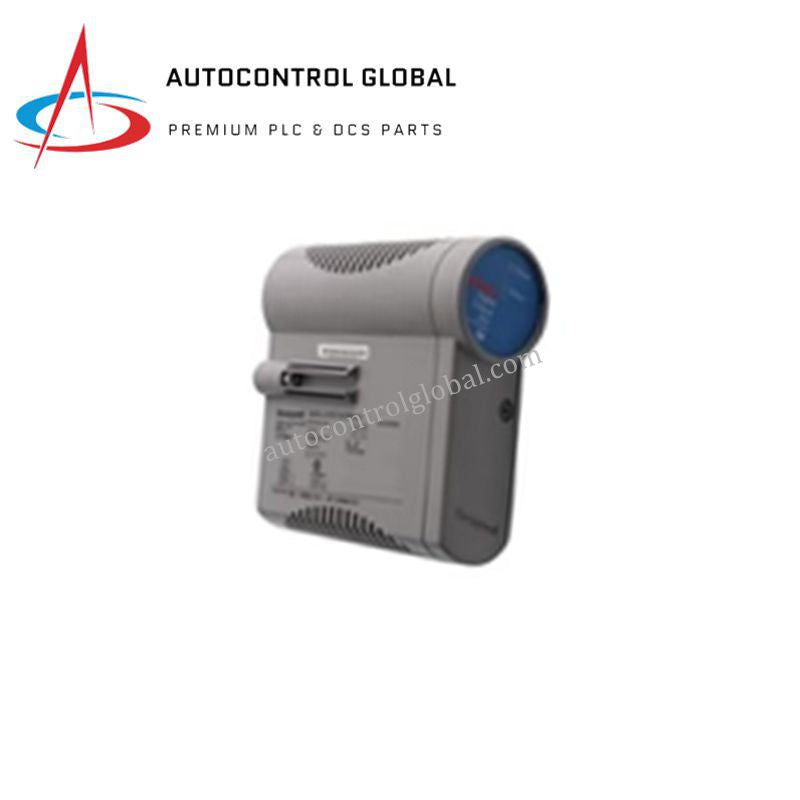

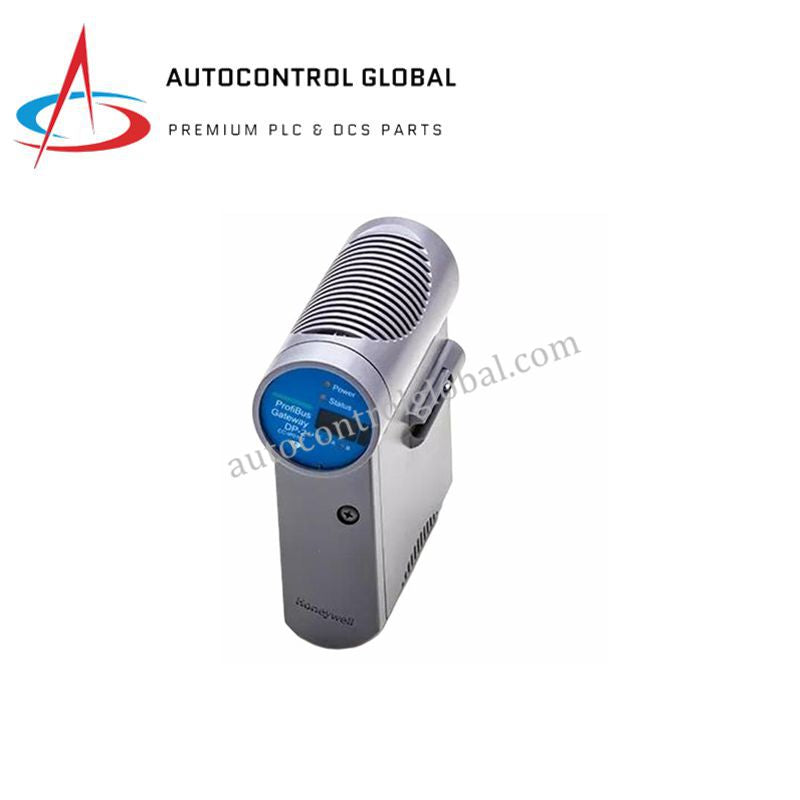

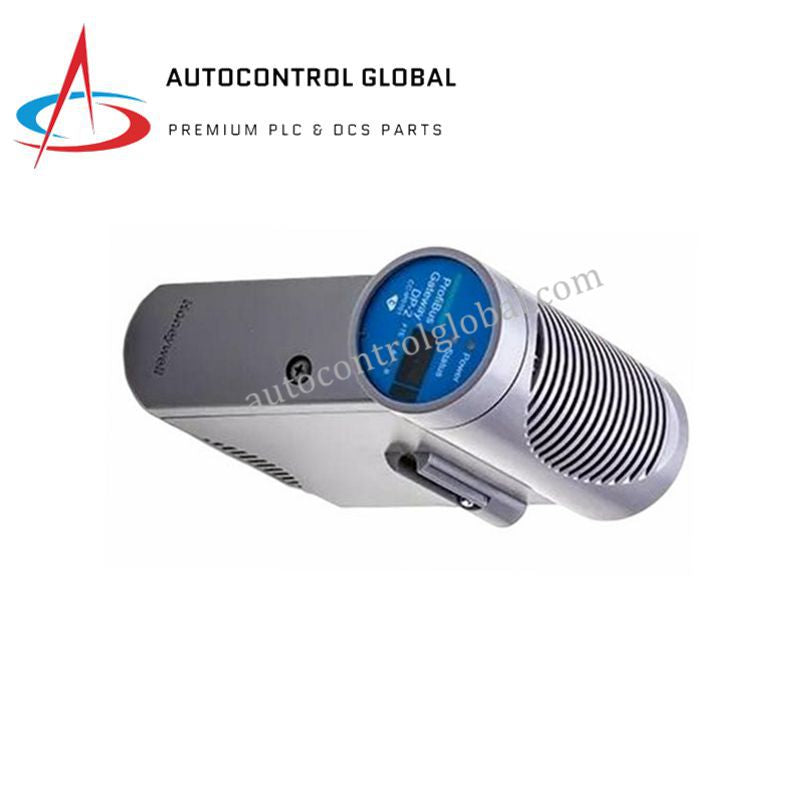

The Honeywell CC-IP0101 communication interface module (Part No. 51410056-175) enables secure and high-performance connectivity between Profibus DP field devices and modern Ethernet-based automation networks. It serves as a reliable gateway for Honeywell DCS platforms, offering stable data transfer even in demanding industrial environments. Moreover, its protocol flexibility allows seamless integration with multiple control architectures, making it a practical option for facilities undergoing modernization or expansion.

The module supports open protocols such as BACnet/IP, Modbus TCP, and OPC UA, providing engineers with wide compatibility across SCADA, PLC, and building automation systems. In addition, its dual Ethernet ports allow redundant network topologies, ensuring continuous communication during link failures or network maintenance. The robust operating temperature rating and industrial certifications make this device suitable for harsh process-industry conditions.

Technical Specifications

Attribute — Specification

• Model: CC-IP0101

• Part Number: 51410056-175

• Type: Industrial Communication Controller / Profibus DP Gateway

• Input Voltage: 24 V DC (18–32 V range)

• Power Consumption: ~6 W

• Communication Protocols: BACnet/IP, Modbus TCP, OPC UA, Profibus DP

• Ethernet Ports: 2 × 10/100 Mbps (redundant)

• Memory: 512 MB Flash, 1 GB DDR3 RAM

• Operating Temperature: –40°C to +70°C

• Certifications: UL 916, CE, ATEX Zone 2

• Enclosure Rating: IP40 (terminals), IP20 (overall)

• Dimensions (W × H × D): 120 × 90 × 60 mm

• Weight: 1.9 kg (some inventories list 0.88 kg)

• Country of Origin: USA

• Applications: Process automation, building automation, industrial networking

FAQ

Q1: What is the main function of the Honeywell CC-IP0101 module?
A1: It functions as a gateway that connects Profibus DP field devices to Ethernet-based DCS or SCADA networks.

Q2: Which communication protocols are supported?
A2: The module supports BACnet/IP, Modbus TCP, OPC UA, and Profibus DP, allowing integration with many automation platforms.

Q3: Does the module support redundant networking?
A3: Yes, it includes dual Ethernet ports for redundant ring or failover configurations.

Q4: Can it operate in harsh environments?
A4: Yes, it supports temperatures from –40°C to +70°C and meets UL, CE, and ATEX Zone 2 requirements.

Q5: Is the module compatible with Honeywell DCS systems?
A5: It is designed specifically for Honeywell DCS and industrial control environments, ensuring smooth integration and reliable performance.
