DI814 ABB | 16-Channel Digital Input Module for Industrial Automation
Manufacturer: ABB
-
Part Number: DI814
Condition:New with Original Package
Product Type: 16-Channel Digital Input Module for Industrial Automation
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

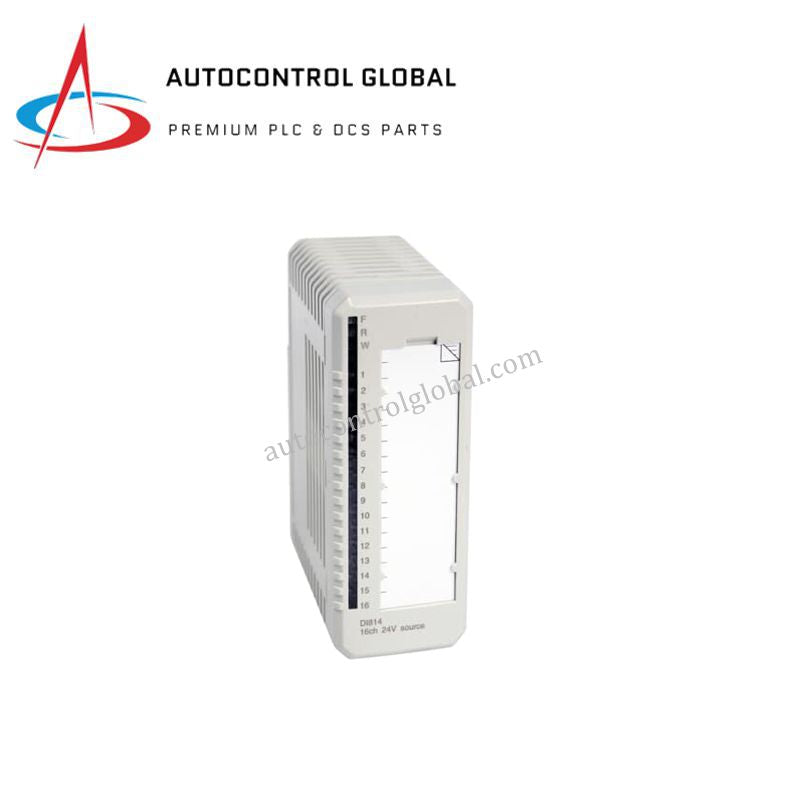

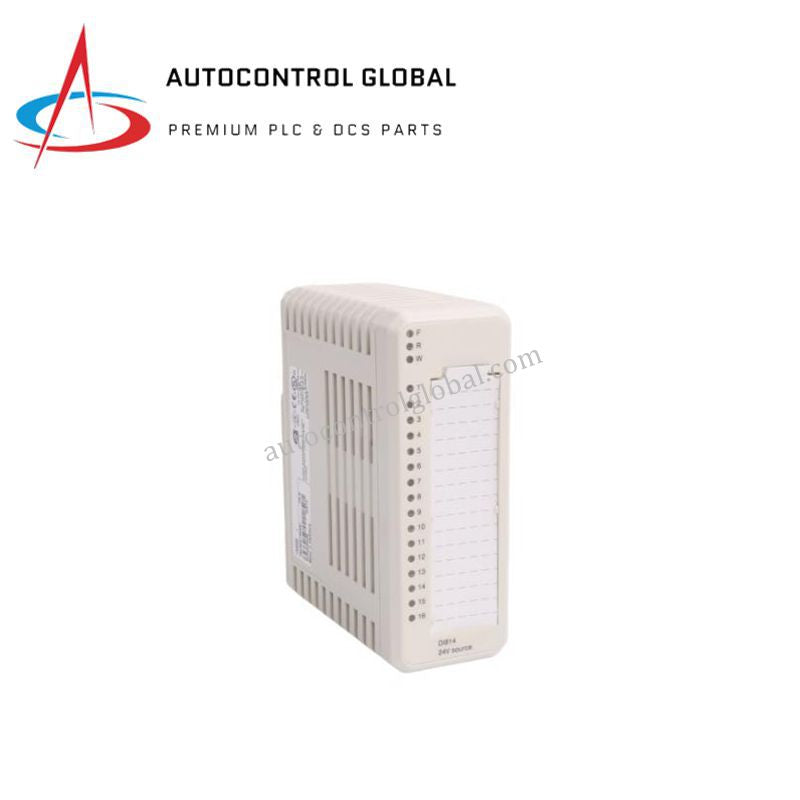

ABB DI814 Digital Input Module
Overview
The ABB DI814 is a high-performance digital input module for ABB’s 800xA S800 I/O system.
It provides 16 channels for 24 V DC signals, making it ideal for industrial automation, process control, and machine monitoring.
The module features two isolated groups of eight channels, with voltage supervision for accurate diagnostics.
Each input channel includes current limiting, EMC protection, LED status indicators, and an optical isolation barrier, ensuring safe operation in harsh environments.
It is DIN rail mountable via compatible MTUs, supporting fast installation and reliable system integration.
Technical Specifications
Specification | Details |
---|---|
Model Number | DI814 |
Part Number | 3BUR001454R1 |
Product Type | Digital Input Module |
Number of Channels | 16 digital inputs |
Input Voltage Range | 18–30 V DC |
Nominal Input Voltage | 24 V DC |
Input Current | 6 mA at 24 V DC |
Input Type | Current sourcing |
Isolation Groups | 2 groups of 8 channels each |
Voltage Supervision | Yes, per group |
Status Indicators | LED per channel |
Mounting Type | DIN rail via MTU: TU810V1, TU812V1, TU814V1, TU830V1, TU838 |
Dimensions (W × D × H) | 45 mm × 102 mm × 119 mm |
Weight | 0.15 kg |
System Compatibility | ABB S800 I/O, 800xA DCS |
Country of Origin | Sweden |
Application Areas | Industrial automation, process control, factory monitoring |
FAQs
Q1: How many channels does the ABB DI814 module support?
✅ The DI814 provides 16 digital input channels, divided into two isolated groups of eight.
Q2: What is the input voltage range for this module?
✅ The module supports 18–30 V DC, with a nominal operating voltage of 24 V DC.
Q3: Does the DI814 provide status indication for each channel?
✅ Yes, each input channel includes an LED indicator for signal state monitoring.
Q4: Can this module be mounted on DIN rails?
✅ Yes, it is DIN rail mountable using compatible MTU units like TU810V1 or TU814V1.
Q5: What protection features does the DI814 include?
✅ Each input channel has current limiting, EMC protection, optical isolation, and voltage supervision per group.
