DSQC541 ABB Backplane | Reliable Power & Communication Board

Product Description

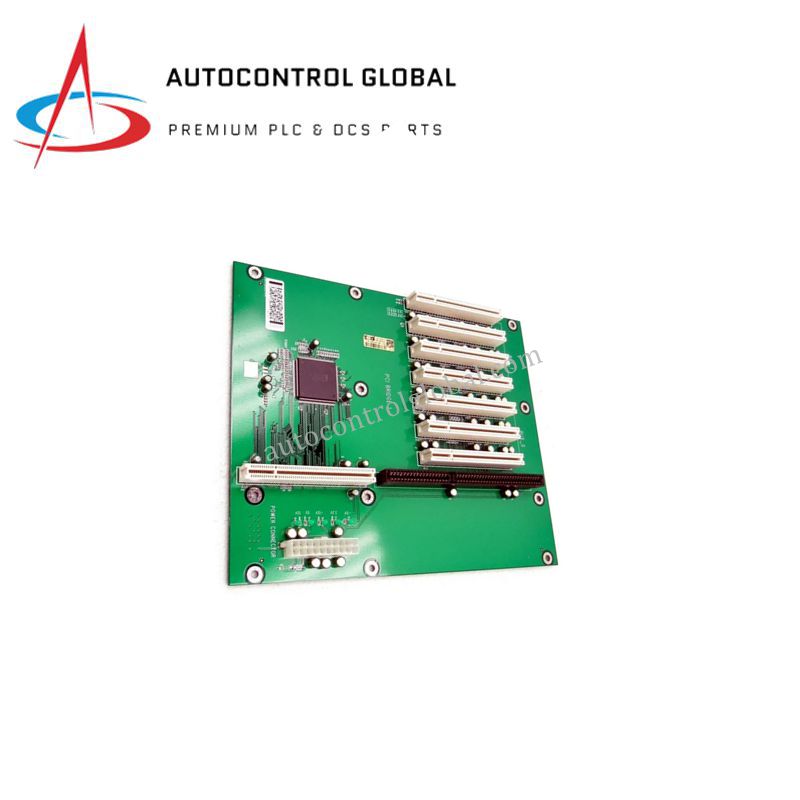

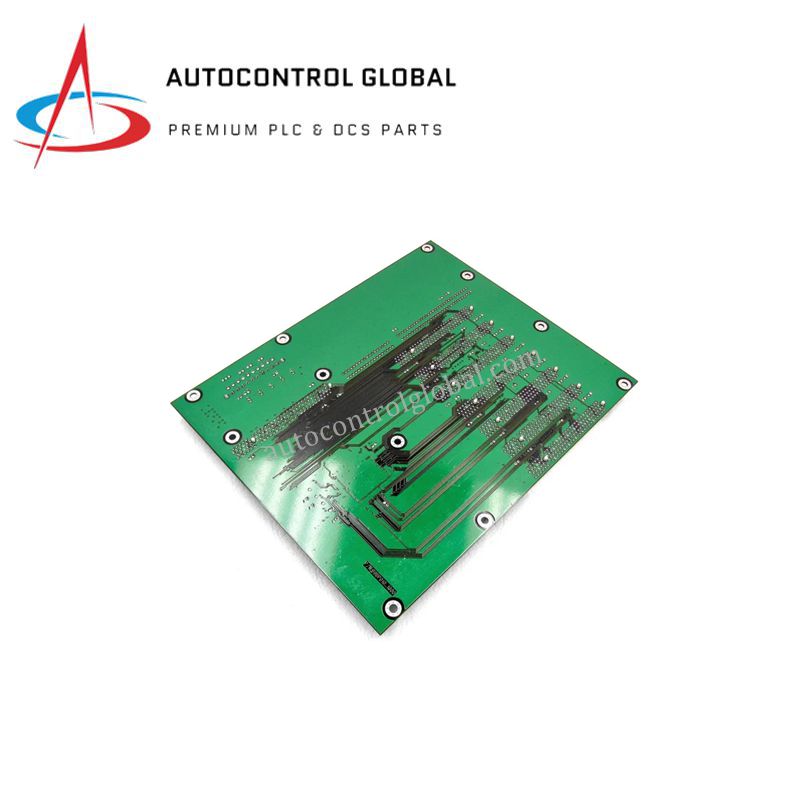

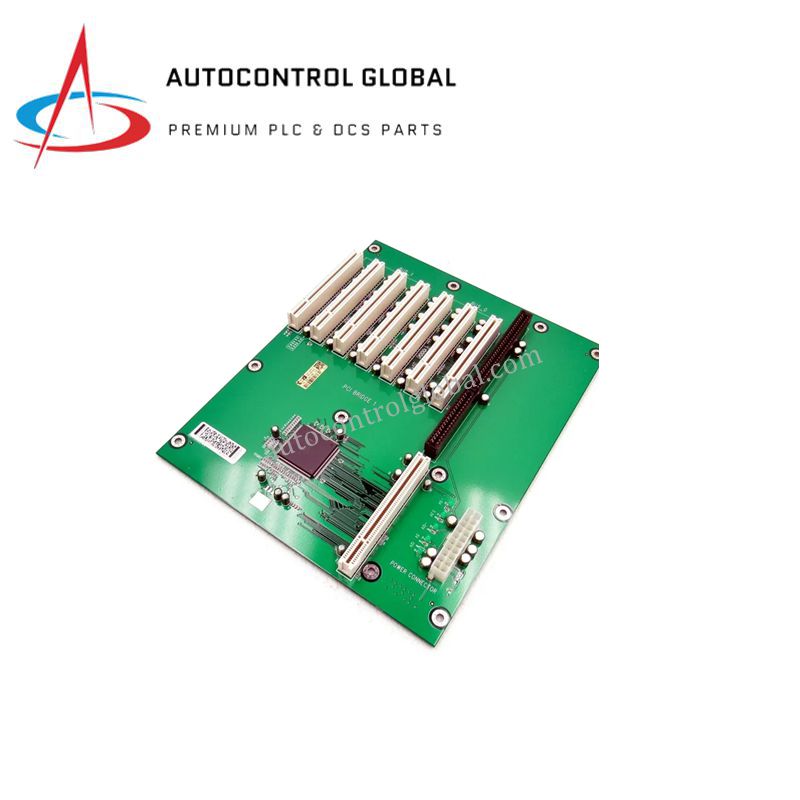

The ABB DSQC 541 Backplane is a core system module designed for stable communication and power distribution inside ABB robot controllers. It serves as the primary interface backbone, linking critical controller boards and connected devices with consistent signal integrity. Moreover, its durable construction ensures reliable operation in high-demand industrial environments where continuous performance is essential.

This backplane integrates seamlessly with ABB S4 and IRC5 controller architectures, allowing each module to communicate efficiently without complex wiring. In addition, the 3HAC14363-1 design supports smooth upgrades and direct replacements, which helps maintain long-term equipment stability while reducing integration effort. Its precise layout and robust electrical design make it a trusted component in advanced automation platforms.

Technical Specifications

• Model: DSQC 541

• Part Number: 3HAC14363-1

• Type: Backplane Module

• System Compatibility: ABB S4 / IRC5 robot controllers

• Function: Communication and power distribution backplane

• Interfaces: Supports PROFIBUS, CANopen (based on configuration)

• Dimensions: 253.5 × 207 × 18 mm

• Net Weight: 0.36 kg

• Gross Weight: 0.36 kg

• Country of Origin: Germany

• Customs Tariff Number: 85389099

• WEEE Category: Not in WEEE scope

• Frame Size: Spare_Parts

• Stock Locations: Germany, China

• Replacement Product ID: 3HAC3617-1

FAQ

Q: Is the DSQC 541 compatible with all ABB robot controllers?
A: It works with ABB S4 and IRC5 systems, offering stable communication inside supported controller versions.

Q: Is this backplane difficult to install?
A: Installation is straightforward because the module fits directly into the controller rack without additional adjustments.

Q: Does the unit support both communication and power distribution?
A: Yes, the module manages both functions, ensuring reliable signal routing and consistent electrical supply.

Q: Is 3HAC14363-1 the same as DSQC 541?
A: Yes, 3HAC14363-1 is the ordering code for the DSQC 541 backplane assembly.

Q: Does this backplane support expansion modules?
A: It supports modular configurations, allowing various ABB interface and I/O boards to connect efficiently.
