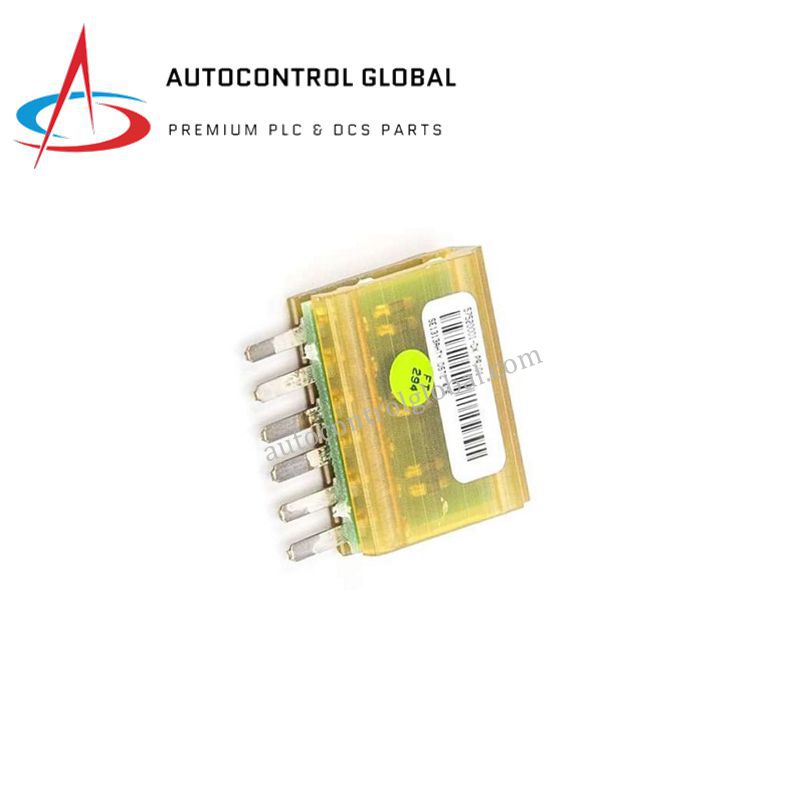

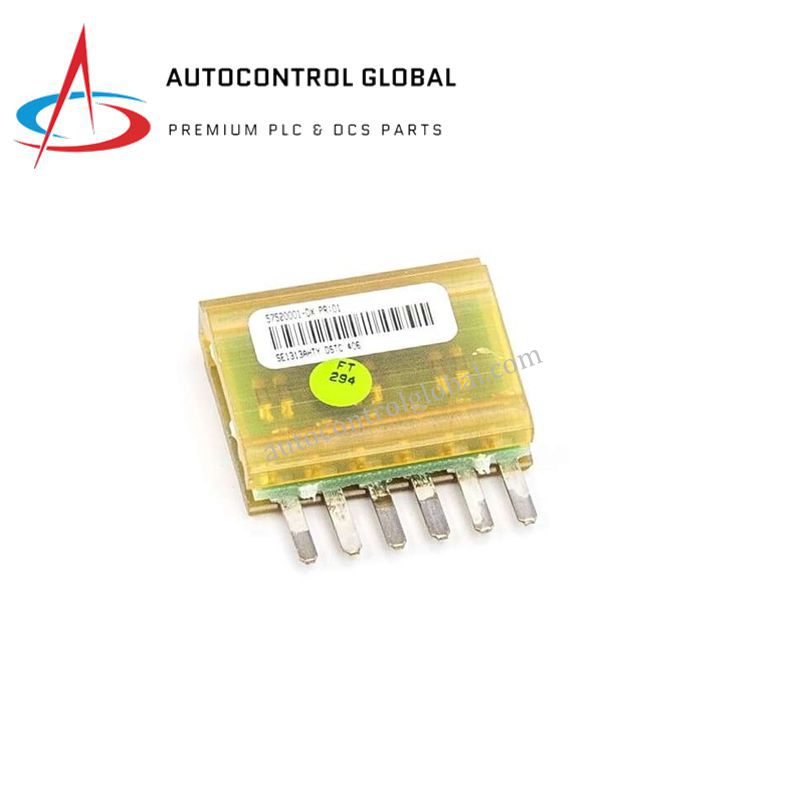

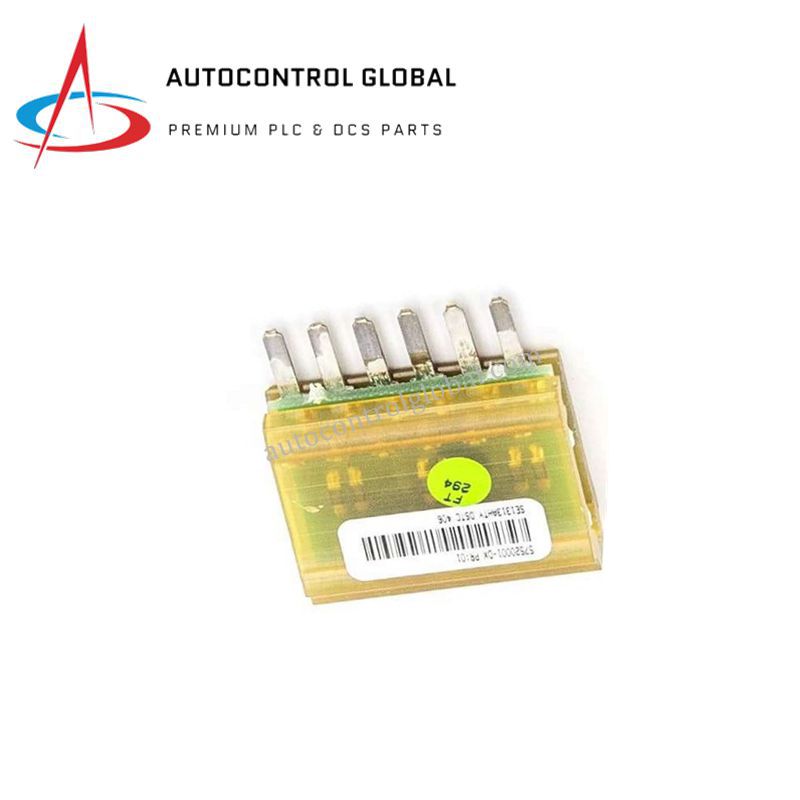

DSTC406 | ABB Passive Terminating Unit for Advant Master
Manufacturer: ABB
-
Part Number: DSTC406 57520001-DX
Condition：New with Original Package
Product Type: Passive Terminating Unit for Advant Master
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description
The ABB DSTC406 is a Passive Terminating Unit designed for use in ABB Advant Master and Symphony Plus DCS systems. This lightweight, compact unit ensures reliable communication by providing termination resistance on the System Data Bus (SDB) side when the DSTC452 modem is the final device in the system. By preventing signal reflections and minimizing communication errors, the DSTC406 enhances the integrity of the system's communication.
This passive module is essential in maintaining error-free communication across the system bus, making it a crucial component in systems that require consistent and stable signal transmission. It is easy to install, with a plug-in or cabinet installation option, and operates within a wide temperature range, making it suitable for industrial environments.
Key Highlights:
-
Passive Terminating Unit for ABB Advant Master / Symphony Plus systems.
-
Provides termination resistance on the SDB side when used with the DSTC452 modem.
-
Prevents signal reflections and communication errors, ensuring reliable system communication.
-
Compact and lightweight design for easy installation.
-
12-month warranty included.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | DSTC406 |
| Part Number | 57520001-DX |
| Type | Passive Terminating Unit |
| System Compatibility | ABB Advant Master / Symphony Plus DCS |
| Function | Provides bus termination on SDB side with DSTC452 modem |
| Weight | 25 g |
| Mounting | Plug-in / cabinet installation |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Class | IP20 |
| Country of Origin | Sweden |
| Compliance | Exempt from RoHS 2011/65/EU scope |
FAQ
Q: What is the purpose of the ABB DSTC406?
A: The DSTC406 is a passive terminating unit used to ensure reliable communication in ABB Advant Master and Symphony Plus DCS systems by providing termination resistance on the System Data Bus (SDB) side when the DSTC452 modem is the final device.
Q: How does the ABB DSTC406 work?
A: The DSTC406 prevents signal reflections and communication errors by providing termination resistance on the SDB side, ensuring stable and error-free communication across the system bus.
Q: What is the mounting option for the ABB DSTC406?
A: The DSTC406 can be mounted either plug-in or inside a cabinet for easy installation in control systems.
Q: Is the ABB DSTC406 suitable for all industrial environments?
A: Yes, the DSTC406 is designed to operate within a temperature range of –20 °C to +55 °C, making it suitable for a wide range of industrial applications.
Q: What are the warranty and compliance details for the ABB DSTC406?
A: The DSTC406 comes with a 12-month warranty and is exempt from RoHS 2011/65/EU scope.
