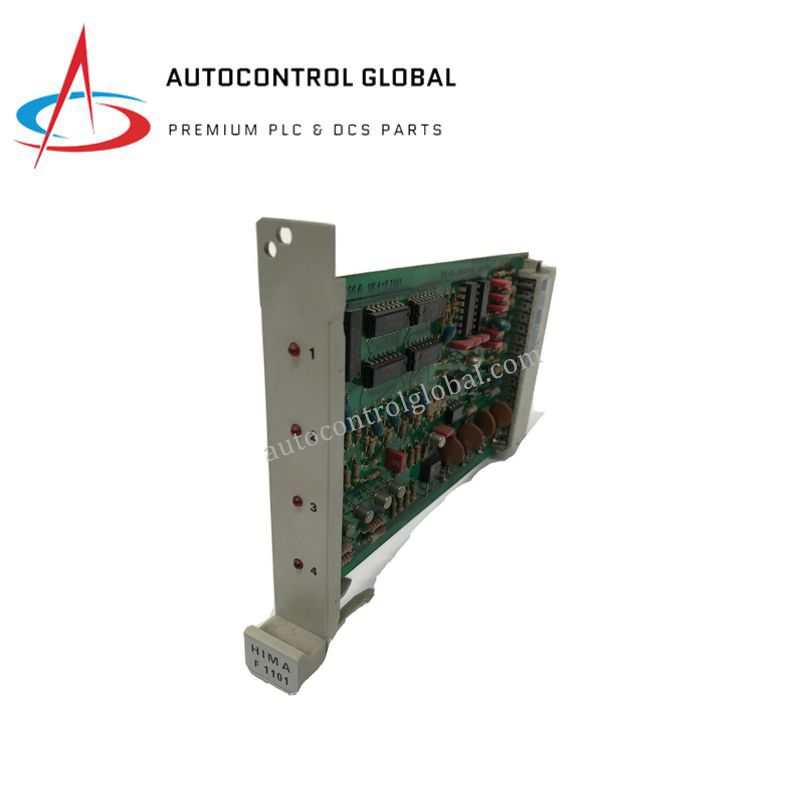

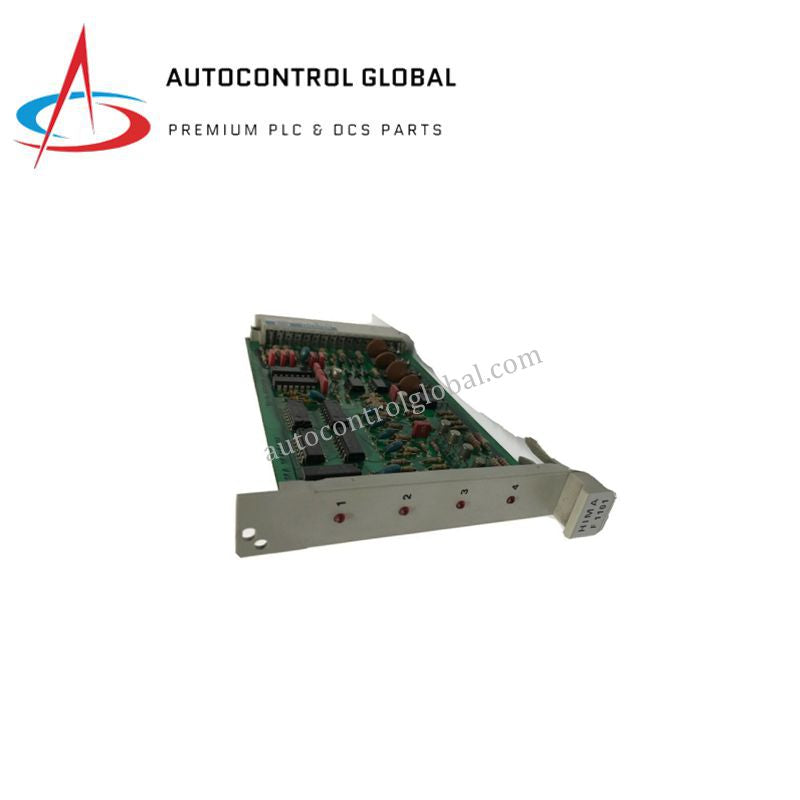

F1101 | HIMA Safety Control Board with 64 Digital Inputs
Manufacturer: HIMA
-
Part Number: F1101
Condition：New with Original Package
Product Type: Safety Control Board with 64 Digital Inputs
-
Country of Origin: Germany
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description / Overview
The HIMA F1101 is a high-reliability switching amplifier module designed for safety-critical industrial automation. Developed by HIMA Paul Hildebrandt GmbH, it is specifically compatible with H41q and H51q PES controllers, providing seamless integration into systems requiring maximum operational safety.
This module supports 64 safety-related digital inputs from contact makers or two-wire proximity switches, ensuring precise signal acquisition for critical interlock and emergency shutdown systems. Moreover, its quadruple modular redundancy (QMR) architecture guarantees fault-tolerant performance and high system availability.
The F1101 is rack-mounted and supports PC-based configuration, real-time monitoring, and event logging, enabling engineers to optimize system performance while maintaining SIL 3 compliance according to IEC 61508 standards.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | F1101 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| System Compatibility | HIMA H41q / H51q PES systems |
| Function | Switching Amplifier Module |
| Digital Inputs | 64 channels, 24 V DC |
| Input Devices | Contact makers, 2-wire proximity switches |
| Supply Outputs | 8 (S1+ to S8+), short-circuit-proof, each feeding 8 inputs |
| Redundancy Architecture | Quadruple Modular Redundant (QMR) |
| Safety Certification | SIL 3 (IEC 61508) |
| Diagnostics | Input monitoring, short-circuit detection |
| Configuration | PC-based with monitoring and event logging |
| Mounting Type | Rack-mounted |
| Operating Temperature | −20°C to +60°C |
| Certifications | CE, FCC |
| Country of Origin | Germany |
FAQ
Q1: Which controllers is the F1101 compatible with?
A1: It is compatible with HIMA H41q and H51q PES controllers.
Q2: How many digital input channels does the module support?
A2: The F1101 supports 64 safety-related digital input channels.
Q3: Can this module operate in harsh industrial environments?
A3: Yes, it operates reliably from −20°C to +60°C.
Q4: Does the module provide redundancy?
A4: Yes, it features Quadruple Modular Redundancy (QMR) for fault-tolerant operation.
Q5: What safety certification does the module have?
A5: The F1101 is SIL 3 certified according to IEC 61508 standards.
