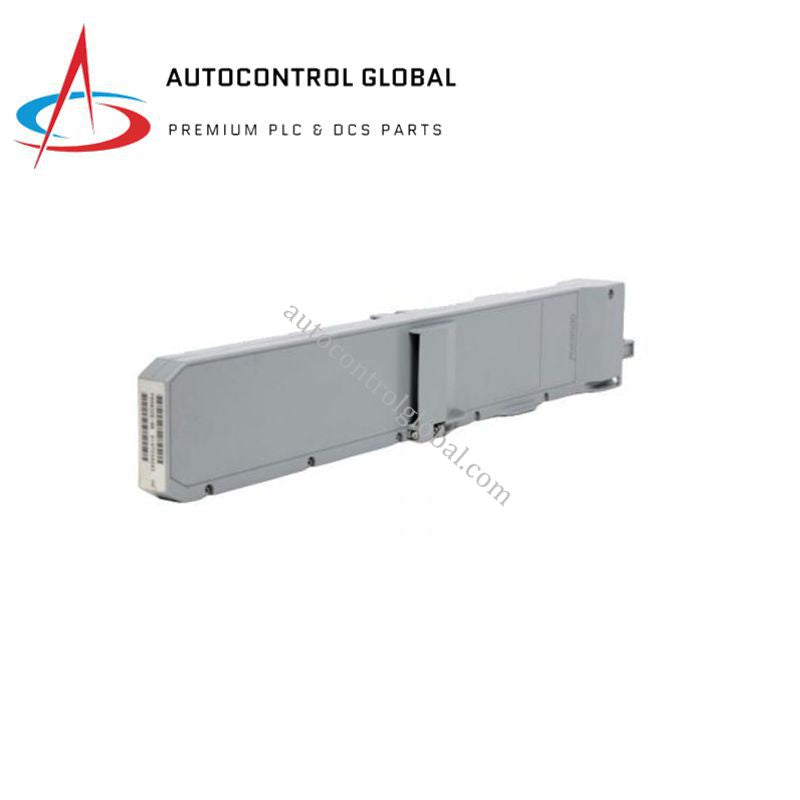

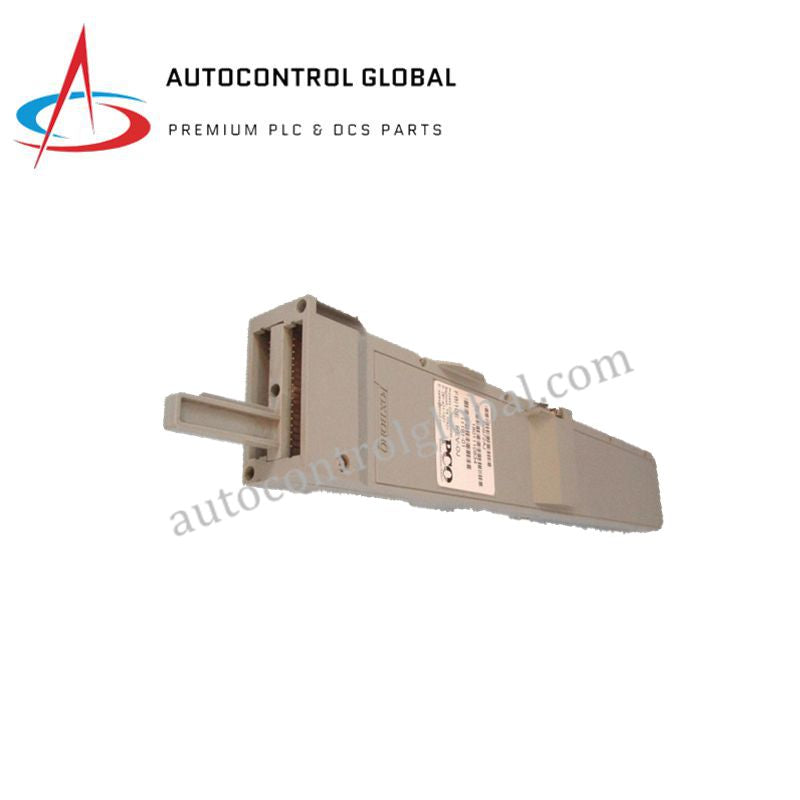

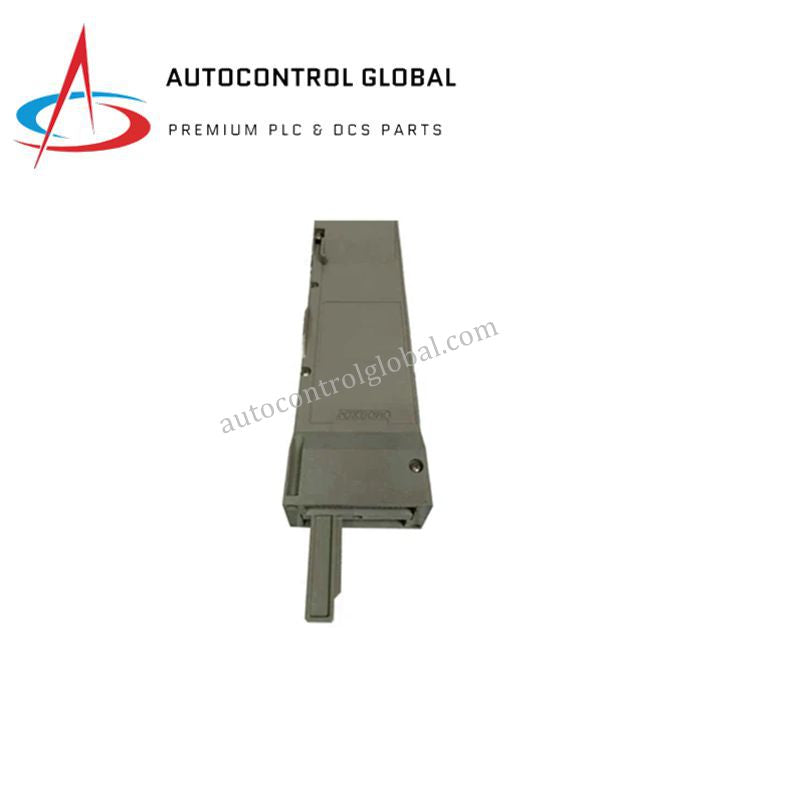

FBI10E P0972AJ | Foxboro Half-Size Y-Module Fieldbus Isolator

  • Manufacturer: Foxboro

  • Part Number: FBI10E P0972AJ

  • Condition：New with Original Package

  • Product Type: Half-Size Y-Module Fieldbus Isolator

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Foxboro FBI10E P0972AJ Fieldbus Isolator Module – Product Description

Description / Overview

The Foxboro FBI10E P0972AJ is a high-performance fieldbus isolator module designed for 10 Mbps Ethernet industrial networks. It converts Ethernet Fieldbus signals from control processors into HDLC signals compatible with Y-Module form factor FBMs. Moreover, its electrical isolation safeguards sensitive equipment against noise, surges, and ground loops.

Functional Highlights / Key Benefits

  • Provides galvanic isolation up to 5000 V to protect control system electronics.

  • Converts 10 Mbps Ethernet Fieldbus signals to HDLC for FBM communication.

  • Supports up to 24 FBMs in Y-Module form factor configurations.

  • Front-panel LED indicators allow quick monitoring of module status.

  • Compact half-size Y-Module design fits Field Enclosure 4, 1×8 FBM, or 1×12 FBM structures.

Technical Data / Specifications

  • Model: FBI10E P0972AJ

  • Type: Fieldbus Isolator Module

  • System Compatibility: Foxboro I/A Series DCS

  • Function: Converts Ethernet Fieldbus to HDLC for FBMs

  • Supported FBMs: Up to 24 Y-Module FBMs

  • Isolation Voltage: 5000 V (galvanic isolation)

  • Operating Voltage: 12 VDC

  • Current Rating: 20 mA

  • Communication Protocols: Ethernet Fieldbus, HDLC; supports FF, DeviceNet, CANopen

  • Form Factor: Half-size Y-Module for field enclosures

  • Indicators: Front-panel LEDs

  • Dimensions (H × W × D): 3.5 × 45 × 23 cm

  • Weight: 1.2 kg

  • Operating Temperature: 0 °C to +60 °C

  • Storage Temperature: –40 °C to +85 °C

  • Humidity Range: 5% – 95% non‑condensing

  • Country of Origin: USA

FAQ

Q1: What is the main purpose of this module?
A1: It isolates Ethernet Fieldbus signals and converts them to HDLC for FBM communication.

Q2: How many FBMs can it support?
A2: The module supports up to 24 Y-Module form factor FBMs.

Q3: What is the isolation voltage rating?
A3: It provides galvanic isolation up to 5000 V.

Q4: Which network protocols are supported?
A4: Ethernet Fieldbus, HDLC, FF, DeviceNet, and CANopen are supported.

Q5: What type of installation is required?
A5: It installs in Field Enclosure 4, 1×8 FBM, or 1×12 FBM configurations.
