Product Description

Overview

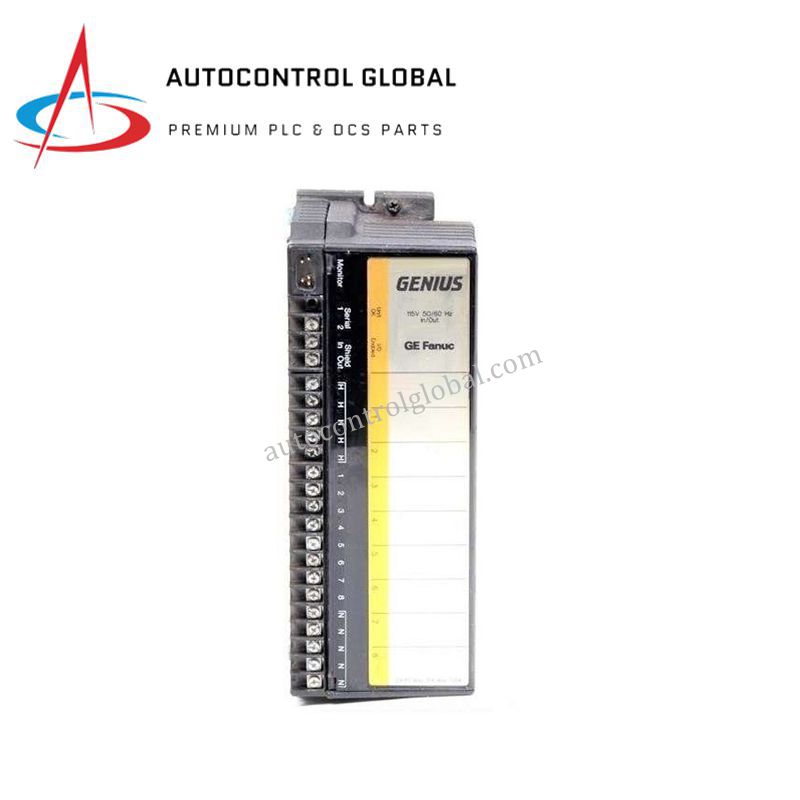

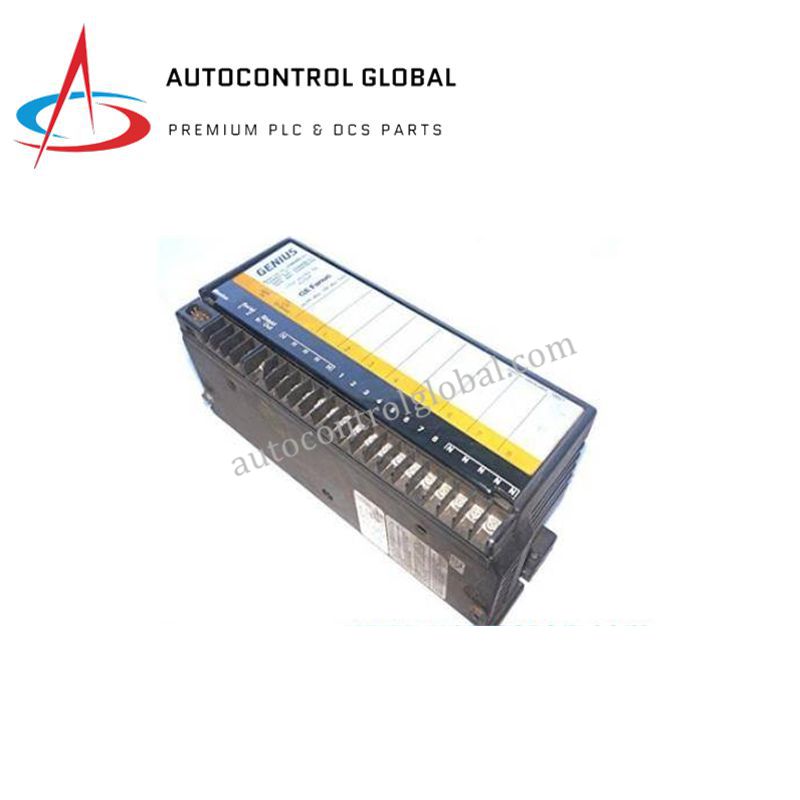

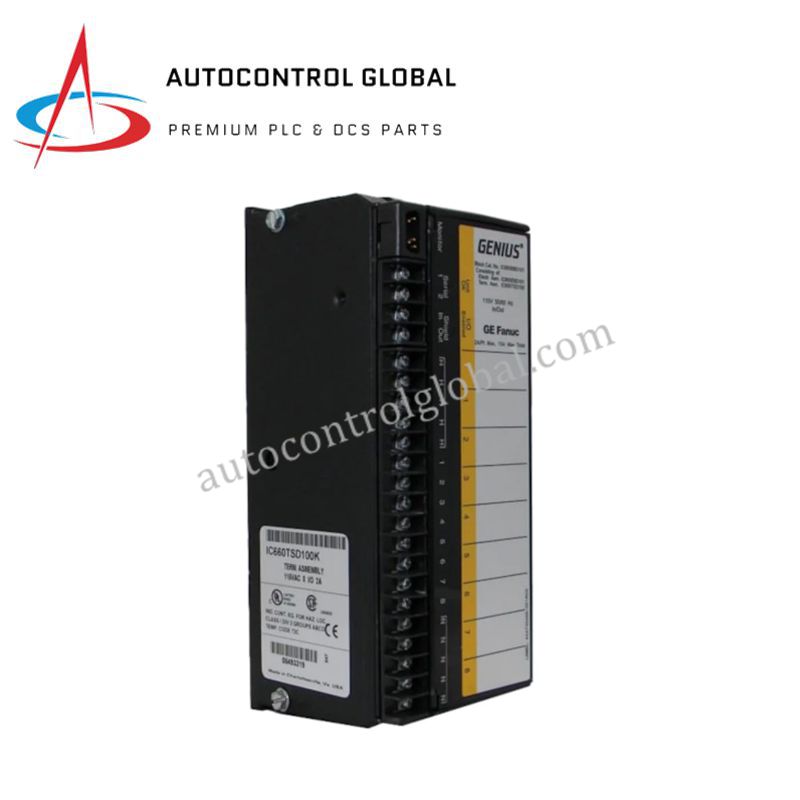

The GE Fanuc IC660BBD101 is a versatile 115 VAC Low-Leakage I/O Block designed for the Genius I/O system. Moreover, it efficiently connects discrete sensors and actuators to the Genius bus, enabling distributed control in factory automation, process industries, and energy management systems. Its compact design and rugged construction make it ideal for harsh industrial environments.

Technical Specifications

I/O Circuits:
• 8 identical circuits, each configurable as input or output
• Input voltage: 115 VAC, 50/60 Hz
• Low-leakage design for sensitive industrial environments

Input Features:
• Selectable input filter time: 10 ms to 100 ms
• Input status monitoring

Output Features:
• Output feedback for monitoring
• Power-up defaults configurable (hold last state or default)
• Pulse testing capability

Diagnostics & Control:
• Bus Switching Module (BSM) control supported
• Fault detection and reporting
• LED indicators for circuit status

Electrical Ratings:
• Operating voltage: 115 VAC
• Typical power consumption: 5 W

Physical Specifications:
• Dimensions: 120 × 80 × 40 mm
• Weight: 0.5 kg
• Mounting: DIN rail or panel mount

Environmental Ratings:
• Operating temperature: –40 °C to +70 °C
• Storage temperature: –40 °C to +85 °C
• Humidity: 5–95% non-condensing
• Certifications: CE, UL, cUL, RoHS compliant

FAQ

Q1: How many circuits does the IC660BBD101 support?
A: It supports eight configurable circuits, each usable as input or output.

Q2: What voltage does this I/O block operate at?
A: The IC660BBD101 operates at 115 VAC with 50/60 Hz frequency.

Q3: Can the circuits handle overload conditions?
A: Yes, each circuit has a fuse that trips above 30 Amps or 20 Amps per two cycles.

Q4: How is the module mounted?
A: It supports DIN rail or panel mounting for flexible installation.

Q5: Does it include diagnostic indicators?
A: Yes, it features LED status indicators and fault reporting for monitoring.
