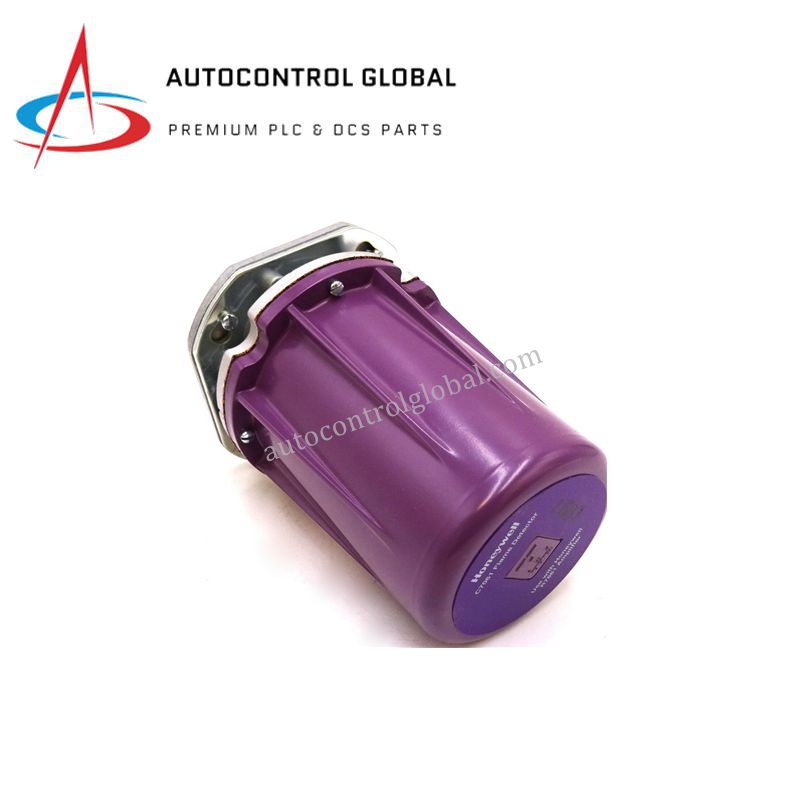

Honeywell C7061A1079 | Industrial Burner Flame Detector
Manufacturer: Honeywell
-
Part Number: C7061A1079
Condition：New with Original Package
Product Type: Industrial Burner Flame Detector
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell C7061A1079 | UV Flame Detector
Product Description
The Honeywell C7061A1079 is a dynamic self-check UV flame detector from the C7061A/F series, designed for industrial burner management systems. It reliably detects ultraviolet radiation emitted by flames from natural gas, LP gases, and oil fuels, ensuring safe and continuous combustion monitoring.
This detector features an oscillating shutter self-check mechanism that interrupts the UV signal 12 times per minute. This confirms the sensor and electronics integrity, enhancing system safety. It integrates seamlessly with Honeywell 7800 Series burner controls and R7861 flame amplifiers, providing robust operation in industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | C7061A1079 |
| Product Type | Dynamic Self-Check UV Flame Detector |
| Sensor Type | Solid-state UV tube |
| Fuel Compatibility | Natural gas, LP gases, oil |
| Self-Check Mechanism | Oscillating shutter (12 cycles/min) |
| Operating Voltage | 120 VAC (via connected control system) |
| Operating Temperature | –40°F to +125°F (–40°C to +52°C) |
| Storage Temperature | –40°F to +140°F (–40°C to +60°C) |
| Humidity Range | 0% to 95% RH, non-condensing |
| Mounting Type | Threaded sight pipe or flange mount |
| Cable Connection | 3-pin quick-disconnect plug |
| Compatible Amplifiers | R7861A Dynamic Self-Check Amplifier |
| Certifications | CE (EN 298 compliant with approved Honeywell controls) |
| Weight | 454 g (1 lb) |
| Condition | Brand new |
| Country of Origin | USA |
FAQ
Q1: What fuels does the C7061A1079 detect?
A1: It detects flames from natural gas, LP gases, and oil-based fuels.
Q2: How does the self-check mechanism work?
A2: It uses an oscillating shutter that interrupts the UV signal 12 times per minute.
Q3: What amplifiers is it compatible with?
A3: Compatible with R7861A Dynamic Self-Check Amplifier.
Q4: What is the operating temperature range?
A4: It operates between –40°C and +52°C (–40°F to +125°F).
Q5: Is the detector certified?
A5: Yes, it is CE certified and EN 298 compliant when used with approved Honeywell controls.
