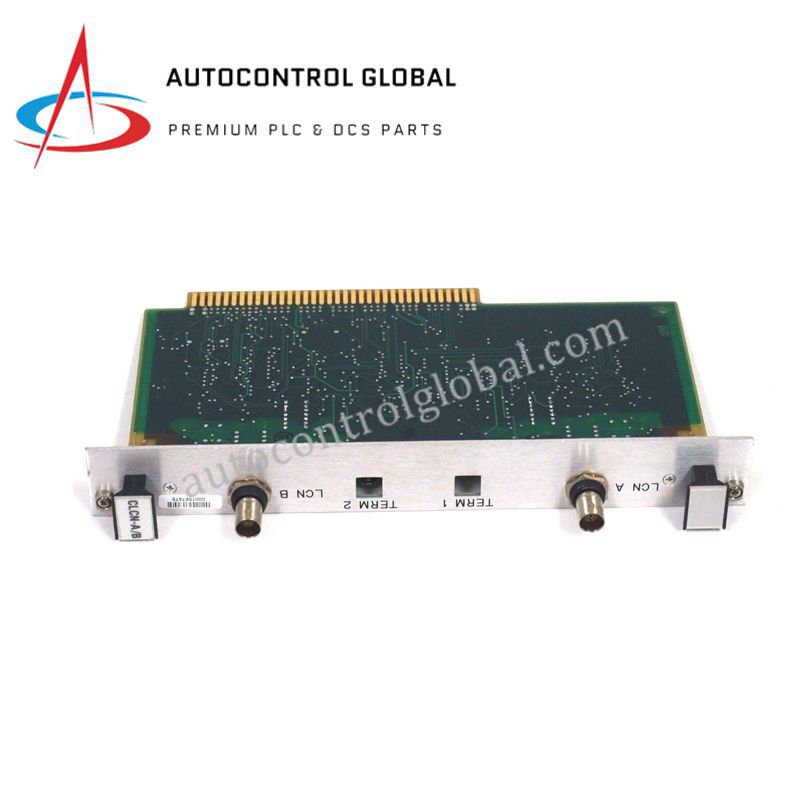

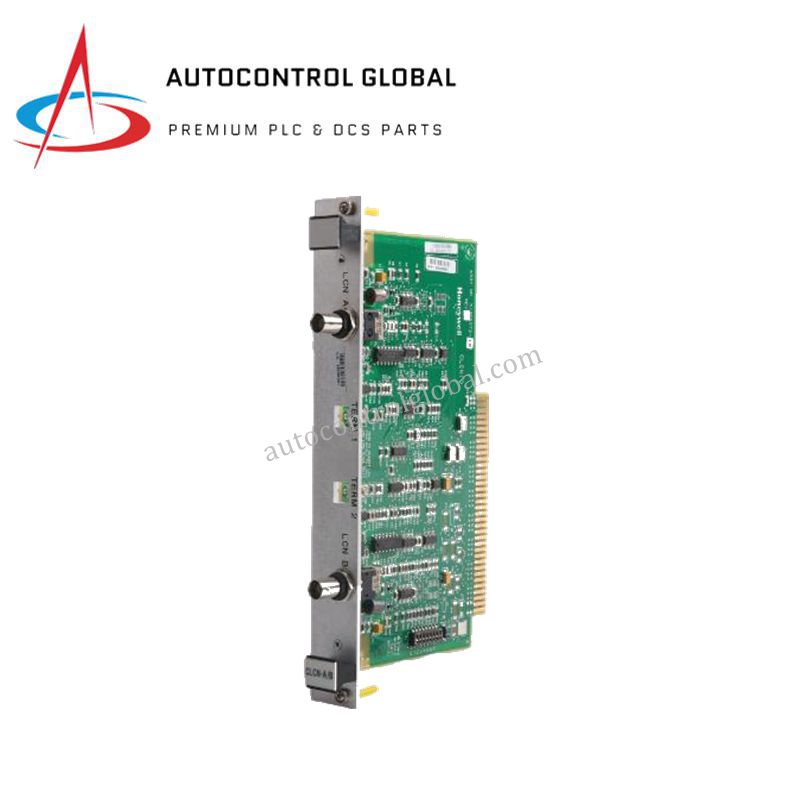

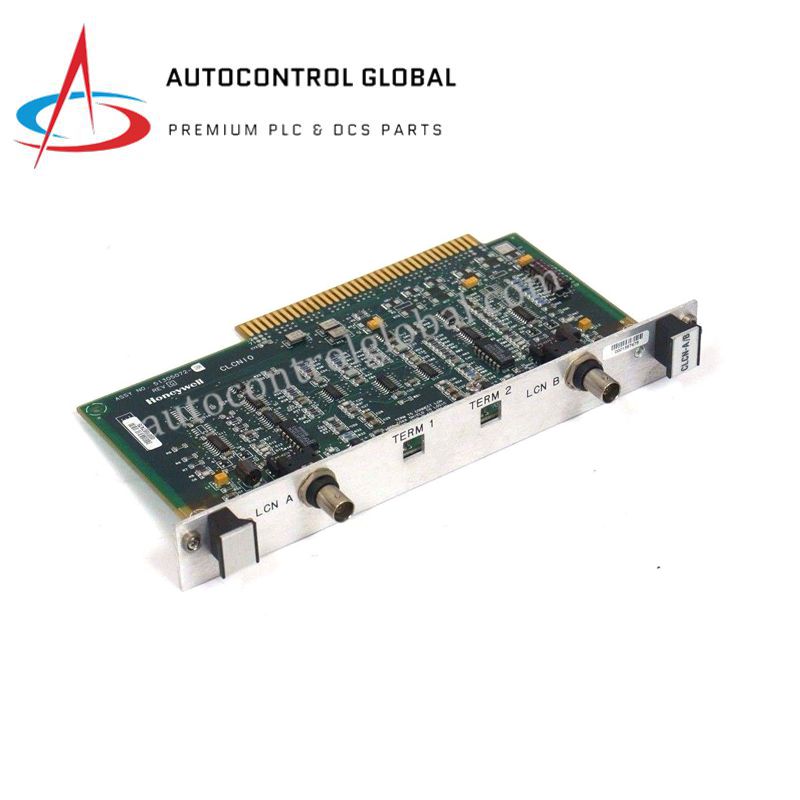

Honeywell CLCN-A/B | LCN I/O Board Paddle Board TDC 3000
Manufacturer: Honeywell
-
Part Number: CLCN-A/B 51305072-100
Condition：New with Original Package
Product Type: LCN I/O Board Paddle Board TDC 3000
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell CLCN-A/B | LCN I/O Board (Paddle Board)
Product Description
The Honeywell CLCN-A/B is a Local Control Network (LCN) I/O card, also known as a paddle board, designed for use in 5-slot or 10-slot chassis within Honeywell TDC 3000 systems. It connects nodes to the LCN through redundant coaxial cables (Cable A and Cable B), providing fault-tolerant communication and ensuring reliable operation in complex industrial environments.
The CLCN-A/B features a slide switch for node address configuration and BNC tee connectors for easy node disconnection without interrupting the network. Supporting coaxial and fiber optic interconnections, this card enables scalable deployment while maintaining high system uptime.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | CLCN-A/B |
| Part Number | 51305072-100 |
| Product Type | LCN I/O Card (Paddle Board) |
| System Compatibility | Honeywell TDC 3000 |
| Function | Connects node to LCN via Cable A and Cable B |
| Addressing Method | Slide switch for node address configuration |
| Cable Type | Coaxial (BNC tees), supports fiber optic interconnection |
| Redundancy | Dual cable setup: Cable A (yellow band), Cable B (green band) |
| Dimensions (L × W × H) | 3 cm × 13.5 cm × 23.8 cm |
| Weight | 0.43 lbs (≈ 0.19 kg) |
| Power Supply | 24 VDC |
| Current Rating | 50 mA |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE compliant |
| Country of Origin | USA |
| Condition | Brand new & in stock |
FAQ
Q1: What is the power requirement for the CLCN-A/B?
A1: The CLCN-A/B operates at 24 VDC with 50 mA current.
Q2: Can I disconnect a node without stopping network communication?
A2: Yes, BNC tee connectors allow node disconnection without interrupting other nodes.
Q3: What mounting options are supported?
A3: The module is designed for 5-slot or 10-slot chassis installation.
Q4: Does it support fiber optic connections?
A4: Yes, it supports both coaxial and fiber optic interconnections.
