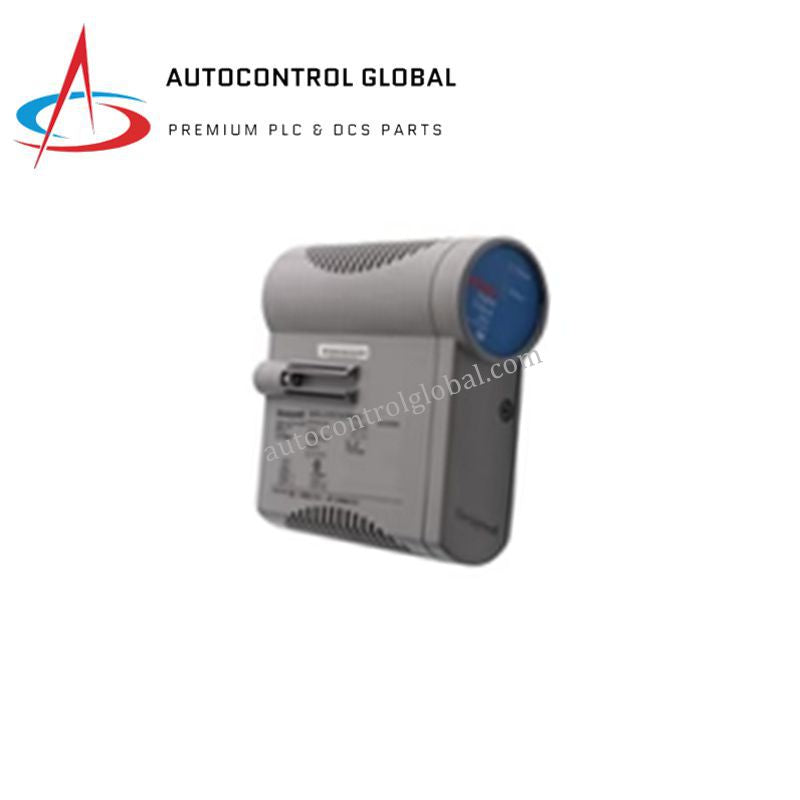

Honeywell CC-PDOD51 Digital Output Module – Product Description

Overview

The Honeywell CC-PDOD51 is a 32-channel digital output module designed for Experion PKS Series C control systems. It provides stable 24-volt sink outputs that support a wide range of field devices. Moreover, the coated electronics improve long-term performance in demanding industrial environments. The module integrates smoothly with existing Honeywell I/O installations, therefore helping operators maintain consistent system performance.

Technical Specifications

Model Number: CC-PDOD51
Manufacturer: Honeywell
Platform / Series: Experion PKS Series C I/O
Module Type: 24 VDC Digital Output Module
Output Channels: 32 channels
Output Type: SINK (open drain)
Maximum Load Voltage: 30 VDC
Maximum Load Current per Channel: 0.1 A
Galvanic Isolation: 1000 VAC RMS system-to-field
Bus Power Demand: 80 mA @ 24 VDC typical
Switching Time: ≤10 ms ON/OFF
Coating: Conformal coated
IOTA Compatibility: CC-TDOD51 (non-redundant), CC-TDOD61
Operating Temperature: –40 °C to +70 °C
Safety Protection: Electronic over-current protection
Dimensions (H × W × D): 50.8 × 177.8 × 127 mm
Weight: 0.45 kg
Certifications: CE, UL508, CSA, TUV
Country of Origin: USA
Shipping Weight: 3 kg

FAQ

Q1: Does the CC-PDOD51 support redundant operation?
Yes. It works with redundant IOTA baseplates such as the CC-TDOD61.

Q2: What types of loads can the module drive?
It supports solenoids, relays, indicator lamps, and various 24 VDC devices.

Q3: What isolation rating does this module provide?
The system-to-field isolation is 1000 VAC RMS for enhanced protection.

Q4: Is the module suitable for harsh environments?
Yes. Its conformal coating improves durability in moisture and chemical exposure.

Q5: Can a Certificate of Origin be provided?
A COO is available upon request for compliance or export documentation.
