Rockwell 1788-CN2FFR Series B Redundant FF Linking Device

Allen-Bradley 1788-CN2FFR Series B ControlNet to FOUNDATION Fieldbus Linking Device

Product Overview

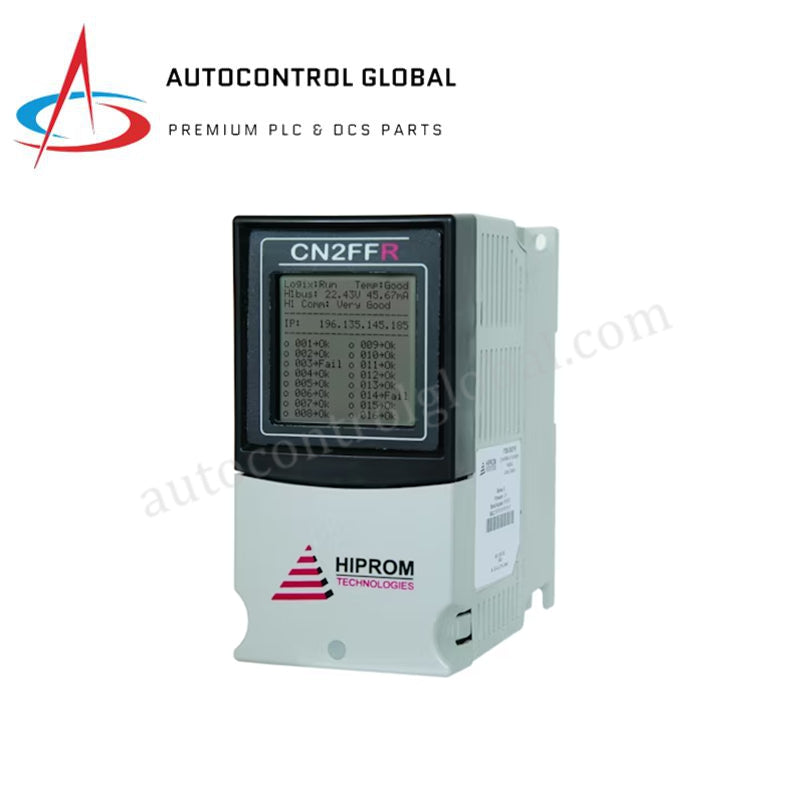

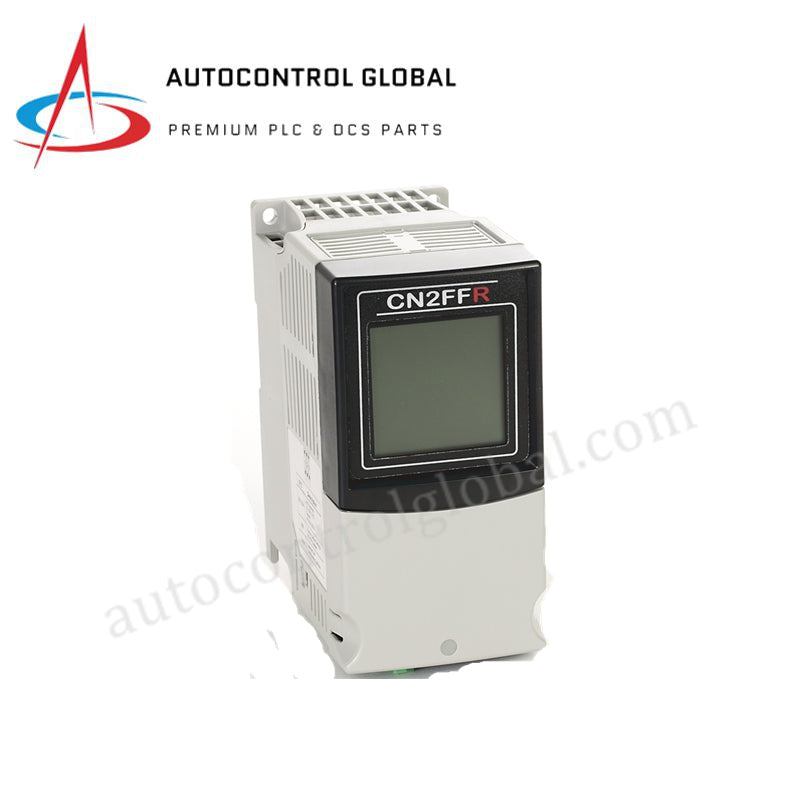

The 1788-CN2FFR (Series B) is a high-performance, redundant linking device manufactured by Rockwell Automation. It serves as a critical bridge between ControlNet networks and FOUNDATION Fieldbus (FF) H1 segments. Engineered for the process industry, the 1788-CN2FFR allows Logix-based controllers to seamlessly interface with intelligent field instrumentation, supporting asset management and advanced diagnostics. This device is specifically designed for high-availability architectures, featuring dual ControlNet ports to ensure continuous data flow even in the event of a media failure. It essentially translates complex Fieldbus device data into a format accessible by ControlNet scanners, facilitating a unified control strategy.

Technical Specifications

The 1788-CN2FFR is built for precise data mapping and rugged industrial deployment.

• Manufacturer: Rockwell Automation / Allen-Bradley

• Model Number: 1788-CN2FFR

• Series: Series B

• Product Line: 1788 Linking Devices

• Function: ControlNet to FOUNDATION Fieldbus H1 Gateway

• Input Power: 24–32V DC (Nominal 24V DC)

• Power Consumption: 260 mA @ 24V DC

• Power Dissipation: 12.4 W @ 24V DC

• FOUNDATION Fieldbus Output: 0.5 A @ 24V DC

• Isolation Voltage: 30V continuous (Type tested at 500V AC for 60 seconds)

• ControlNet Ports: Dual Redundant BNC Channels

• Fieldbus Ports: H1 Segment Support (H1 Protocol)

• Operating Shock: 30G

• Operating Temperature: 0°C to +55°C (32°F to 131°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Enclosure Type: Open (DIN Rail Mount)

• Weight: 1.25 lbs (0.57 kg)

• Dimensions: Optimized for high-density cabinet mounting
