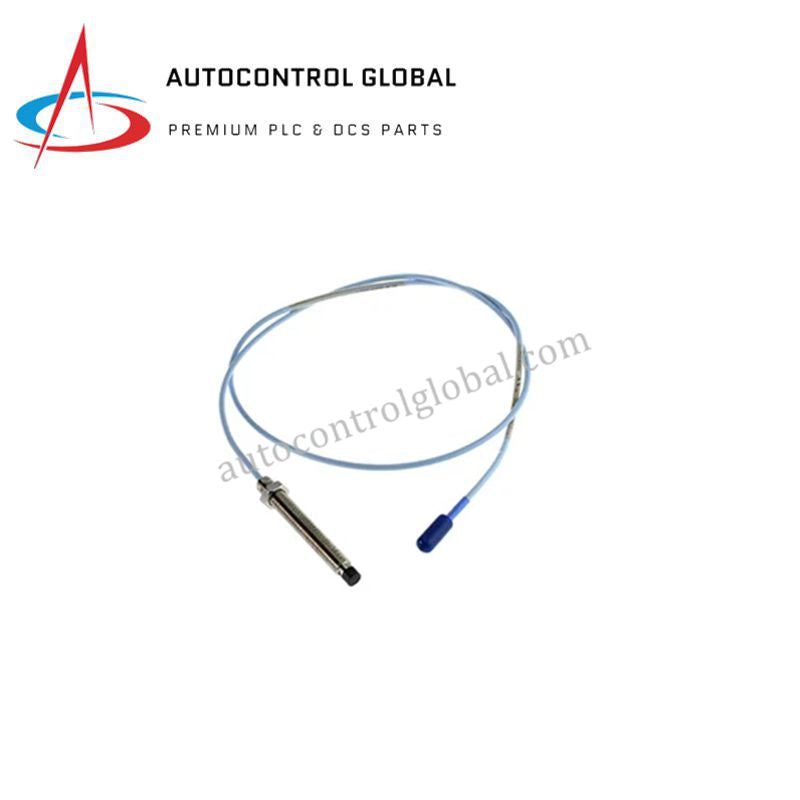

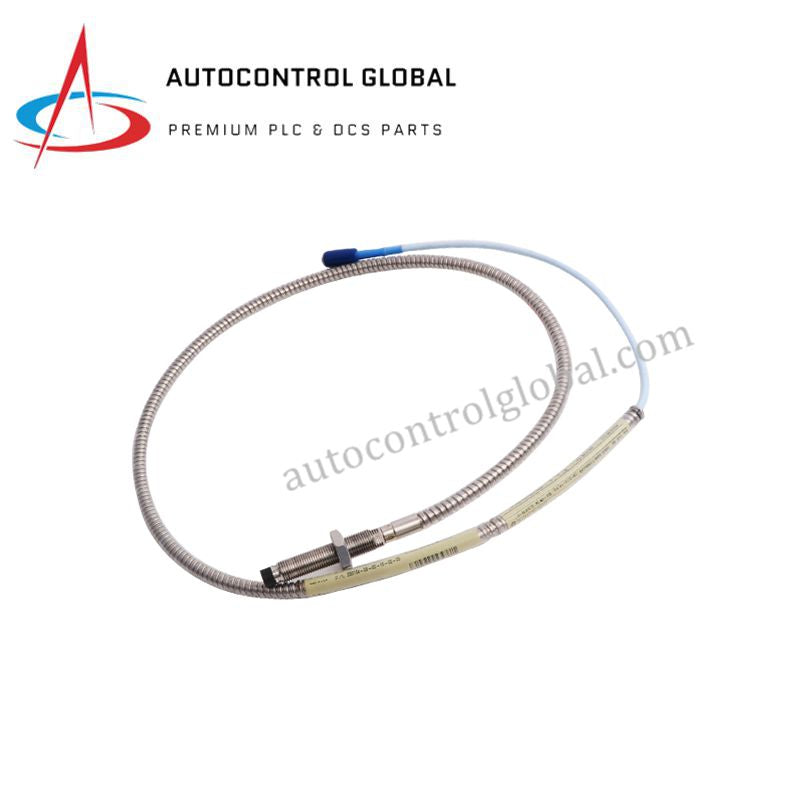

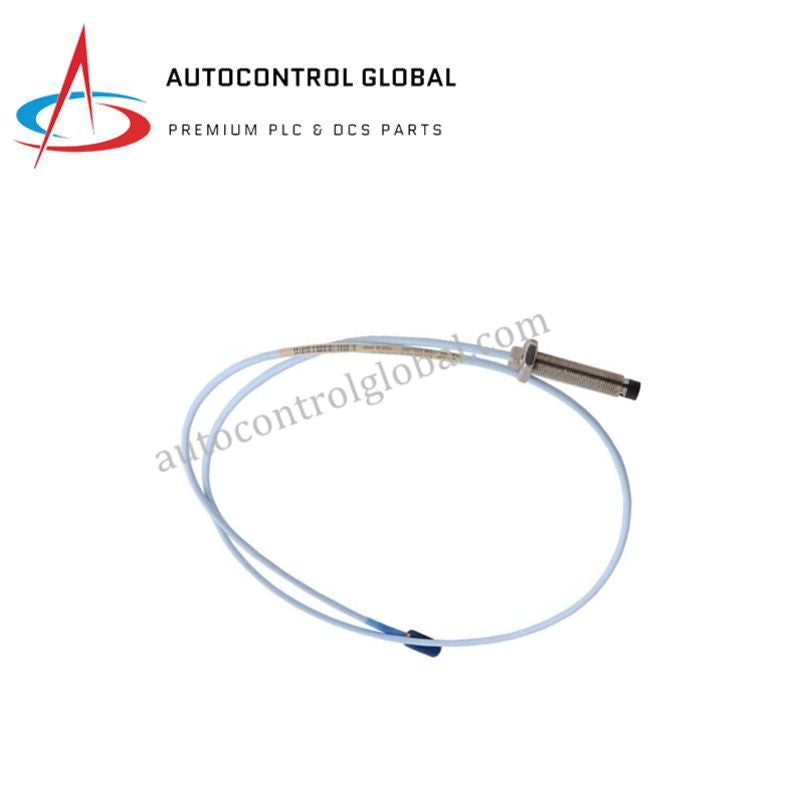

3300 XL 8 mm Proximity Probe | Bently Nevada 330104-00-18-10-02-05
Manufacturer: Bently Nevada
-
Part Number: 330104-00-18-10-02-05
Condition：New with Original Package
Product Type: 3300 XL 8 mm Proximity Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview
The Bently Nevada 330104-00-18-10-02-05 is part of the 3300 XL 8 mm Proximity Probe Series, engineered for high-precision vibration and position monitoring in industrial rotating machinery. It provides robust construction, excellent environmental resistance, and seamless integration with Bently Nevada Proximitor sensors.
Optimized for AISI 4140 steel targets, the probe delivers accurate, repeatable measurements across harsh operating conditions. Its Miniature Coaxial ClickLoc connector with protector ensures reliable connectivity and mechanical protection.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330104-00-18-10-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 0 to 8 mm (0 to 0.315 in) |
| Accuracy | ±0.01 mm (±0.0004 in) |
| Repeatability | ±0.01 mm (±0.0004 in) |
| Output Signal | Analog voltage, frequency, or pulse |
| Power Supply | –17.5 to –26 VDC |
| Cable Length | 10 feet (approx. 3 meters) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –55°C to +125°C |
| Target Material | Optimized for AISI 4140 steel |
| Thread Type | Unthreaded Length: 0 mm; Overall Case Length: 30 mm |
| Condition | Brand new |
| Country of Origin | USA |
| Weight | 2.5 kg |
FAQs
Q1: Is the 330104-00-18-10-02-05 probe brand new?
A1: Yes, this Bently Nevada 330104 probe is factory-sealed and brand new.
Q2: What is the cable type and connector?
A2: It includes a standard 3-meter cable with a Miniature Coaxial ClickLoc connector with protector.
Q3: What is the measurement accuracy?
A3: The probe provides ±0.01 mm accuracy and ±0.01 mm repeatability.
Q4: Which materials is this probe optimized for?
A4: It is optimized for AISI 4140 steel targets.
Q5: What temperature ranges does it support?
A5: The probe operates between –40°C and +85°C and stores safely up to –55°C to +125°C.
