330103-00-03-10-01-05 | Bently Nevada Shaft Vibration Probe
Manufacturer: Bently Nevada
-
Part Number: 330103-00-03-10-01-05
Condition：New with Original Package
Product Type: Shaft Vibration Probe
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Overview

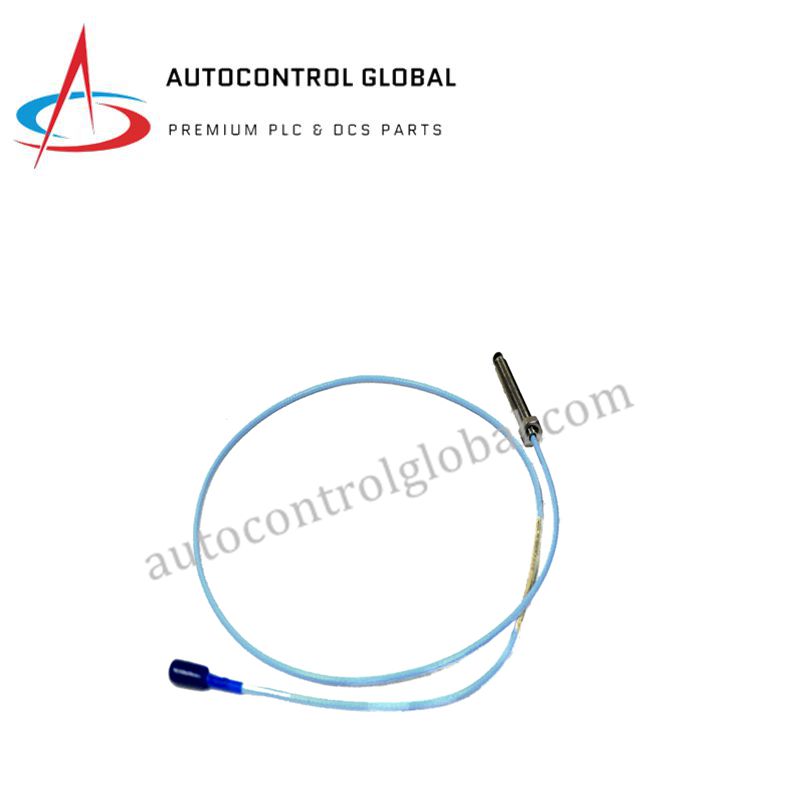

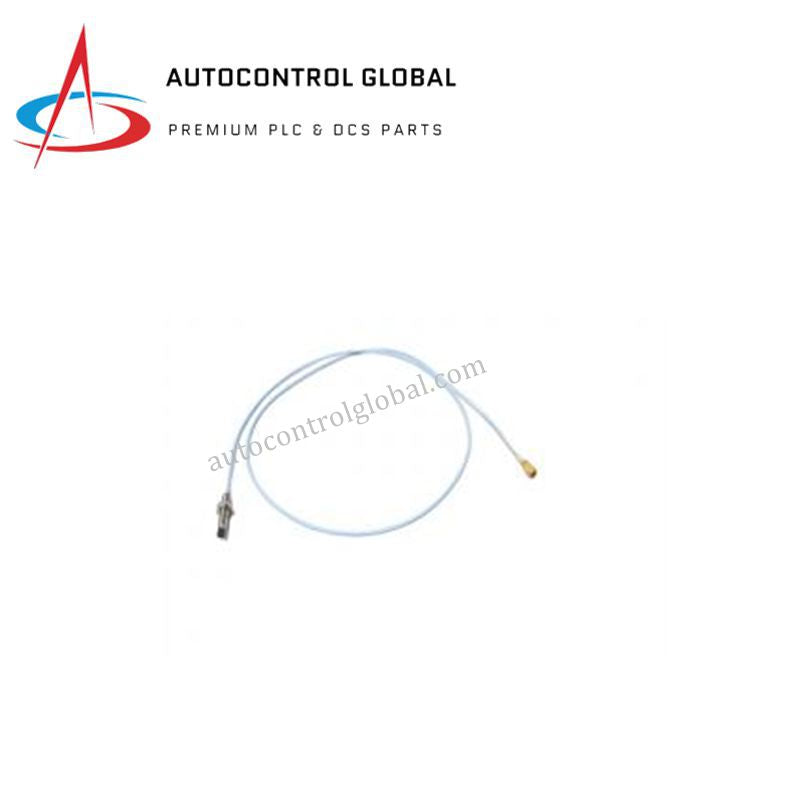

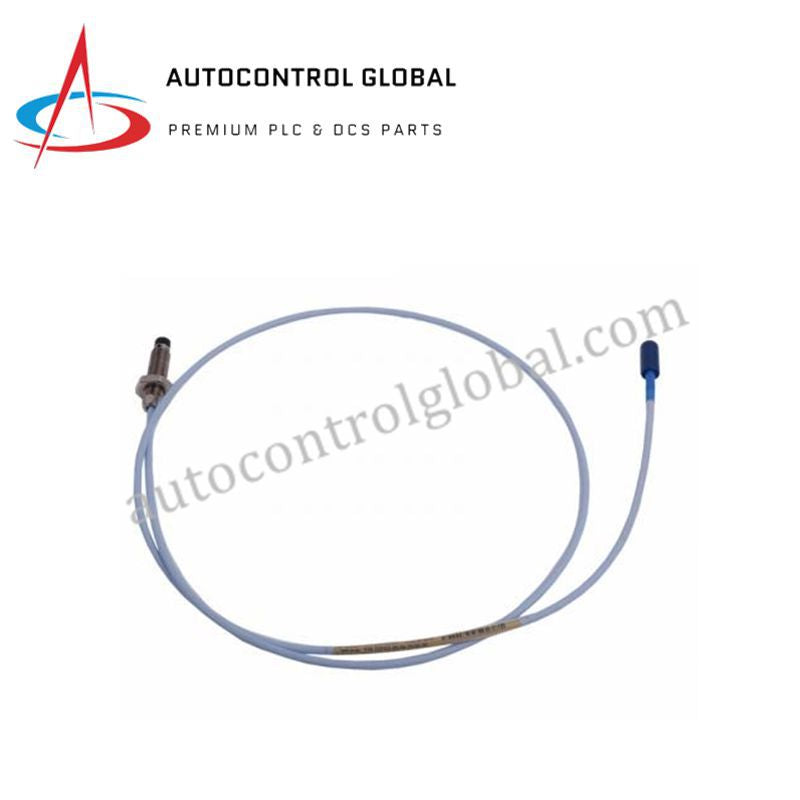

The Bently Nevada 330103-00-03-10-01-05 is a high-precision 8 mm proximity probe from the 3300 XL Series, designed for non-contact shaft vibration and position monitoring. It combines durability and sensitivity for use in critical rotating equipment like turbines, compressors, pumps, and motors.
This probe connects seamlessly with 3300 XL extension cables and Proximitor® sensors to form a complete transducer system. Its compact design, Viton® O-ring seal, and ATEX/IECEx hazardous-area compliance make it ideal for demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 330103-00-03-10-01-05 |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 3 feet (0.91 meters) |
| Connector Type | ClickLoc™ coaxial connector with protector |
| Sensitivity | 7.87 mV/mil (±5%) |
| Linear Range | 0.25 to 2.0 mm (10 to 80 mils) |
| Frequency Response | 0 Hz to 10,000 Hz |
| Operating Temperature | –35°C to +177°C (–31°F to +351°F) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | AISI 303 or 304 stainless steel |
| Seal Type | Viton® O-ring for pressure sealing |
| System Compatibility | 3300 XL extension cables and Proximitor® sensors |
| Compliance | API 670, ATEX/IECEx certified |
| Shipping Weight | 1.5 Kg |
