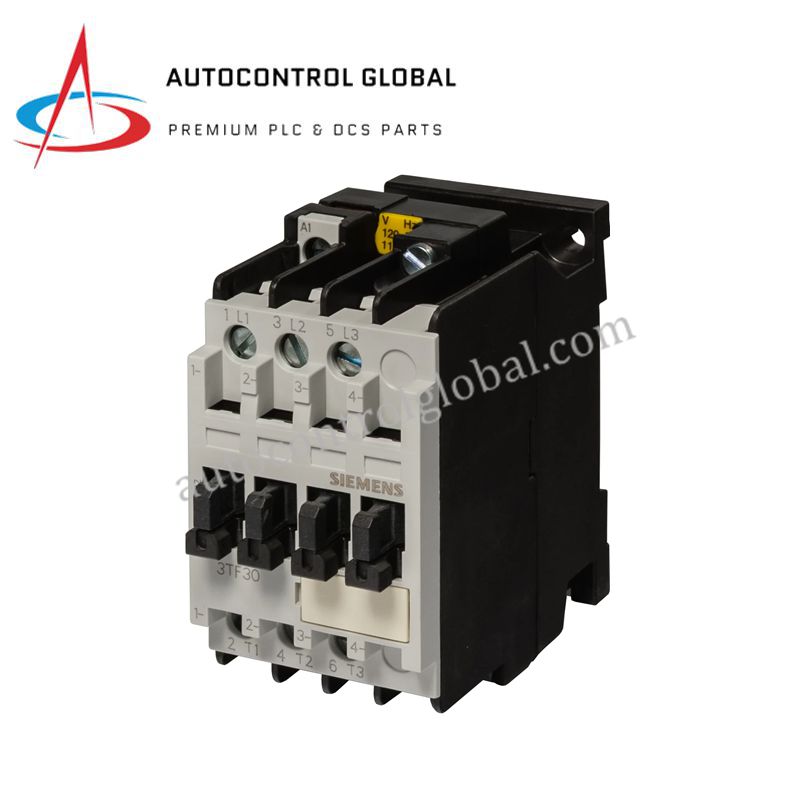

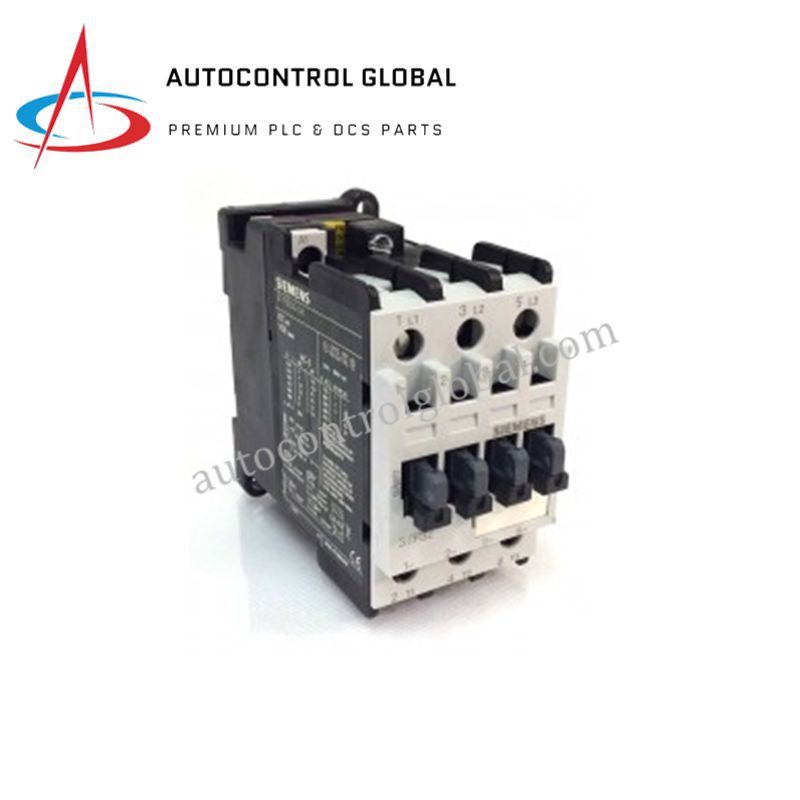

3TF30-10-0AP0 Siemens Compact AC Contactor for Industrial Systems
Manufacturer: Siemens
-
Part Number: 3TF30-10-0AP0
Condition：New with Original Package
Product Type: Compact AC Contactor for Industrial Systems
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Product Description / Overview
The Siemens 3TF30‑10‑0AP0 is a compact and reliable AC contactor from the 3TF series, designed for low-voltage control systems.
It provides precise motor starting, load switching, and automation control in industrial environments.
Moreover, this 3-pole contactor includes one NO auxiliary contact, allowing feedback or interlocking in control circuits.
Its 24 V AC coil voltage ensures smooth operation with standard control panels.
In addition, the device supports DIN rail or base plate mounting, making installation flexible and efficient in confined control cabinets.
Compliant with IEC 60947-4-1 standards, it guarantees safe and reliable switching for industrial automation applications.
Technical Data / Specifications
Product Type: AC Contactor
Series: Siemens 3TF
Poles: 3 main poles
Auxiliary Contacts: 1 NO
Rated Operational Current (Ie): Up to 22 A (AC-3 duty, depending on version)
Rated Insulation Voltage (Ui): 690 V
Impulse Withstand Voltage (Uimp): 6 kV
Coil Voltage: 24 V AC
Coil Operating Range: 0.8 – 1.1 × Us
Frequency: 50/60 Hz
Protection Class: IP20 (for 3TF30–33 models)
Operating Temperature: –25 °C to +55 °C
Relative Humidity: ≤ 50% at +40 °C; ≤ 90% at +25 °C
Installation Altitude: ≤ 2000 m without derating
Connection: Screw terminals
Mounting Options: Base plate or 35 mm DIN rail
Standards Compliance: IEC 60947-4-1
Weight: 0.4–0.5 kg
FAQ
What is the coil voltage of the Siemens 3TF30‑10‑0AP0?
It operates on a 24 V AC coil, compatible with standard industrial control circuits.
How many auxiliary contacts does it include?
The contactor provides one NO auxiliary contact for feedback or interlocking.
Which motors can it switch?
It can handle AC motors up to ~11 kW at 400 V under AC-3 duty.
What mounting options are available?
The device can be mounted on a base plate or 35 mm DIN rail for flexible installation.
Which standards does it comply with?
It meets IEC 60947-4-1, ensuring safe and reliable operation in industrial automation.
