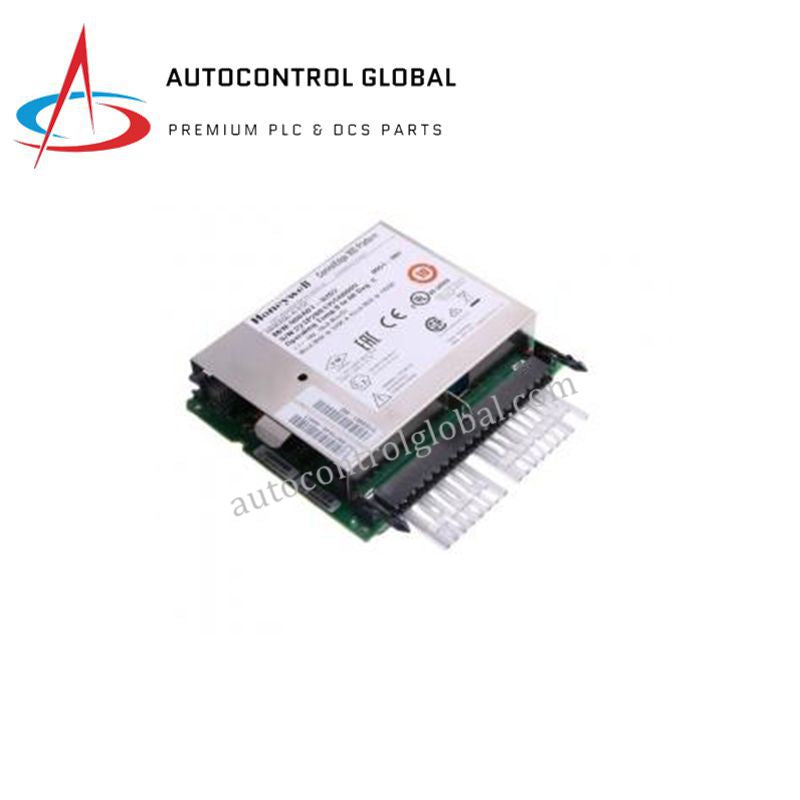

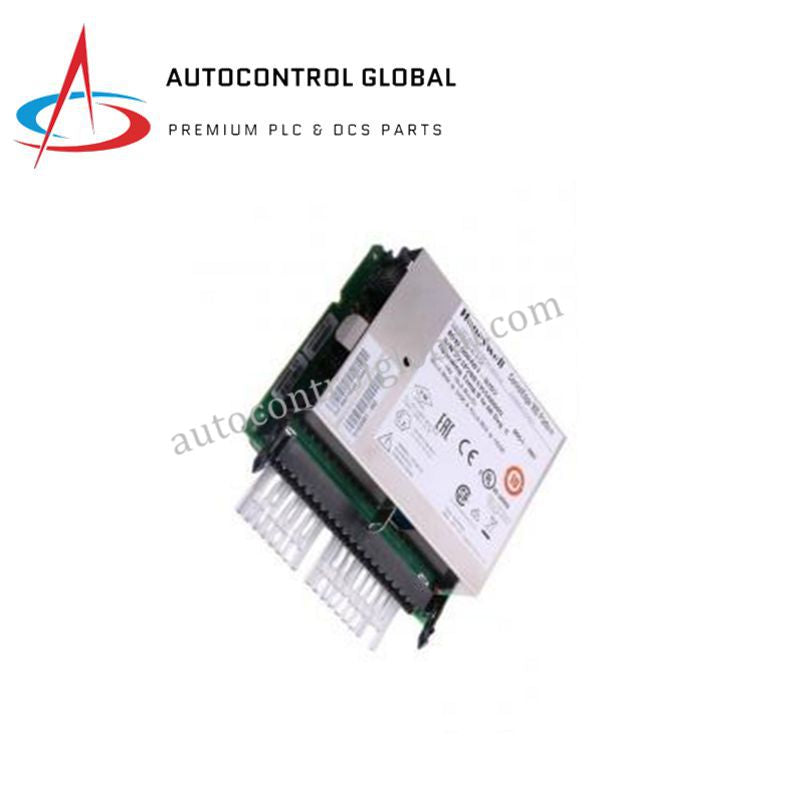

Honeywell 900A16‑0001 HC900 Analog Input Module – Product Description

Overview

The Honeywell 900A16‑0001 is a High‑Level Analog Input (HLAI) Module designed for the HC900 Controller I/O subsystem. It enables the acquisition of up to 16 analog signals from field devices, such as temperature transmitters, pressure sensors, and flow meters.

Each channel can be configured for voltage or current input, providing maximum flexibility. Moreover, point-to-point galvanic isolation ensures electrical interference is minimized while maintaining signal integrity. This module is ideal for process automation, safety systems, and industrial measurement in harsh environments.

Technical Specifications

Model Number: 900A16‑0001
Type: High-Level Analog Input Module
System Compatibility: Honeywell ControlEdge HC900 Controller
Input Channels: 16 channels
Signal Types Supported: Voltage (V) or Current (mA), configurable per channel
Isolation: Point-to-point galvanic isolation + backplane isolation
Accuracy: High accuracy for industrial process signals
Dimensions (W × H): 137 × 35.6 mm
Weight: 0.397 kg
Operating Temperature: –20 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Certifications: CE, UL, CSA, TUV
Country of Origin: USA
Application Areas: Process automation, safety systems, industrial measurement

FAQ

Q1: How many input channels does the 900A16‑0001 module support?
It supports 16 analog input channels configurable for voltage or current.

Q2: Is the module compatible with Honeywell HC900 Controllers?
Yes, it integrates directly with the Honeywell ControlEdge HC900 I/O subsystem.

Q3: How does the module ensure signal integrity?
Point-to-point galvanic isolation prevents electrical interference across channels.

Q4: What industries commonly use this module?
Oil & gas, chemical plants, power generation, and manufacturing environments.

Q5: What is the operating temperature range?
The module operates safely between –20 °C and +60 °C.
