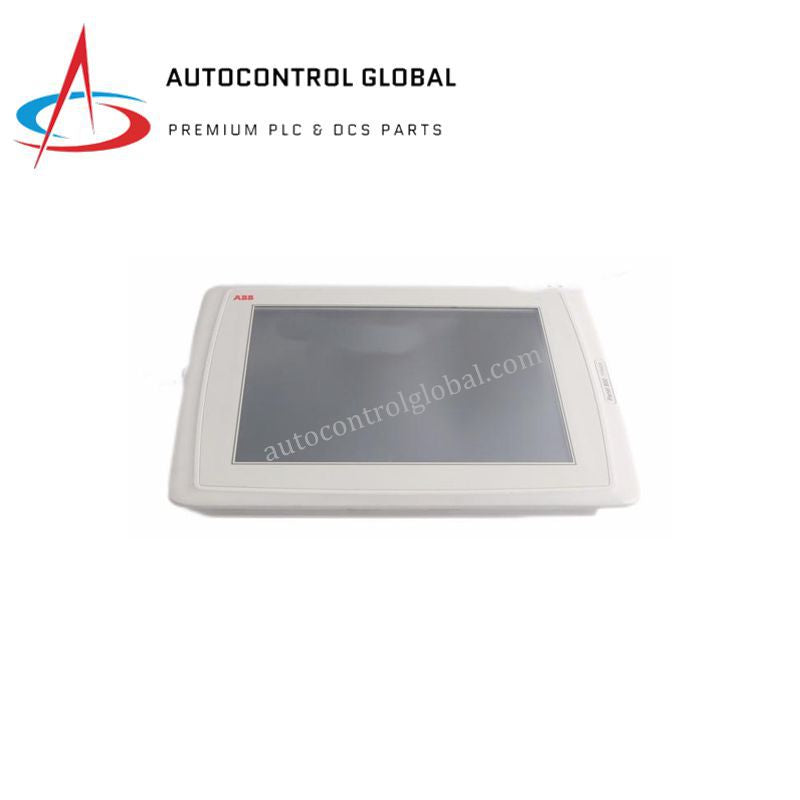

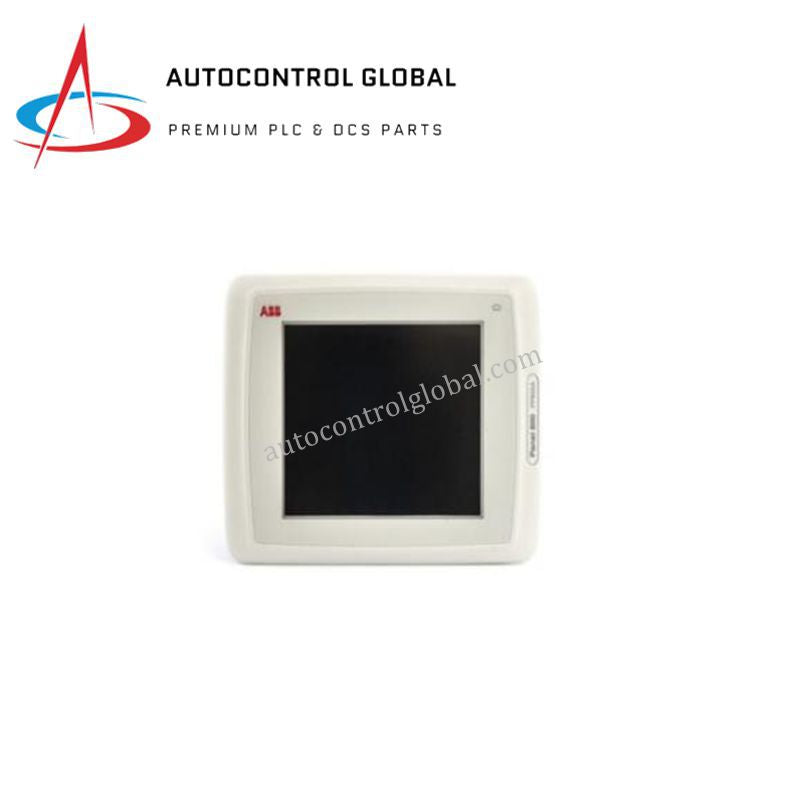

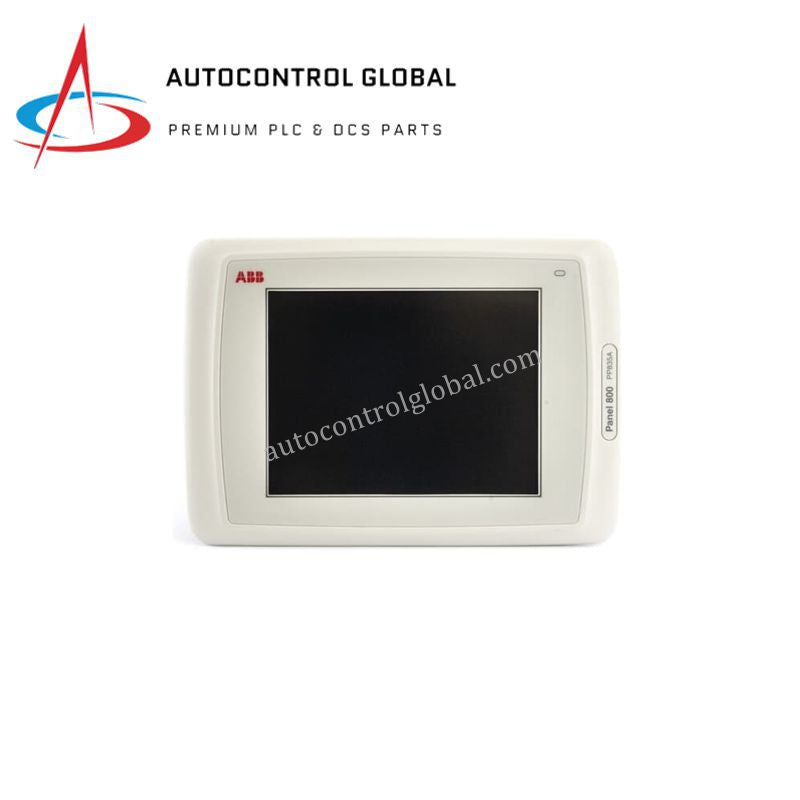

ABB 3BSE042234R1 PP835 | 15" Touch Screen Operator Interface

Product Description

The ABB PP835 3BSE042234R1 is a robust operator interface panel (HMI) designed for the ABB Panel 800 series. It provides an intuitive, graphical interface that helps operators monitor and control industrial processes with precision. Featuring a 15-inch TFT LCD touch screen, it offers excellent visibility and responsive input in demanding industrial environments.

Built for reliability, the PP835 supports Ethernet and serial communication for easy system integration with ABB’s 800xA and Compact Product Suite platforms. Moreover, it combines advanced visualization, alarm handling, and process navigation in a compact, panel-mounted form. This makes it ideal for power generation, utilities, and manufacturing control applications where uptime and efficiency are critical.

Its rugged design with IP65 front protection ensures long-term operation even under vibration, dust, or temperature variations. Therefore, the PP835 remains a trusted HMI solution for both legacy and modern automation systems.

Technical Specifications

• Model: PP835

• Part Number: 3BSE042234R1

• Type: Operator Panel (HMI)

• Display Size: 15-inch TFT LCD

• Resolution: 1024 × 768 pixels (XGA)

• Touch Technology: Resistive touch screen

• System Compatibility: ABB 800xA, Compact Product Suite, Panel 800 series

• Interfaces: Ethernet, USB, RS-232/RS-485

• Power Supply: 24 V DC

• Mounting: Panel-mounted

• Protection Rating: IP65 (front), IP20 (rear)

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Dimensions (W × H × D): ~400 × 300 × 60 mm

• Weight: 3.5 kg

• Country of Origin: Sweden / Switzerland

• Application Areas: Operator interface for automation, process monitoring, and machine control

FAQ

Q1: What is the ABB PP835 used for?
A1: The PP835 is an operator interface panel (HMI) used for process visualization, control, and monitoring in industrial automation systems.

Q2: Is the ABB PP835 compatible with the ABB 800xA system?
A2: Yes, it integrates seamlessly with ABB 800xA and Compact Product Suite systems for efficient process control.

Q3: What is the screen size and resolution of the PP835?
A3: It features a 15-inch TFT LCD display with a 1024 × 768 (XGA) resolution for clear visual output.

Q4: What kind of protection rating does it have?
A4: The front panel is rated IP65, ensuring protection against dust and moisture in industrial environments.

Q5: Can the PP835 replace newer ABB Panel 800 models?
A5: Although discontinued, it remains compatible with many existing ABB systems and is ideal for legacy system maintenance.
