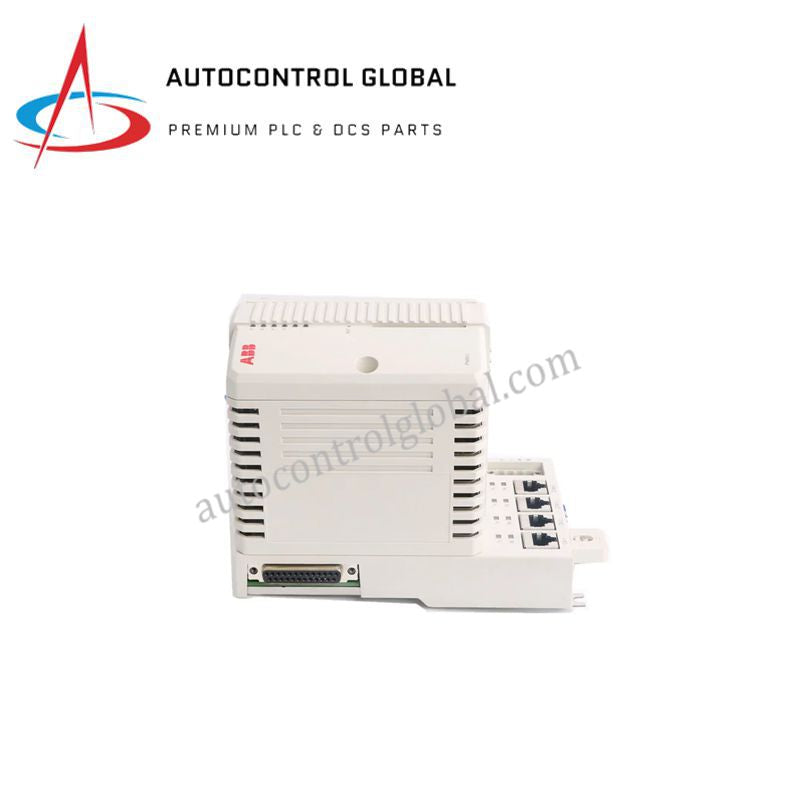

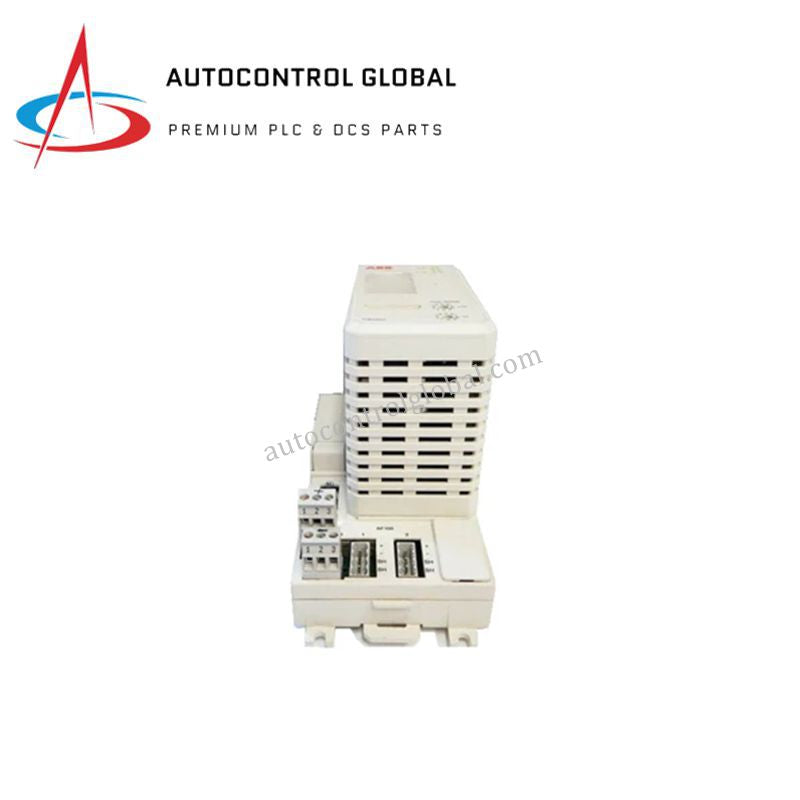

ABB CI810A Communication Interface Module – Product Description

Product Overview

The ABB CI810A is a compact communication interface module engineered for ABB AC 800M control systems. It enables seamless integration of S800 I/O subsystems while maintaining deterministic, high-speed communication. Moreover, its lightweight DIN-rail design simplifies installation, ensuring minimal disruption in industrial automation setups.

Technical Specifications

Model: CI810A
Part Number: 3BSE013262R1
Type: Communication Interface Module
System Compatibility: ABB AC 800M controllers, S800 I/O systems
Communication Protocol: PROFIBUS‑DP
Baud Rate: Up to 12 Mbps
Bus Interface: S800 I/O bus
Input Voltage: 24 VDC
Power Consumption: ~5–6 W typical
Operating Temperature: –25 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity Range: 5% – 95% non‑condensing
Dimensions (W × H × D): 87 × 250 × 158 mm
Weight: 0.56 kg
Mounting: DIN rail
Protection Class: IP20
Certifications: CE, UL, RoHS

FAQ

Q: Which communication protocol does the CI810A support?
It supports PROFIBUS‑DP for fast and deterministic fieldbus communication.

Q: Is the CI810A compatible with all ABB controllers?
It is specifically compatible with ABB AC 800M controllers and S800 I/O subsystems.

Q: Can the module operate in harsh industrial environments?
Yes, it operates reliably between –25 °C to +70 °C and withstands 5–95% non-condensing humidity.

Q: How is the module mounted?
The CI810A is DIN-rail mountable for convenient installation and easy replacement.

Q: Does it support redundant communication paths?
Yes, redundancy is supported to minimize downtime and enhance system reliability.
