FC-BKM-001 Honeywell | Emergency Shutdown Battery & Key Module
Manufacturer: Honeywell
-
Part Number: FC-BKM-001
Condition：New with Original Package
Product Type: Emergency Shutdown Battery & Key Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Overview

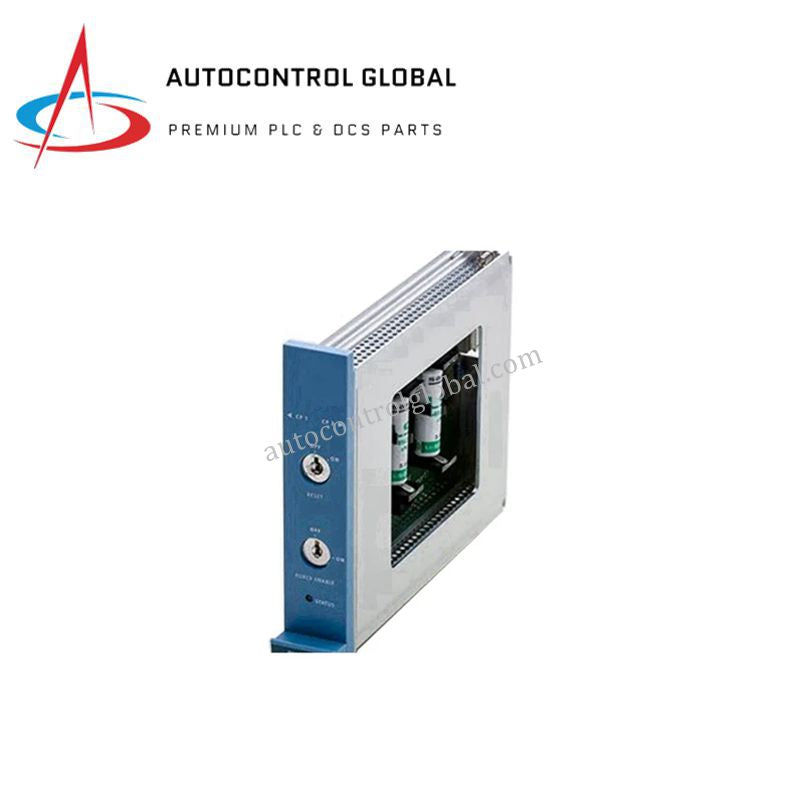

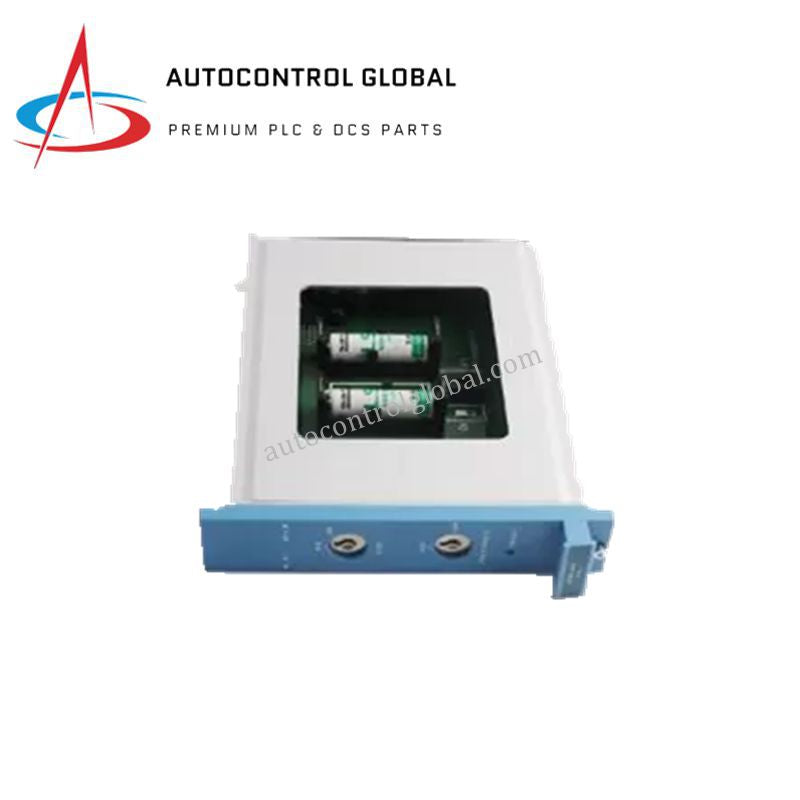

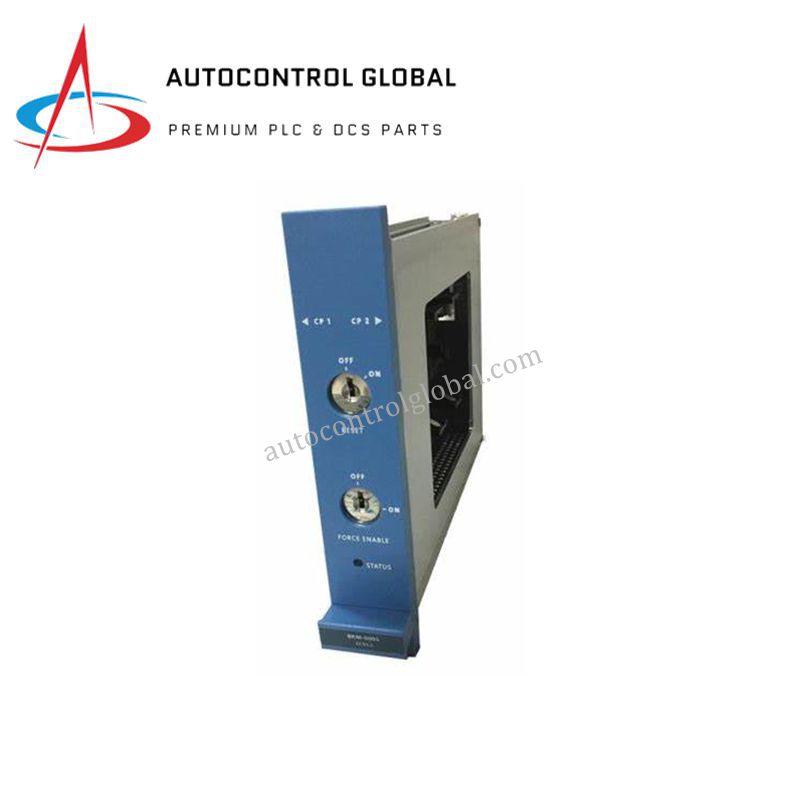

The Honeywell FC-BKM-001 integrates backup battery functionality with a manual key switch, ensuring uninterrupted operation during power failures.
It allows authorized personnel to switch system modes securely in Honeywell Safety Manager and Experion control systems.
Its compact, robust design ensures reliability in safety-critical industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | FC-BKM-001 |
| Product Type | Battery and Key Switch Module |
| Battery Type | Lithium-thionyl chloride (SAFT LS14500CFG) |
| Battery Voltage | 3.6 V |
| Battery Capacity | > 2 Ah |
| Backup Duration | Up to 10 hours |
| Key Switch Function | Manual mode switching and system access control |
| Operating Temperature | −5°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Dimensions (W × H × D) | 176 mm × 35.2 mm × 212 mm |
| Weight | 0.5 kg |
| Relative Humidity | 10–95% non-condensing |
| Supply Voltage (24 V) | 24 Vdc –15%—+30% |
| Supply Current (24 V) | Max 20 mA, typical 7 mA |
| Supply Voltage (5 V) | 5 Vdc ±10% |
| Supply Current (5 V) | Max 10 mA |
| Output Voltage | 14–31 Vdc |
| Output Resistance | 2 × 1.1 kΩ (parallel) |
| Short Circuit Proof | Continuous |
| Certifications | CE, TUV, UL508, CSA, FM |
| Condition | Brand new and in stock |
| Shipping Weight | 2 kg |
| Country of Origin | USA |
FAQs
Q1: Is the Honeywell FC-BKM-001 brand new?
Yes, it is full new, original Honeywell, and available in stock.
Q2: What is the battery backup duration?
The module supports up to 10 hours of backup power.
Q3: Can it operate in extreme temperatures?
Yes, it operates from −5°C to +70°C and stores safely from −40°C to +85°C.
Q4: What type of battery does it use?
It uses a 3.6 V Lithium-thionyl chloride battery (SAFT LS14500CFG).
Q5: How is shipping handled?
We ship via FEDEX, DHL, or other reliable logistics depending on order size.
