Honeywell 51304672-100 | PLC Analog Output Module for Experion PKS
Manufacturer: Honeywell
-
Part Number: 51304672-100
Condition：New with Original Package
Product Type: PLC Analog Output Module for Experion PKS
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

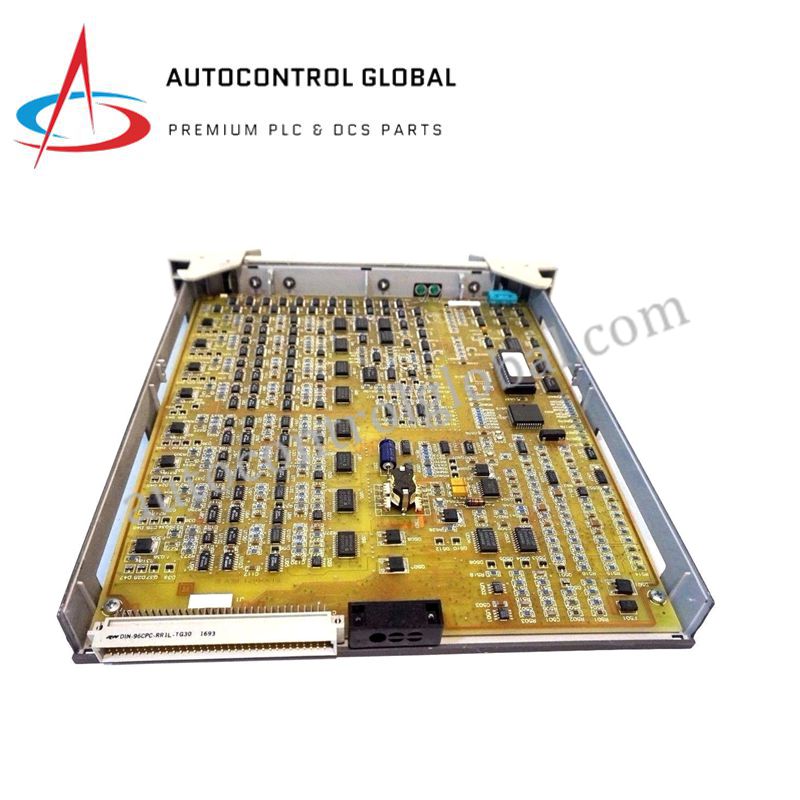

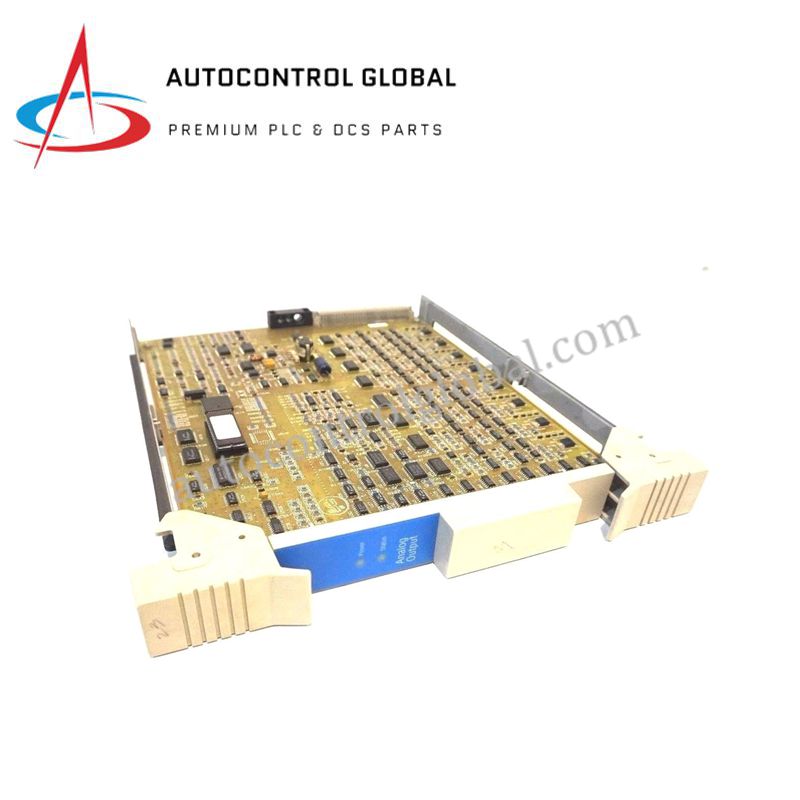

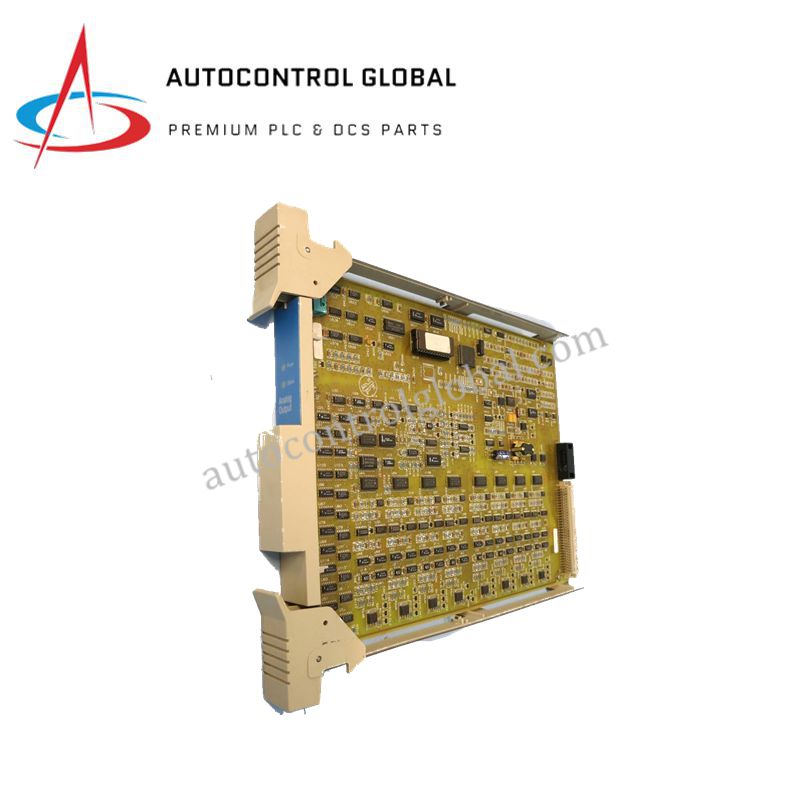

Honeywell 51304672-100 Analog Output Module
The Honeywell 51304672-100 is a high-performance Analog Output Module engineered for Honeywell’s Experion PKS and TDC 3000 control systems. It converts digital control commands into precise analog outputs, including voltage or current, to drive actuators, valves, and variable-speed drives.
This module is designed for closed-loop control applications, maintaining process stability and operational safety. Its high-resolution DACs ensure accurate signal generation, while channel-to-channel and channel-to-ground isolation maintains robust signal integrity.
The 51304672-100 also features built-in diagnostics to monitor output status and detect faults, enhancing reliability in critical industrial environments. Rack-mounted integration ensures seamless deployment in Honeywell’s I/O architecture.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 51304672-100 |
| Type | Analog Output Module |
| Function | Converts digital signals to analog voltage or current |
| Output Channels | Multi-channel (exact configuration may vary) |
| Signal Types Supported | 0–10 V, ±10 V, 4–20 mA (depending on configuration) |
| Resolution | High-resolution DAC for precise output |
| Accuracy | ±0.1% of full scale (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Diagnostics | Fault detection and output monitoring |
| Mounting Type | Rack-mounted within Honeywell I/O chassis |
| Operating Temperature | –20°C to +60°C (–4°F to +140°F) |
| Certifications | CE, UL, RoHS compliant |
FAQ
Q1: Is the Honeywell 51304672-100 still available?
A1: This module is discontinued by Honeywell, but we supply Radwell-tested units with a 2-year warranty.
Q2: What type of outputs does this module provide?
A2: It provides analog voltage or current outputs, supporting 0–10 V, ±10 V, or 4–20 mA signals.
Q3: How accurate are the analog outputs?
A3: The module offers ±0.1% full-scale accuracy with high-resolution DACs for precise control.
Q4: Is it suitable for rack-mounted installations?
A4: Yes, the 51304672-100 is designed for rack-mounted Honeywell I/O chassis, integrating seamlessly with Experion PKS and TDC 3000 systems.
Q5: Does it have built-in diagnostics?
A5: Yes, it includes fault detection and output monitoring to ensure reliable operation in industrial environments.
