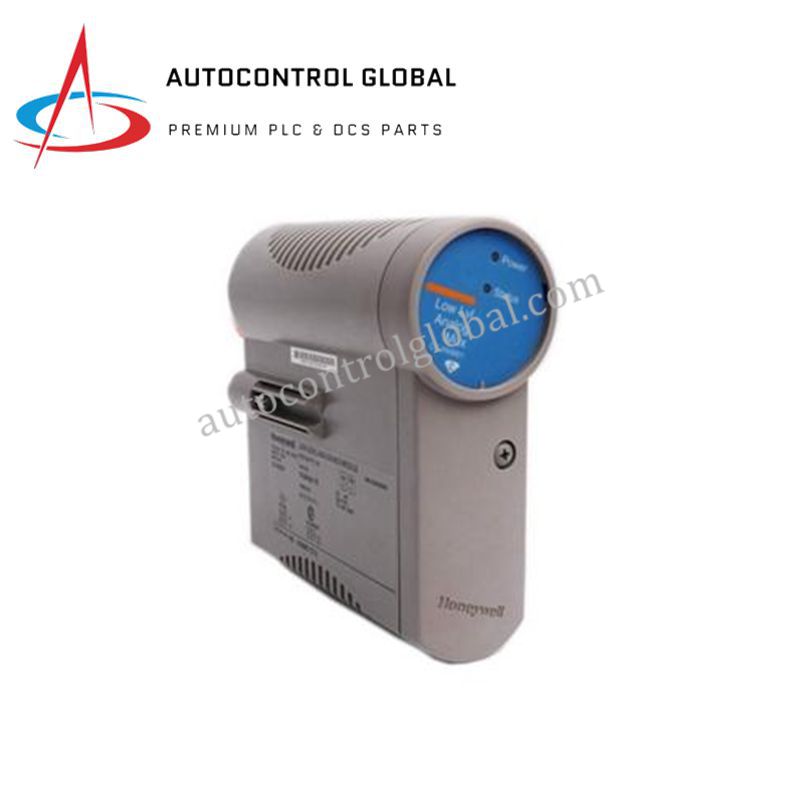

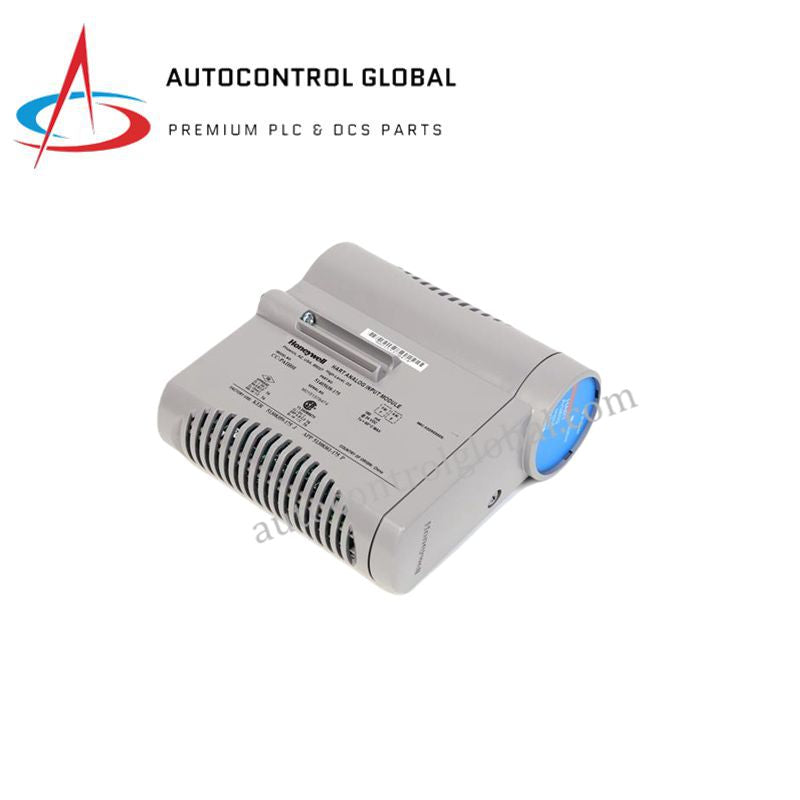

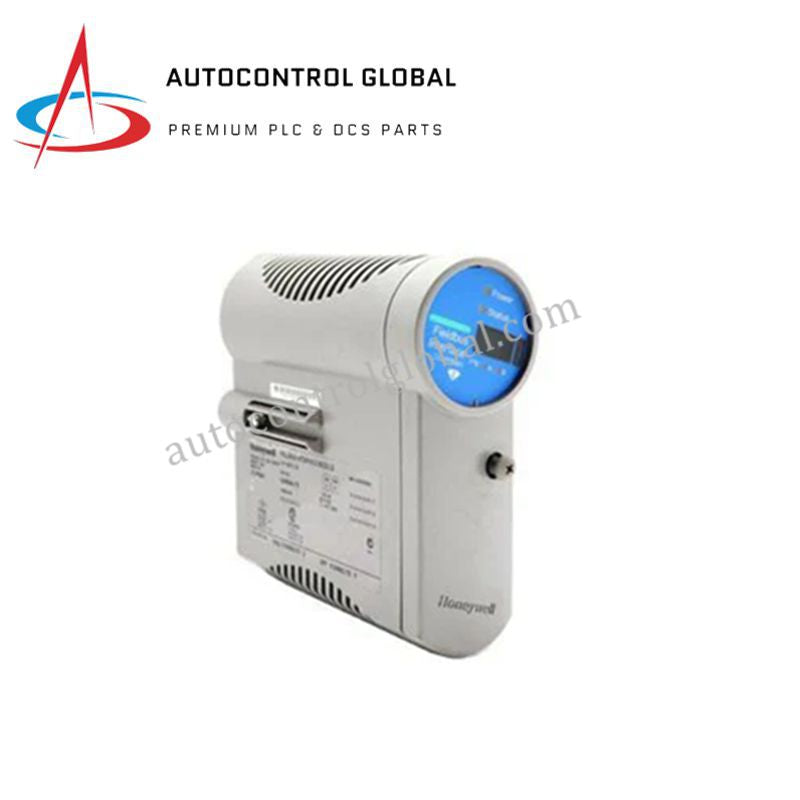

Honeywell CC-PAIH02 51405038-375 Analog Input Module

The Honeywell CC-PAIH02 51405038-375 is a high-performance analog input module engineered for industrial automation and process control systems. Compatible with Honeywell Experion PKS Series C distributed control systems, this module accurately collects signals from a wide range of field transmitters and sensors. Moreover, its modular design supports redundant configurations and industrial-grade protection, ensuring reliable operation in critical environments.

With 16 analog input channels, the CC-PAIH02 accommodates 4–20 mA, 0–10 V, and RTD/thermocouple signals. In addition, HART protocol support enables seamless integration with smart transmitters, providing real-time diagnostics and enhanced process control. Its robust 16-bit resolution ensures precise measurements, while channel-to-channel isolation enhances system safety.

Technical Specifications

Model: CC-PAIH02
Part Number: 51405038-375
Type: Analog Input Module (AI)
System Compatibility: Honeywell Experion PKS Series C
Number of Channels: 16 analog input channels
Signal Types Supported: 4–20 mA, 0–10 V, RTD/thermocouple inputs
Accuracy: ±0.1% of full scale (typical)
Resolution: 16-bit A/D conversion
Isolation: Channel-to-channel and channel-to-system
Sampling Rate: Configurable, typically 10–100 Hz
Diagnostics: Built-in self-diagnostics and LED status indicators
Communication: Supports HART protocol for smart transmitter integration
Operating Voltage: Powered via Series C chassis backplane
Dimensions: 267 × 178 × 51 mm
Weight: 0.45 kg
Operating Temperature: –20 °C to +55 °C
Certifications: CE, UL, CSA, TUV

FAQ

Q1: How many analog input channels does the CC-PAIH02 provide?
A1: The module provides 16 analog input channels supporting multiple signal types.

Q2: Is HART protocol supported?
A2: Yes, HART protocol is fully supported for smart transmitter communication.

Q3: Can it operate in harsh industrial environments?
A3: Yes, it features industrial-grade protection and channel-to-channel isolation.

Q4: What is the module's accuracy?
A4: It provides ±0.1% of full scale accuracy for precise measurements.

Q5: Is the module compatible with redundant configurations?
A5: Yes, it supports redundant configurations within the Series C chassis.
