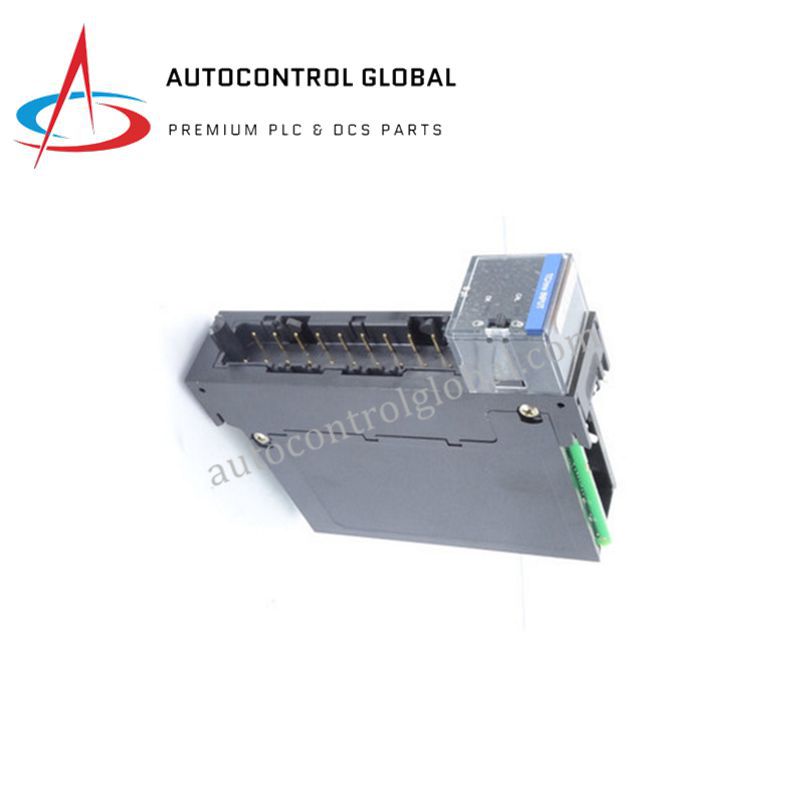

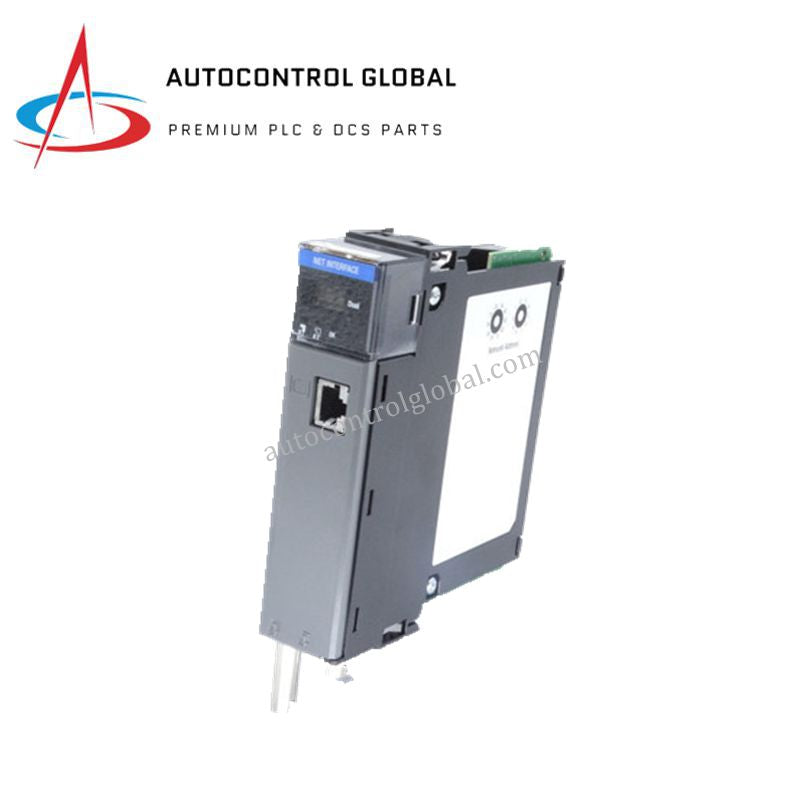

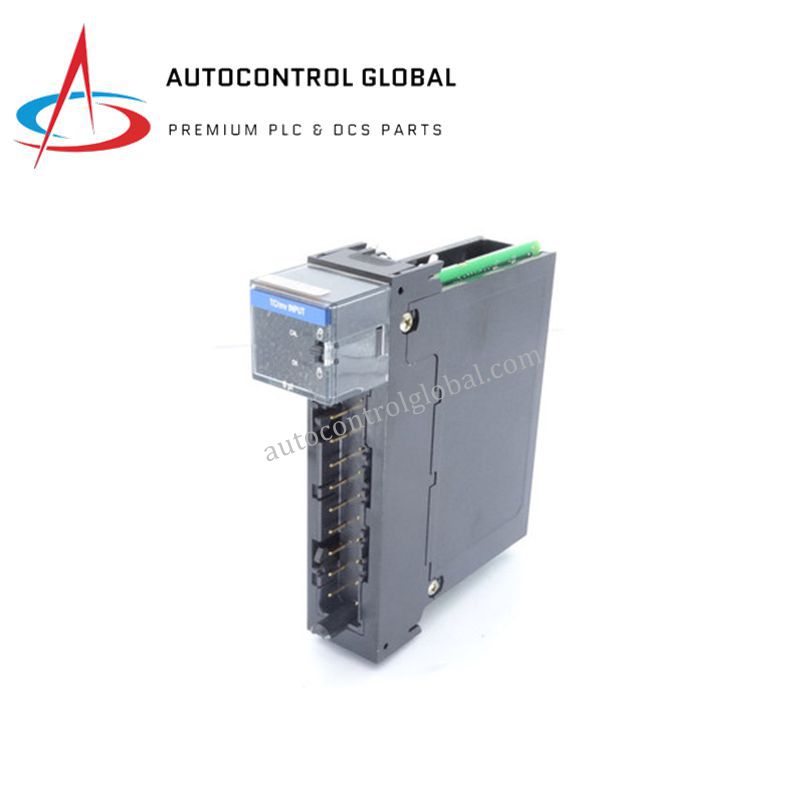

Honeywell TC-IDK161 PLC Module | Isolated AC Input 16CH
Manufacturer: Honeywell
-
Part Number: TC-IDK161
Condition：New with Original Package
Product Type: AC Digital Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Honeywell TC-IDK161 | 16-Channel AC Digital Input Module
Product Description
The Honeywell TC-IDK161 is an AC Digital Input Module built for precise signal interfacing in Experion PKS and TPS control systems. It supports 16 isolated input channels, each capable of receiving 110–240 VAC signals at 50/60 Hz, allowing stable integration with industrial sensors, relays, and contactors.
Engineered for high reliability, the TC-IDK161 provides full electrical isolation between field inputs and logic circuits, improving safety and reducing electrical noise interference. Each input features an LED status indicator for easy monitoring, while the integrated surge protection ensures dependable performance in harsh industrial conditions.
Compact and durable, the TC-IDK161 supports both DIN rail and panel mounting, with a lightweight design that simplifies cabinet installation. Its robust construction, wide operating temperature range, and low power consumption make it an ideal solution for AC signal acquisition in mission-critical automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TC-IDK161 |
| Manufacturer | Honeywell |
| Product Type | AC Digital Input Module |
| Input Channels | 16 independent AC input channels |
| Input Voltage Range | 110–240 VAC ±10% |
| Input Frequency | 50 / 60 Hz |
| Input Current | Approx. 15 mA per channel |
| Logic Side Power | 125 mA @ 5.1 VDC, 3 mA @ 24 VDC |
| Status Indicators | 16 individual LEDs (one per input) |
| Surge Protection | Integrated on each input |
| Mounting Type | DIN rail or panel mount |
| Dimensions (W × H × D) | 35 mm × 140 mm × 145 mm |
| Weight | 0.2 kg |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| System Compatibility | Honeywell Experion PKS, TPS |
| Certifications | CE, RoHS |
| Country of Origin | USA |
FAQ
Q1: How many inputs does the Honeywell TC-IDK161 support?
A1: The TC-IDK161 supports 16 independent AC input channels for wide-ranging monitoring tasks.
Q2: What voltage and frequency ranges are supported?
A2: It operates within 110–240 VAC ±10% and supports both 50 Hz and 60 Hz frequencies.
Q3: Does each channel include isolation?
A3: Yes, all 16 channels are electrically isolated from each other and the system for added safety.
Q4: How can I monitor the input status?
A4: Each input channel has an LED indicator, allowing instant visual status verification.
Q5: What are the delivery and warranty conditions?
A5: All modules are brand new and original, in stock, and typically ship via DHL or FedEx within 3–14 days, depending on order size.
We offer a 30-day return policy for quality-related issues.
